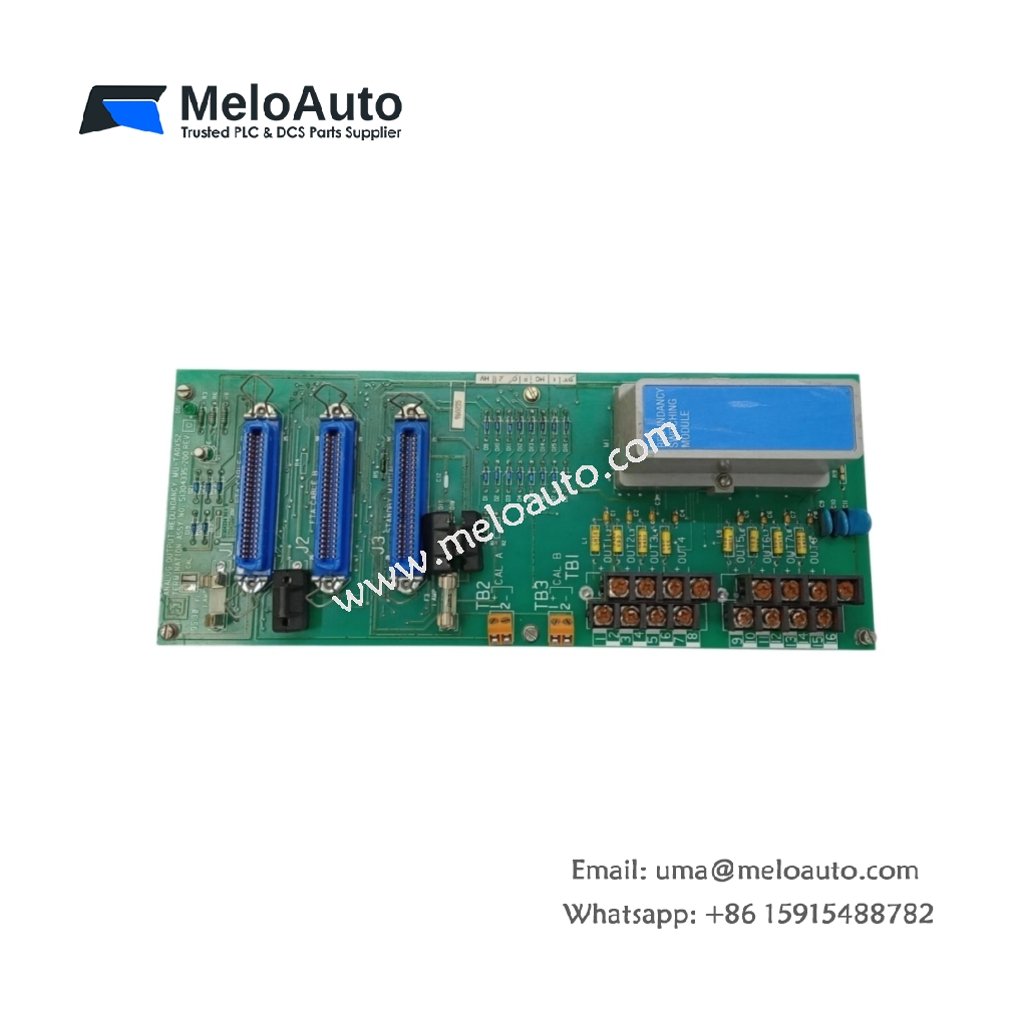

Honeywell 51304335-200 MU-TAOX52 Redundancy Switching Module

This dedicated redundancy module provides automatic switchover for critical analog output loops in Honeywell control systems. The Honeywell 51304335-200 MU-TAOX52 manages two independent 4-20 mA output channels with seamless transfer during primary failures. Its failsafe design ensures uninterrupted control signals for safety-related and production-critical process applications.

Key Technical Specifications

Redundancy Architecture and Switchover Logic

The Honeywell 51304335-200 MU-TAOX52 houses two complete output driver circuits that operate in active/standby configuration. Its solid-state switching mechanism engages the backup channel within 50 ms of detecting a primary channel fault. This rapid transfer ensures no control gap for critical final control elements like valves and dampers. Furthermore, the module continuously monitors both channels and reports active status to the host controller.

Output Management and Diagnostic Capabilities

This redundancy module provides comprehensive diagnostics including open-circuit detection, overcurrent monitoring, and internal power supply verification. It continuously validates loop integrity by measuring current flow in both the active and standby channels. The module automatically initiates switchover when it detects output deviations beyond acceptable thresholds. Consequently, the Honeywell 51304335-200 MU-TAOX52 enables predictive maintenance by reporting degradation trends before complete failures occur.

Mechanical Design and System Integration

The Honeywell 51304335-200 MU-TAOX52 fits standard Experion PKS and TDC 3000 rack slots with its 180 mm width and 230 mm height. Its 0.71 kg weight ensures stable installation within the chassis without additional support brackets. A removable screw terminal block accepts 28 to 12 AWG field wiring, simplifying connections and future maintenance. LED indicators on the faceplate display active channel status, fault conditions, and overall module health.

Isolation Performance and Electrical Protection

This redundancy module provides 1,500 V AC isolation between output channels and the system backplane. Galvanic isolation protects the controller from voltage transients generated by inductive loads in the field. The design also incorporates transient suppression to withstand surge events common in industrial power distribution. Moreover, the module protects against reverse polarity and overvoltage conditions without damage.

Power Efficiency and Environmental Tolerance

This module draws 110 mA from the 24 V DC backplane supply during normal operation. Its 0 °C to 60 °C operating temperature range supports standard process control environments without derating. An IP20 protection rating requires enclosure mounting but permits convenient front-panel access for status verification. The module dissipates heat efficiently through its aluminum housing without requiring forced-air cooling.

Application Domains and Safety Significance

The Honeywell 51304335-200 MU-TAOX52 serves critical process loops requiring high availability in refinery, chemical, and power generation applications. It supports burner management systems, reactor temperature controls, and emergency shutdown valves with failsafe requirements. Consequently, this redundancy module ensures uninterrupted control for safety-related and production-critical functions in continuous process industries.
