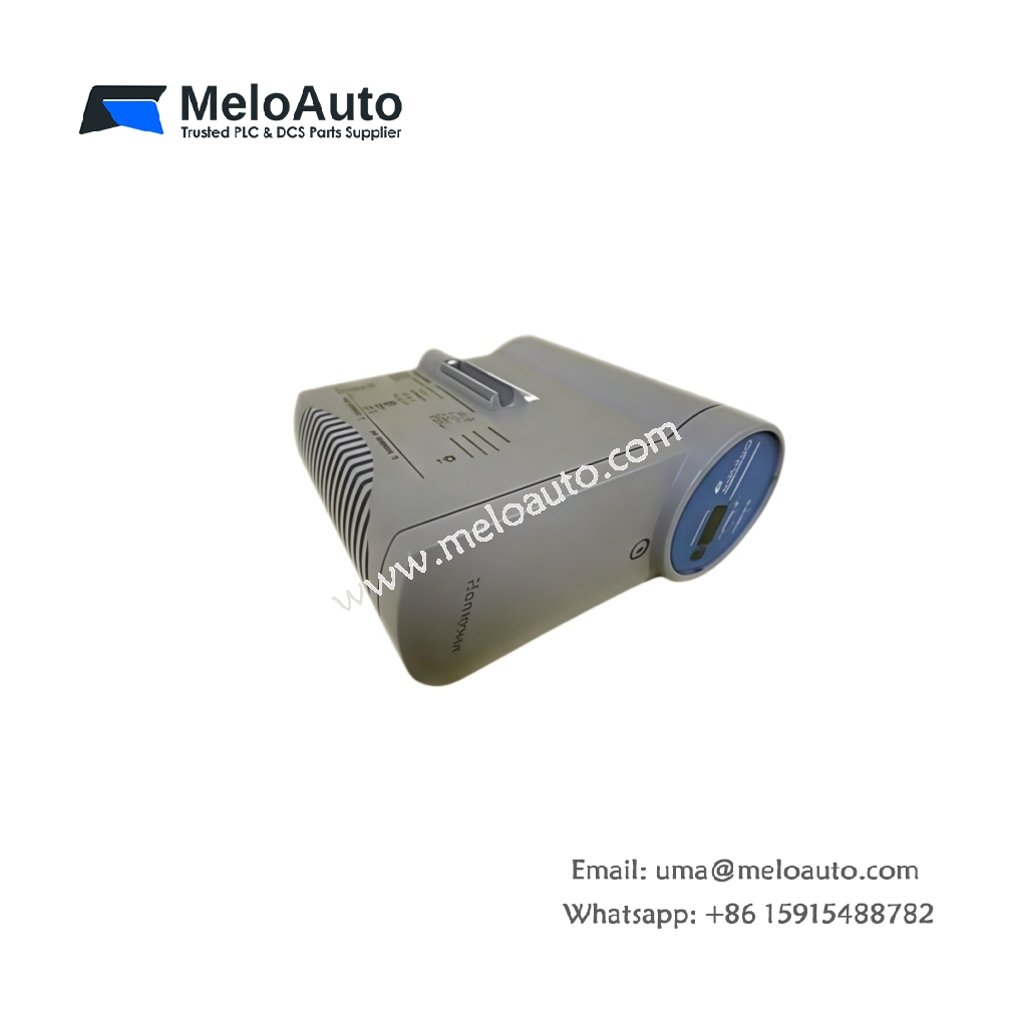

Honeywell MU-CULF01 ControlNet Interface

This dedicated network interface module connects Honeywell control systems to ControlNet industrial networks. The Honeywell MU-CULF01 provides a robust communication link between Experion PKS controllers and remote I/O chassis. Its deterministic protocol support ensures reliable data exchange for time-critical process automation applications.

Key Technical Specifications

Parameter	Details
Model	Honeywell MU-CULF01
Product Type	ControlNet Interface Module / Network Adapter
Dimensions (W x H x D)	180 mm x 230 mm x 30 mm
Weight	0.69 kg
Network Interface	ControlNet coaxial (BNC connector)
Data Transfer Rate	5 Mbps (fixed)
Protocol Support	ControlNet (CIP over ControlNet)
Maximum Nodes per Network	99 nodes
Network Length	Up to 1,000 m (coaxial, with repeaters)
Scheduled Data Capacity	Up to 512 bytes input + 512 bytes output
Unscheduled Data Capacity	Up to 2,048 bytes (message-based)
Scan Time	5 ms minimum (configurable)
Bus Interface	Experion PKS or TDC 3000 backplane connector
Power Consumption	85 mA at 24 V DC (from backplane)
Operating Temperature	0 °C to +60 °C
Protection Class	IP20
Diagnostics	LED indicators for network status, activity, and module health

Network Architecture and Protocol Support

The Honeywell MU-CULF01 interfaces with ControlNet networks using standard coaxial cable and BNC connectors. Its 5 Mbps fixed data transfer rate provides deterministic communication for time-critical control applications. The module supports both scheduled and unscheduled messaging, accommodating real-time I/O updates and configuration data. Moreover, a 5 ms minimum scan time enables rapid data exchange for demanding process loops.

Mechanical Construction and Rack Integration

This ControlNet interface module fits standard Experion PKS and TDC 3000 rack slots with its 180 mm width and 230 mm height. Its 0.69 kg weight ensures stable installation within the chassis without additional support hardware. The BNC connector resides on the front panel for convenient network cable attachment and strain relief. LED indicators provide immediate visual feedback on network status, activity, and module health for quick diagnostics.

Network Performance and Deterministic Operation

The Honeywell MU-CULF01 supports up to 99 nodes per network, accommodating medium to large distributed control architectures. Its scheduled data capacity handles 512 bytes of input and output data for process I/O communication. The module also manages up to 2,048 bytes of unscheduled data for messaging and configuration tasks. Furthermore, the deterministic ControlNet protocol ensures predictable update times regardless of network loading.

Configuration and Engineering Integration

This module configures through Honeywell engineering tools for straightforward network parameter setting. Users can assign node addresses, set scan times, and map I/O data through the system configuration interface. The Honeywell MU-CULF01 stores all settings in non-volatile memory, preserving them through power cycles. Consequently, engineers can deploy and commission modules rapidly without complex setup procedures.

Power Consumption and Environmental Performance

This interface module draws 85 mA from the 24 V DC backplane supply during normal operation. Its 0 °C to 60 °C operating range accommodates standard control room and process area environments. An IP20 protection rating requires enclosure mounting but permits convenient front-panel access for cable inspection. The module dissipates heat efficiently through its metal housing without requiring forced-air cooling.

System Integration and Application Domains

The Honeywell MU-CULF01 connects Experion PKS controllers to remote I/O racks, drives, and third-party ControlNet devices. It integrates seamlessly with Honeywell’s total automation solutions for unified network management. Consequently, this ControlNet interface serves refining operations, chemical plants, power generation, and pipeline monitoring systems effectively.
