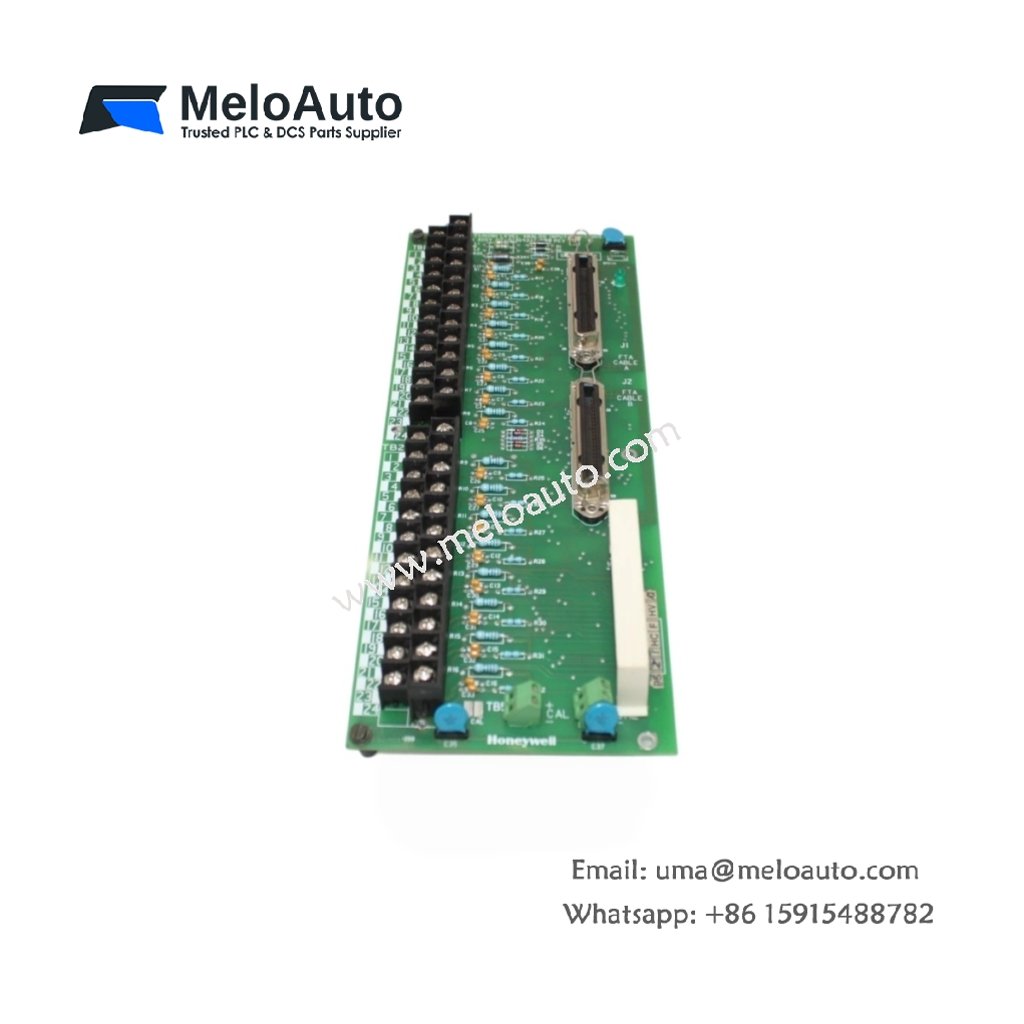

Honeywell MU-TAIH52 51304337-200 Analog Input Module

This high-density analog input module captures process variables from smart transmitters in Honeywell distributed control systems. The Honeywell MU-TAIH52 51304337-200 provides sixteen isolated channels that simultaneously read 4-20 mA signals and support HART digital communication. Its dual-function design reduces wiring complexity while enabling advanced instrument diagnostics and predictive maintenance.

Key Technical Specifications

Dual-Function Input Architecture

The Honeywell MU-TAIH52 51304337-200 simultaneously captures 4-20 mA process values and HART digital data from smart field devices. Its 15-bit resolution delivers high-accuracy measurements for critical pressure, temperature, flow, and level applications. A 100 ms sequential scan rate ensures timely updates for all sixteen channels without overloading system resources. Furthermore, the module supports HART commands for device configuration, calibration, and diagnostic data retrieval.

Channel Isolation and Signal Integrity

This analog input module offers 1,500 V AC isolation between each channel and between channels and the system bus. Individual channel isolation prevents ground loop errors that commonly affect large distributed installations. A precision 250 Ω resistor provides optimal load impedance for loop-powered transmitters while maintaining HART signal quality. The ±0.1 % accuracy and ±50 ppm/°C temperature drift ensure stable, repeatable measurements across varying environmental conditions.

HART Communication and Device Integration

The Honeywell MU-TAIH52 51304337-200 supports bidirectional HART communication for accessing instrument variables and diagnostic information. Users can retrieve transmitter calibration data, sensor temperature, loop current, and device status through the digital overlay. The module also forwards HART commands from engineering tools for remote configuration of field devices. Consequently, maintenance teams can perform instrument checks without physical access to the field location.

Mechanical Design and Rack Installation

The Honeywell MU-TAIH52 51304337-200 fits standard Experion PKS and TDC 3000 chassis with its 180 mm width and 230 mm height. Its 0.76 kg weight ensures stable mechanical loading across backplane connectors. A removable screw terminal block accepts 28 to 12 AWG field wiring, simplifying cable terminations and maintenance replacements. LED indicators on the faceplate display channel status, HART communication activity, and overall module health.

Power Consumption and Environmental Suitability

This module draws 120 mA from the 24 V DC backplane supply, reflecting its dual processing capabilities for analog and HART data. Its 0 °C to 60 °C operating range accommodates standard control rooms and process areas without derating. An IP20 protection rating requires enclosure mounting but permits convenient front-panel access for wiring inspection. The module dissipates heat efficiently through its metal housing without requiring forced-air cooling.

System Integration and Application Domains

The Honeywell MU-TAIH52 51304337-200 interfaces seamlessly with Experion PKS and TDC 3000 controllers through the dedicated backplane bus. It integrates with Honeywell engineering tools for unified management of analog and HART data. Consequently, this high-density analog module serves oil and gas production, chemical processing, power generation, and pharmaceutical manufacturing applications effectively.
