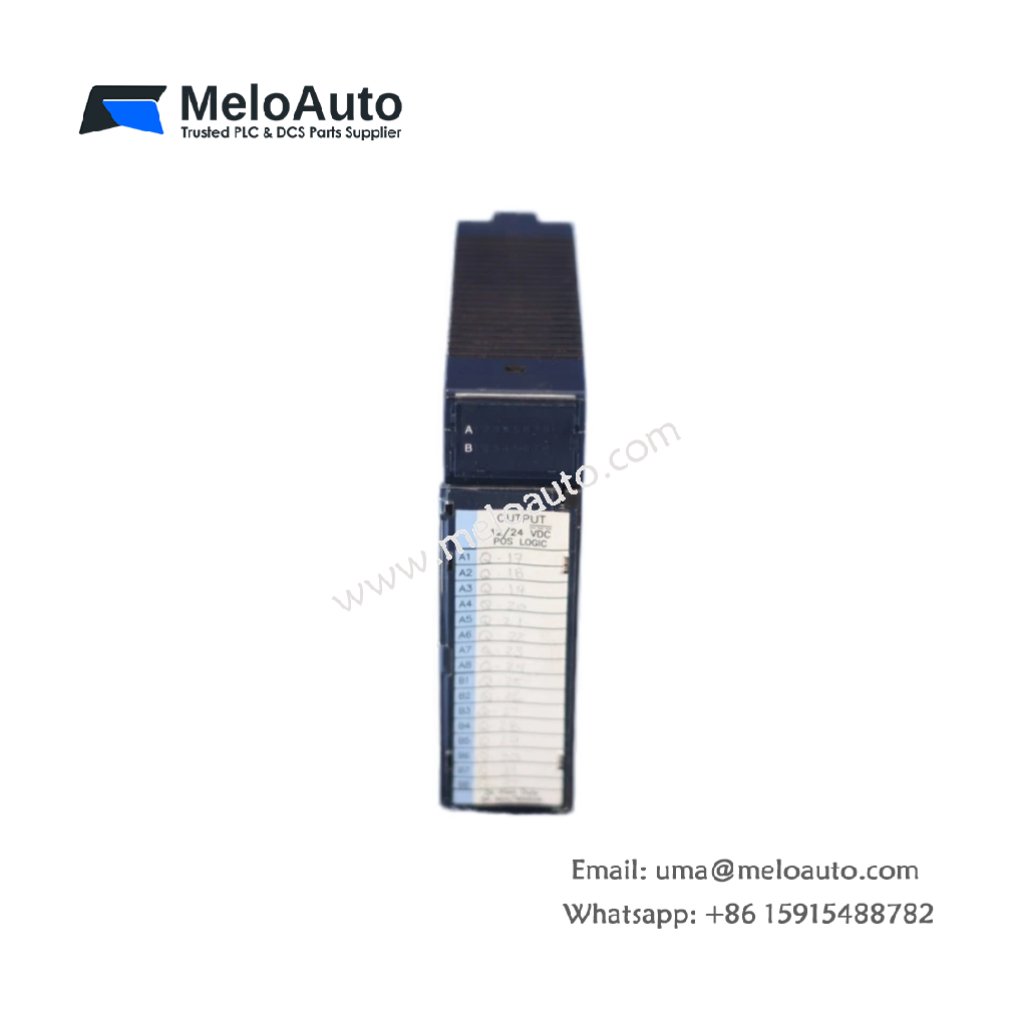

GE IC693MDL740K Output Module | 6 Channel 2A 24V DC

This DC output module drives high-current field loads for Series 90-30 PLC systems. It provides six discrete outputs for controlling motors and large solenoids. You will install this module in any I/O slot of the main rack.

Key Technical Specifications

The IC693MDL740K delivers six positive-logic outputs at 24V DC. Each output channel handles up to 2.0A of continuous current. The module also includes individual channel fuses for short-circuit protection.

Parameter	Technical Data
Product Type	Series 90-30 High-Current DC Output Module
Output Channels	6 positive-logic (sourcing)
Output Voltage Range	12-24V DC
Output Current	2.0A per channel maximum
Total Current	8A per common (4A per group)
Channel Fusing	6 x 2.5A fast-blow (replaceable)
Response Time	1 ms off-to-on, 2 ms on-to-off
Dimensions (W x H x D)	2.5 cm x 13.6 cm x 12.7 cm
Total Weight	0.3 kg (0.66 lbs)
Terminal Block	1 x 20-position removable
Backplane Connector	24-pin Series 90-30 interface
Output Protection	Transient suppression diodes
LED Indicators	6 green (one per channel)
Onboard Fuses	6 x 2.5A (user-replaceable)
Energy Storage	150 µF decoupling capacitance
Operating Temperature	0°C to 60°C

Hardware Architecture and Output Protection

The IC693MDL740K uses six MOSFET transistors for high-current switching. Each transistor includes a transient suppression diode across its terminals. Six replaceable 2.5A fuses protect each output channel individually. Six green LEDs illuminate when the corresponding output becomes active.

Interface and Connectivity

One 20-position removable terminal block connects output wiring to field devices. Each output channel has dedicated positive and common terminals. A 24-pin backplane interface receives control commands from the CPU. The module groups outputs into two commons of three channels each.

Practical Installation Notes

Install this output module in any I/O slot of a Series 90-30 rack. The IC693MDL740K requires an external 24V DC supply for output power. Always install a flyback diode across inductive loads like large relays. Replace blown fuses only with identical 2.5A fast-blow types.
