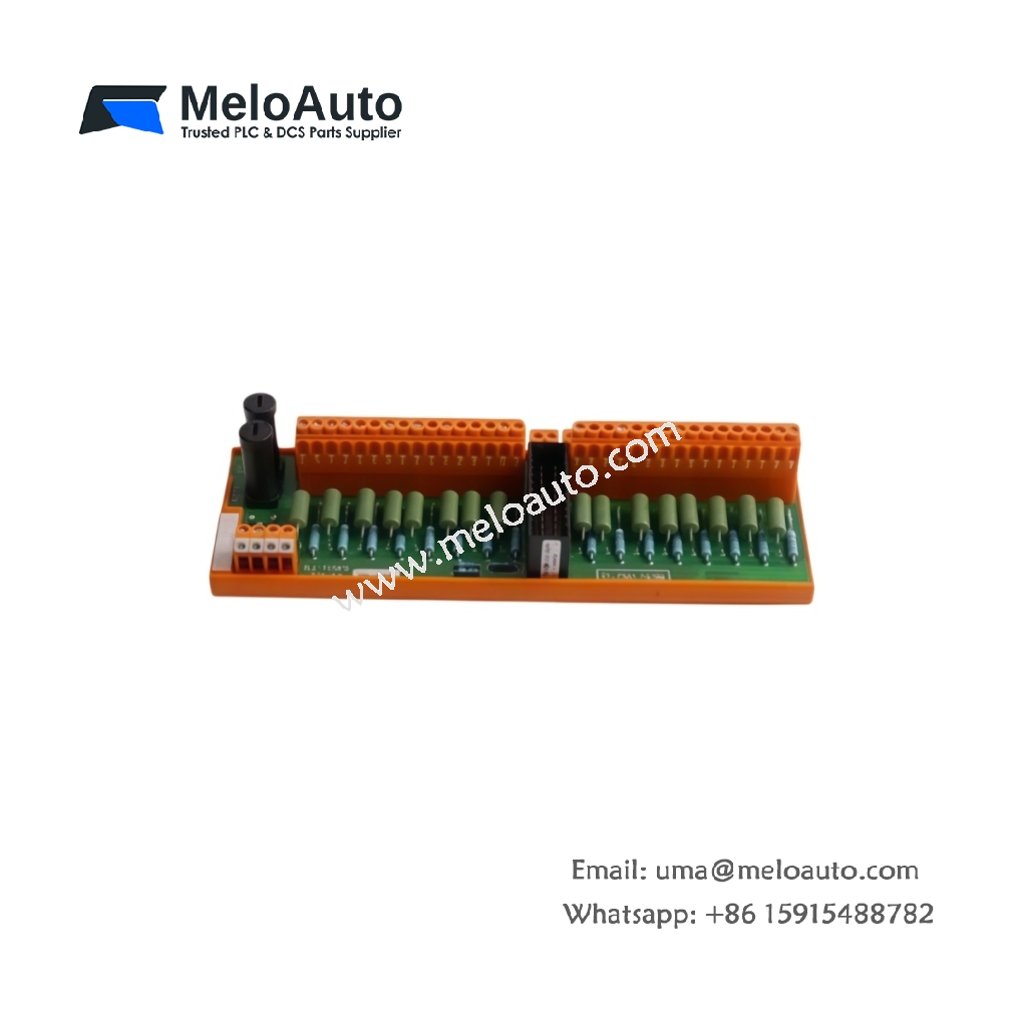

Honeywell FC-TSDI-16115 Safe Digital Input Termination

16-Channel Field Termination for Safety Digital Inputs

The Honeywell FC-TSDI-16115 safe digital input termination assembly provides field wiring termination for 16 digital input channels. This assembly connects field sensors and switches to Honeywell Safety Manager digital input modules. It serves as the interface between process field devices and the safety logic solver. The assembly supports emergency shutdown and fire and gas applications.

Technical Specifications

Parameter	Specification
Model Number	FC-TSDI-16115
Brand	Honeywell
Category	Safe Digital Input Termination Assembly
Channels	16 digital inputs
Input Types	Dry contact or proximity switch
Termination Type	Screw terminals
Input Voltage	24 VDC nominal
Power Supply	24 VDC from system
Isolation	1500 VAC
Operating Temperature	0°C to +60°C
Storage Temperature	-40°C to +85°C
Dimensions (HxWxD)	240 x 120 x 80 mm
Weight	1.10 kg
Mounting	DIN-rail or panel
Country of Origin	Malaysia

Comprehensive Field Wiring Interface

This assembly terminates field wiring for up to 16 digital input channels. Screw terminals accept solid and stranded conductors from 0.5 to 2.5 mm². Each channel includes clear labeling for straightforward identification during installation. Consequently, technicians can complete field connections quickly and accurately.

Flexible Input Configuration

The assembly accepts both dry contact and proximity switch input types. Each channel operates independently with programmable input parameters. You can configure each input for normally open or normally closed operation. This flexibility enables standardized assembly usage across different safety applications.

Module Integration

The assembly interfaces directly with Honeywell Safety Manager digital input modules. A ribbon cable connects the termination assembly to the I/O module. This modular design simplifies installation and maintenance procedures significantly. Moreover, you can replace modules without rewiring field connections.

Robust Mechanical Design

The assembly features a durable housing that protects terminal connections effectively. DIN-rail mounting simplifies installation in standard industrial cabinets. The assembly occupies minimal panel space at 240 x 120 x 80 mm. Additionally, the sturdy construction withstands vibration and shock in plant environments.

Safety System Support

This termination assembly supports SIL 3 safety applications in process plants. It provides reliable connections for emergency shutdown and fire and gas systems. The assembly meets stringent safety standards for critical protection functions. Consequently, operators can trust this assembly for their most demanding safety applications.

Maintenance and Troubleshooting

Individual channel labeling simplifies identification during maintenance and troubleshooting. Test points on each channel enable signal verification without removing wires. The assembly design allows hot-swapping of connected I/O modules. This feature minimizes downtime during module replacement procedures.
