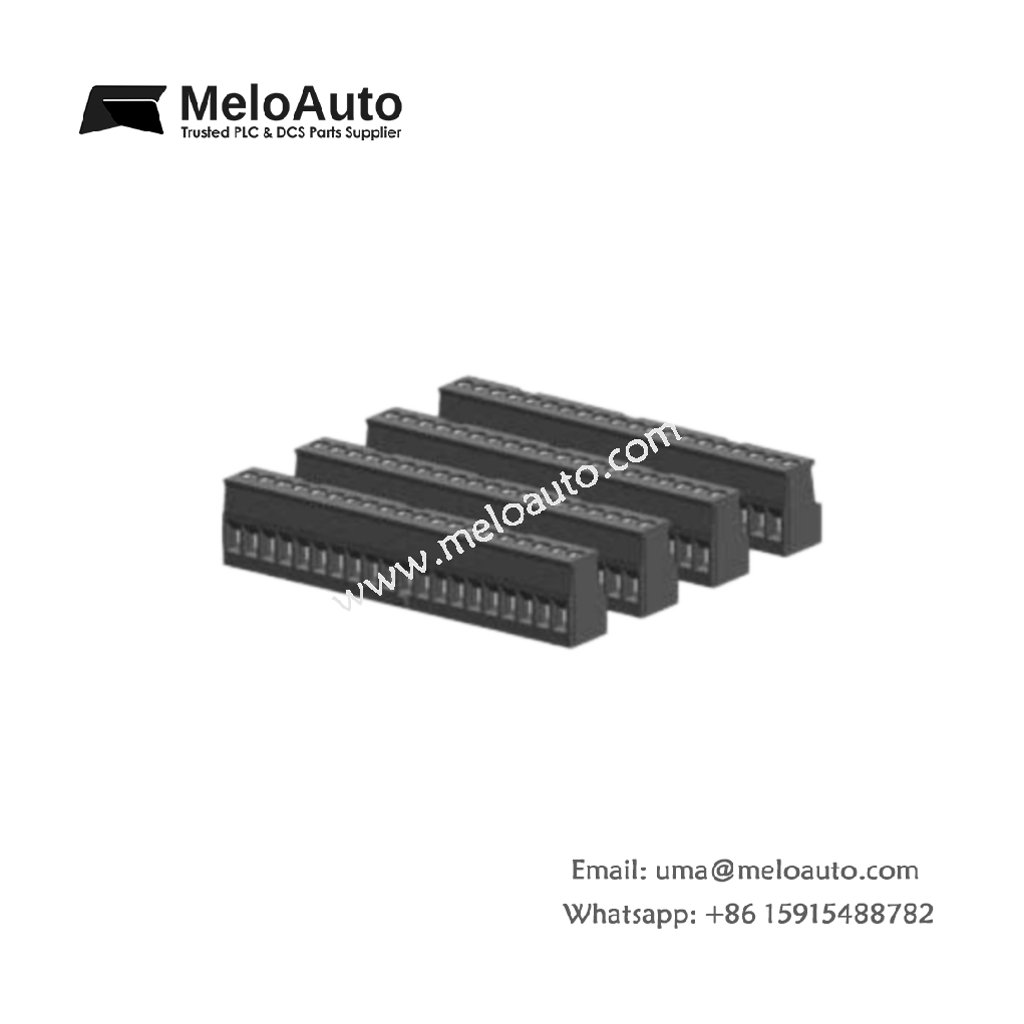

Siemens 6ES7292-1AV40-0XA0 Terminal Block

The Siemens 6ES7292-1AV40-0XA0 serves as a pre-wired I/O terminal block for SIMATIC S7-1200 signal modules. This connector simplifies field wiring by providing screw-cage terminals for all I/O points. The unit enables quick module replacement without rewiring the field cables.

Technical Specifications

Parameter	Specification
Product Type	I/O terminal block (connector)
Compatibility	SIMATIC S7-1200 (signal modules)
Number of Terminals	10 positions (screw-cage)
Wire Gauge	0.5 mm² to 2.5 mm² (solid/stranded)
Terminal Type	Screw-cage (rising clamp)
Connector Orientation	Front-facing (plug-in)
Color Coding	Gray housing, white terminal markers
Dimensions (W x H x D)	55 x 35 x 20 mm
Weight	0.05 kg
Internal Components	10 x brass terminals, 1 x connector housing (PC)
Contact Material	Brass (tin-plated)
Voltage Rating	24V DC (per terminal)
Current Rating	10A (maximum per terminal)
Insulation Material	Polycarbonate (UL 94 V-0)
Wire Stripping Length	8–9 mm (recommended)
Screw Torque	0.5–0.6 Nm
Operating Temperature	-20°C to +70°C
Storage Temperature	-40°C to +85°C
Protection Class	IP20
Approvals	CE, UL, CSA

Pre-Wired Connector for Quick Module Replacement

The Siemens 6ES7292-1AV40-0XA0 allows users to pre-wire the I/O cables before module installation. This pre-wiring capability reduces system downtime during maintenance and upgrades. Users can disconnect and reconnect the terminal block without touching individual wires. The plug-in design ensures secure and reliable connections.

Screw-Cage Terminals for Secure Field Wiring

Ten screw-cage terminals accept solid or stranded wires from 0.5 mm² to 2.5 mm². Rising clamp design ensures vibration-resistant connections for industrial environments. Each terminal provides a wide contact surface for low resistance and reliable current flow. Users can terminate wires quickly with standard screwdrivers.

Compact Front-Facing Design for Easy Access

The terminal block measures only 55 x 35 x 20 mm for space-efficient installation. Front-facing connectors provide easy access for wiring and testing. The compact design maintains the S7-1200 module’s slim footprint. Users can install the block without interfering with adjacent modules.

Color-Coded Housing for Clear Identification

Gray housing with white terminal markers enables clear identification of each connection point. Users can apply custom labels for signal names and wire numbers. This identification simplifies troubleshooting and maintenance procedures. The terminal block’s design reduces the risk of wiring errors.

Durable Construction for Long Service Life

Brass terminals with tin plating provide excellent conductivity and corrosion resistance. Polycarbonate insulation meets UL 94 V-0 flammability requirements for safety. The connector housing withstands vibration, shock, and temperature extremes. Users can rely on the terminal block for years of trouble-free service.

Wide Compatibility with S7-1200 Signal Modules

This terminal block fits all SIMATIC S7-1200 signal modules with 10-position connectors. Users can use the same block for digital and analog I/O modules. The plug-in interface ensures proper pin alignment with the module’s contacts. Users can mix terminal blocks with different wire configurations as required.
