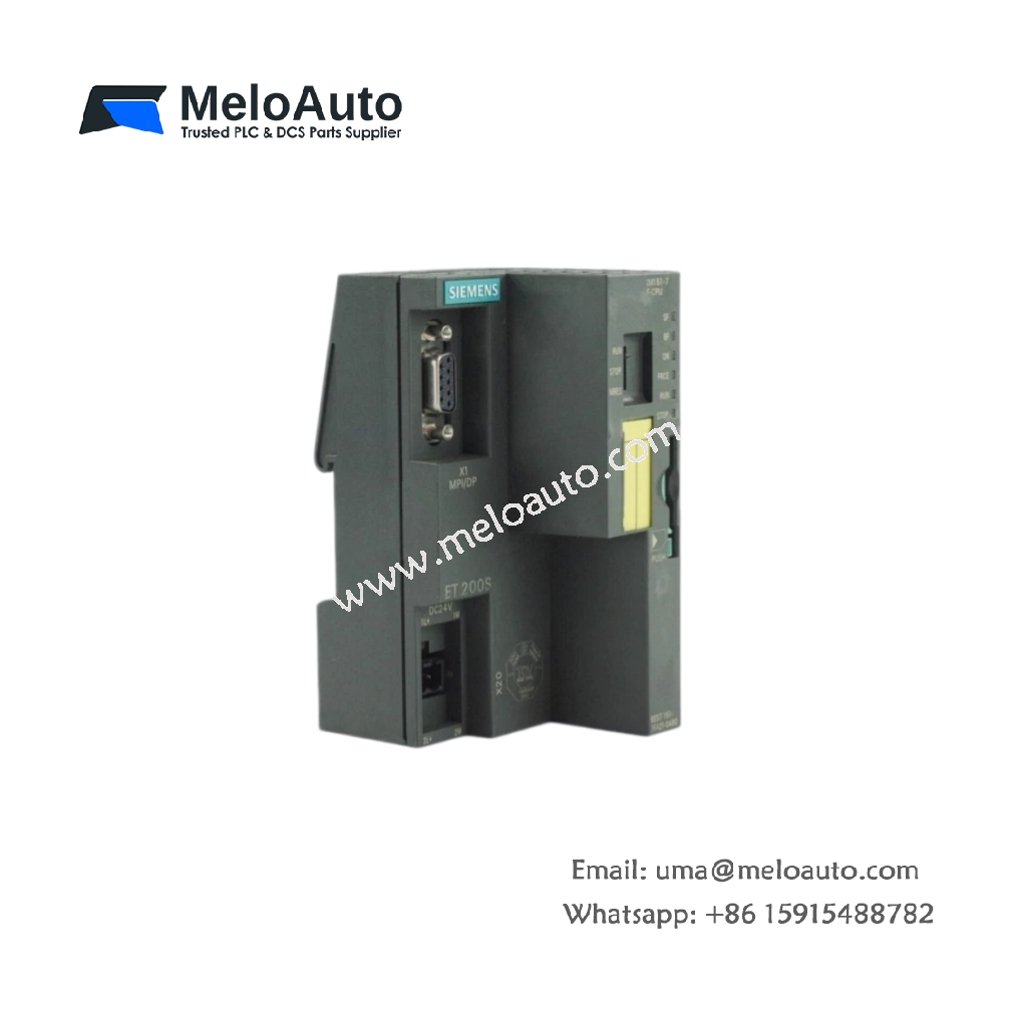

Siemens 6ES7151-7FA21-0AB0 PLC

The Siemens 6ES7151-7FA21-0AB0 functions as a fail-safe programmable logic controller for the ET 200S system. This PLC executes safety-related control tasks with SIL 3 certification according to IEC 61508. The unit combines standard automation with integrated safety functions in a single device.

Technical Specifications

Parameter	Specification
Product Type	Fail-safe PLC (IM 151-7 F-CPU)
Compatibility	SIMATIC ET 200S
Safety Certification	SIL 3 (IEC 61508), PL e (ISO 13849)
Program Memory	128 KB (integrated)
Data Memory	64 KB (integrated)
Processing Time (bit)	100 ns (typical)
PROFIBUS Ports	1 x RS-485 (9-pin D-sub)
MPI Port	1 x RS-485 (integrated)
Work Memory (RAM)	128 KB (program), 64 KB (data)
Load Memory	256 KB (Flash)
Retentive Memory	8 KB (battery-backed)
Dimensions (W x H x D)	90 x 120 x 40 mm
Weight	0.28 kg
Internal Components	1 x CPU core, 2 x bus controllers, 2 x watchdog timers
Energy Storage	SuperCap (100h, clock backup)
Power Supply	24V DC (from backplane)
Power Consumption	24V / 250 mA (typical)
Operating Temperature	0°C to +60°C
Storage Temperature	-40°C to +85°C
Protection Class	IP20
Mounting	ET 200S base module
Approvals	IEC 61508 (SIL 3), ISO 13849 (PL e), CE, UL, CSA

Certified Fail-Safe Operation for Critical Applications

The Siemens 6ES7151-7FA21-0AB0 meets SIL 3 and PL e safety integrity levels for demanding applications. This certification ensures reliable execution of emergency shutdown and machine guarding functions. The CPU includes two independent monitoring channels for cross-checking critical operations. Users can implement safety programs using standard FBD or LAD programming languages.

Dual Processing for Maximum Safety Integrity

The PLC uses dual-core processing to verify safety-related instructions. Both cores execute the same code and compare results continuously. The module immediately triggers a safe state if it detects discrepancies between the two processors. This redundancy minimizes the risk of undetected faults.

Integrated PROFIBUS DP Communication

The fail-safe controller includes a PROFIBUS DP port for connecting to standard I/O networks. This interface allows the CPU to manage both safety and standard automation tasks. The MPI port provides programming access and additional connectivity. Users can integrate the CPU into existing PROFIBUS installations without modifications.

Comprehensive Memory for Safety Programs

Program memory of 128 KB accommodates complex safety logic and function blocks. Data memory of 64 KB stores safety parameters and process variables. Load memory of 256 KB holds firmware, safety configuration, and project archives. Retentive memory of 8 KB preserves safety-critical values during power loss.

Compact ET 200S Form Factor

The PLC measures 90 x 120 x 40 mm and weighs only 0.28 kg. This compact design saves valuable space in control cabinets. The module plugs directly into ET 200S base units for easy installation. Users can expand the system with additional I/O modules as needed.

Reliable Energy Storage and Power Backup

A SuperCap provides 100 hours of real-time clock backup during power interruptions. This energy storage ensures time-stamped events and safety logs remain accurate. The CPU draws only 250 mA for low power consumption. Users can deploy the unit in energy-sensitive applications without concerns.
