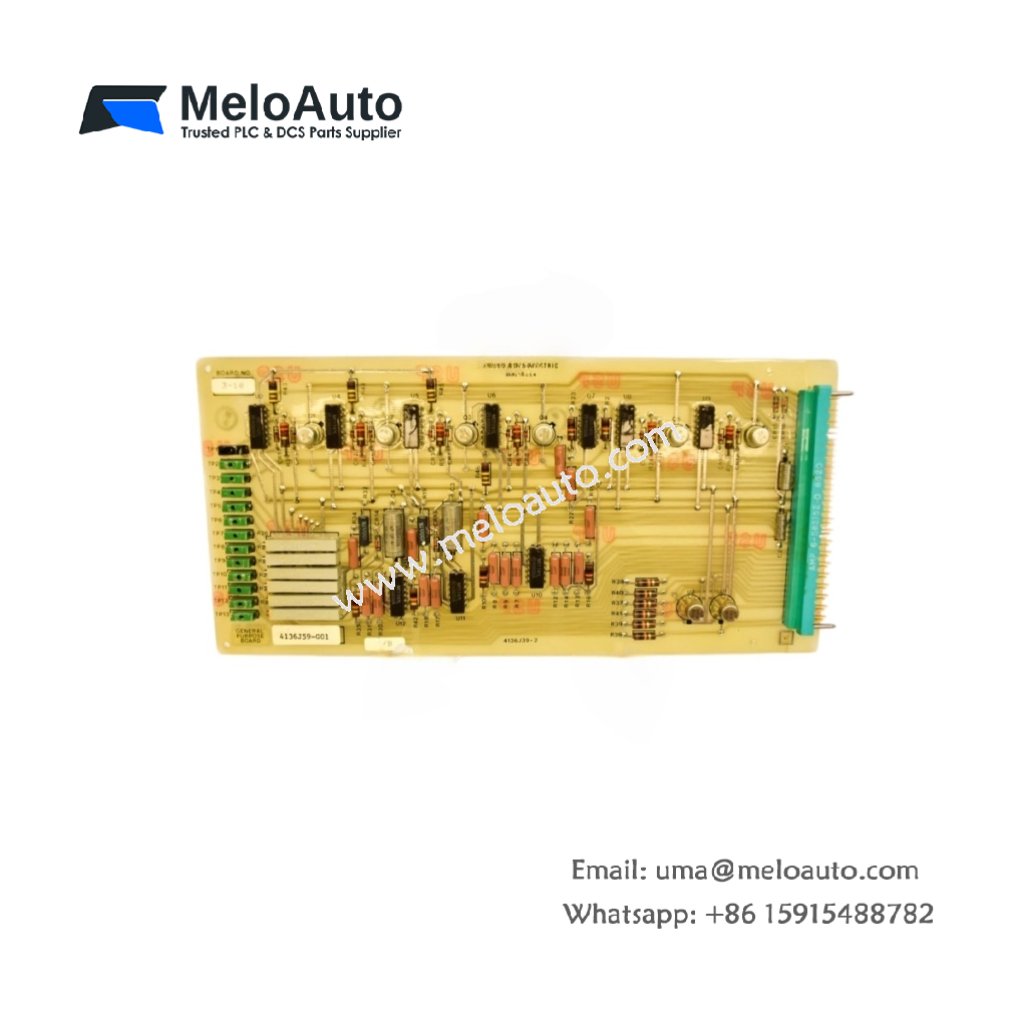

GE 4136J59-G01 | PC Board

This PC board serves as a control interface in GE drive systems. It processes signals between the user interface and power electronics. The unit mounts inside the drive cabinet for reliable operation.

Technical specifications

Parameter	Specification
Brand	GE (General Electric)
Model	GE 4136J59-G01
Category	PC Board (Printed Circuit Board)
PCB Layer Count	4 layers
Base Material	FR-4 flame retardant
Component Count	Approximately 85 components
Integrated Circuits	8 ICs (logic, op-amps, drivers)
Connector Types	2 x 20-pin headers, 1 x 10-pin ribbon
Test Points	5 gold-plated test points
Potentiometers	2 trim pots (calibration)
Power Supply	24V DC external
Current Consumption	120 mA typical
Fuse Protection	1 x 1A fast-blow fuse
Status Indicators	2 x LEDs (Power, Run)
Dimensions (L x W)	Approx. 16 cm x 11 cm
Thickness	Approx. 1.6 mm
Weight	Approx. 0.2 kg
Energy Storage	3 x electrolytic capacitors (100 µF each)
Operating Temperature	0°C to 55°C
Mounting	4 x screw holes (M3)

Detailed Technical Analysis

This PC board uses a 4-layer FR-4 design for reliable signal integrity. The inner layers provide power distribution and ground shielding. Approximately 85 discrete components populate both sides of the board. These include resistors, capacitors, diodes, and eight integrated circuits.

Now let us examine its energy storage features. The GE 4136J59-G01 contains three electrolytic capacitors. Each capacitor stores 100 microfarads of electrical charge. These capacitors filter the 24V DC power input. They also smooth voltage ripple from the external supply.

The board includes two trim potentiometers for field calibration. You can adjust these pots to fine-tune analog signal levels. The GE 4136J59-G01 features five gold-plated test points for diagnostics. A 1-amp fast-blow fuse protects the board from overcurrent conditions.

Installation and Connection Guidelines

You mount this board using four M3 screws with insulating standoffs. Connect the 24V DC power supply to the designated terminal block. The board draws approximately 120 milliamps during normal operation. Two LEDs provide visual status feedback to the technician.

The GE 4136J59-G01 connects to other system boards via ribbon cables. One 20-pin header carries digital control signals. A second header handles analog feedback from sensors. Always power down the drive before inserting or removing this board.

Practical Applications

Engineers use this PC board for drive repair and system refurbishment. It serves as a direct replacement for failed control boards. The GE 4136J59-G01 also works in legacy drive upgrade projects. Its compact size fits inside standard drive enclosures.

Summary

To conclude, this PC board features 4-layer construction and 85 components. It weighs 0.2 kilograms and contains three filter capacitors. Choose GE 4136J59-G01 for reliable drive control board replacement.
