GE A06B-6114-H209 | Servo Amplifier Module

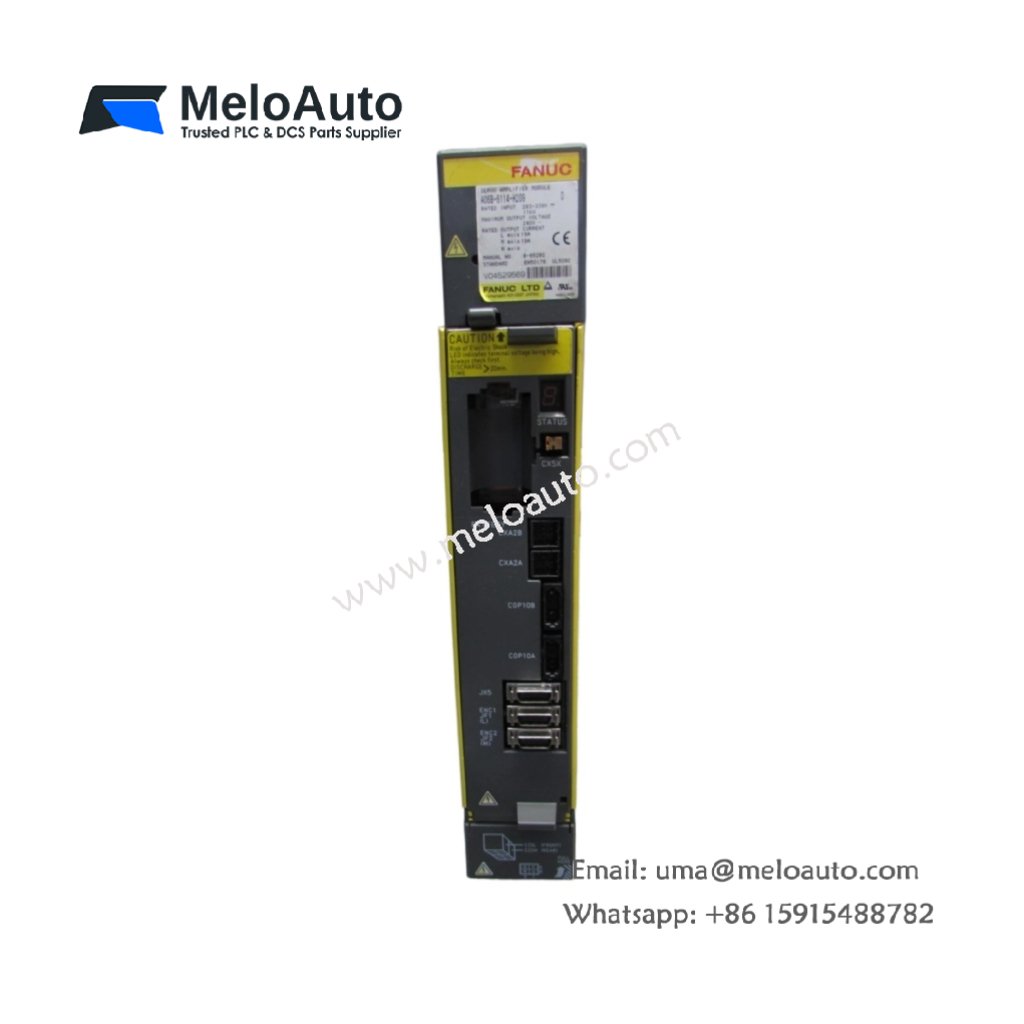

This servo amplifier module drives AC servo motors in precision motion systems. It converts DC bus power into controlled current for motor windings. The unit forms part of a complete CNC or robotic control solution.

Technical specifications

Parameter	Specification
Brand	GE Fanuc
Model	GE A06B-6114-H209
Product Family	Alpha Series
Category	Servo Amplifier Module
Input Voltage	300V DC (from power supply)
Output Current (Continuous)	20 Amps
Output Current (Peak)	40 Amps (for 1 second)
Number of Axes	1 (single axis control)
Motor Type	AC servo (digital control)
Control Method	PWM (pulse width modulation)
Switching Frequency	8 kHz
Communication Interface	Serial optical (FSSB)
Protection Features	Overcurrent, overvoltage, overtemperature
Status Indicators	3 LEDs (Power, Ready, Alarm)
Number of Components	1 PCB, 6 IGBTs, 5 capacitors, 1 heatsink
Energy Storage	5 x electrolytic capacitors (bus filter)
Cooling Method	Forced air (internal fan)
Dimensions (L x W x H)	Approx. 28 cm x 15 cm x 12 cm
Weight	Approx. 4.5 kg
Operating Temperature	0°C to 55°C

Detailed Technical Analysis

This servo amplifier module operates from a 300V DC bus supply. It delivers 20 amps of continuous current to a single AC servo motor. For short acceleration periods, the unit provides up to 40 amps. The PWM switching occurs at 8 kHz for quiet motor operation.

Now let us examine its power stage components. The GE A06B-6114-H209 contains six IGBTs for three-phase motor control. Five large electrolytic capacitors filter the DC bus voltage. A dedicated heatsink dissipates heat from the power transistors. An internal fan provides forced air cooling during operation.

The module communicates with the CNC controller via a serial optical link. This FSSB (Fanuc Serial Servo Bus) carries position and current commands. The GE A06B-6114-H209 includes three status LEDs on its front panel. A green Power LED indicates proper DC bus voltage. A red Alarm LED signals a fault condition.

Installation and Wiring Guidelines

You mount this servo amplifier vertically to ensure proper airflow. Leave 10 centimeters of clearance above and below the unit. Connect the DC bus from a compatible power supply module. The GE A06B-6114-H209 requires shielded motor cables for noise reduction.

For safety, wire the emergency stop circuit to disable the amplifier. Connect the motor feedback cable to the encoder port. The GE A06B-6114-H209 automatically detects motor parameters at startup. Always discharge the DC bus capacitors before servicing the unit.

Practical Applications

Engineers use this servo amplifier for precision axis control in machine tools. For example, it drives the X, Y, or Z axis on a milling machine. The GE A06B-6114-H209 also powers robotic arm joints and indexing tables. Its high peak current suits demanding acceleration and deceleration profiles.

Summary

To conclude, this servo amplifier delivers 20 amps continuous and 40 amps peak. It weighs 4.5 kilograms and uses forced air cooling. Choose GE A06B-6114-H209 for reliable motor control in CNC systems.
