Core Functionality and System Role

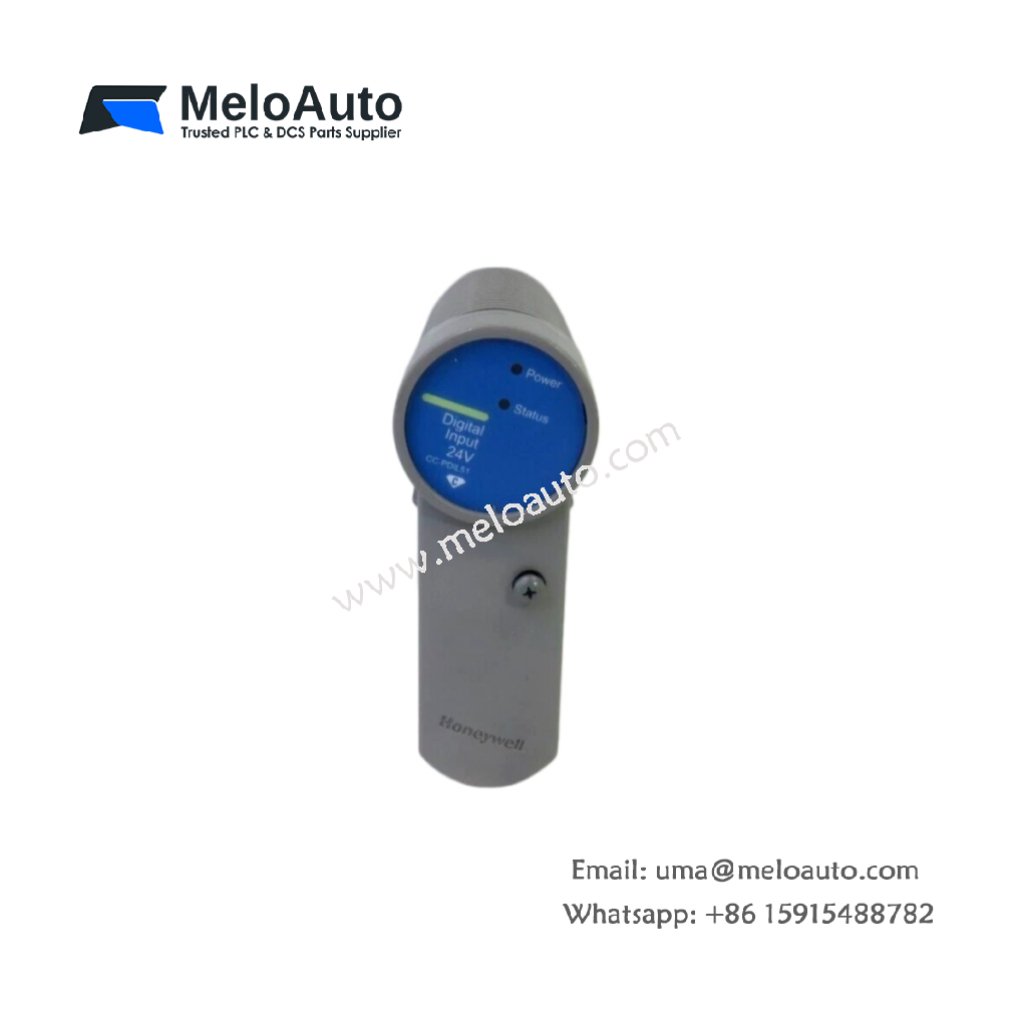

The Honeywell CC-PDIL51 digital input module acquires discrete field signals for the Experion PKS distributed control system . This module monitors 32 independent 24 VDC channels from switches, sensors, and relay contacts. It transmits real-time status information to the C300 controller for process monitoring and safety interlock logic . The module’s high channel density optimizes cabinet space for large-scale automation projects.
Technical Specifications
The following table details the core technical parameters for the Honeywell CC-PDIL51:
| Parameter | Specification |
|---|---|
| Model Number | CC-PDIL51 |
| Product Type | Digital Input Module |
| System Compatibility | Experion PKS, C300 Controller |
| Input Channels | 32 discrete inputs |
| Nominal Input Voltage | 24 VDC |
| Input Voltage Range | 18 to 30 VDC |
| ON Threshold | ≥ 13 VDC or ≥ 3 mA |
| OFF Threshold | ≤ 5 VDC or ≤ 1.2 mA |
| Input Impedance | 4.2 kΩ |
| Response/Filter Time | 5 ms ± 20% |
| Isolation | 1000 VAC RMS (optical) |
| Dimensions (W × H × D) | 5.5 × 16 × 14.5 cm |
| Weight | 0.3 – 0.5 kg |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -40°C to +85°C |
| Redundancy Support | Optional (requires CC-TDIL61 IOTA) |
| Open Wire Detection | Not supported |
Design and Protection Features
The Honeywell CC-PDIL51 provides 1000 VAC optical isolation that protects the control system from field-side surges . On-board excitation power supplies field devices directly, which simplifies wiring and eliminates external power marshalling . Hot-swappable design allows module replacement without powering down the system . The module also supports optional redundancy for mission-critical applications using the CC-TDIL61 IOTA .
System Compatibility and Integration
The Honeywell CC-PDIL51 integrates seamlessly with Experion PKS and C300 platforms . It pairs with the CC-TDIL51 IOTA for standard configurations or CC-TDIL61 for redundant setups . This module suits applications in oil and gas, chemical processing, and power generation facilities . For applications requiring open wire detection, consider the CC-PDIL01 as an alternative .
