Core Functionality and System Role

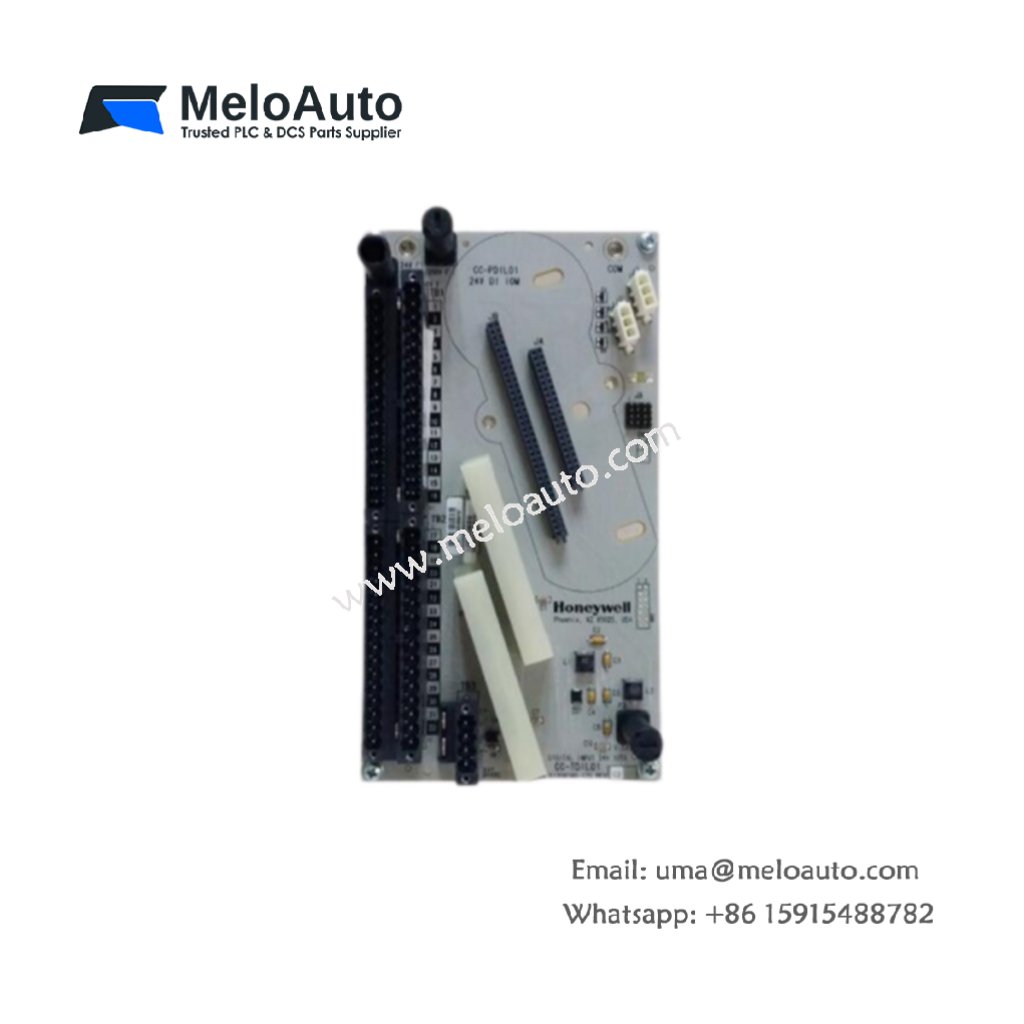

The Honeywell CC-TUIO01 universal process I/O module provides a flexible interface between field devices and the Experion PKS distributed control system . This high-density IOTA (Input/Output Termination Assembly) module supports 32 configurable channels within a compact 12-inch form factor, making it ideal for space-constrained control cabinets . Furthermore, the module consolidates analog and digital I/O capabilities into a single platform, which significantly reduces spare parts inventory and engineering complexity .
Technical Specifications
The following table details the core technical parameters for the Honeywell CC-TUIO01:
| Parameter | Specification |
|---|---|
| Model Number | CC-TUIO01 |
| Product Type | Universal I/O IOTA Module |
| System Compatibility | Experion PKS Series-C, C200/C300 Controllers |
| Channels | 32 configurable I/O channels |
| Signal Types Supported | 4-20mA, 0-10V, RTD, TC, Digital I/O, Pulse Inputs |
| A/D Converter Resolution | 16-bit |
| Input Impedance | 250 Ω (nominal for current inputs) |
| Hardware Accuracy | 0.1% of full scale at 23.5 ± 2°C |
| Input Scan Rate | 50 ms |
| Redundancy | Non-redundant module; compatible with redundant IOTA configurations |
| Dimensions (H × W × D) | 30.48 cm (12 in) length |
| Weight | 0.5 kg |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Protection Features | Open circuit detection, electronic short-circuit protection |
| HART Support | HART 7 pass-through for analog I/O |
| Hot-Swap Support | Yes (field-replaceable under power) |
| Certifications | UL508, CE, ATEX Zone 2 |
Design and Protection Features
The Honeywell CC-TUIO01 features a robust design with built-in diagnostic intelligence for proactive fault detection . Each channel provides open circuit detection and electronic short-circuit protection, which prevents a single fault from affecting other channels . The FAILOPT configurable safety state allows each output channel to default to a safe value during system faults . Additionally, the module supports hot-swap capability, enabling replacement without system shutdown and minimizing maintenance downtime . Its conformal-coated construction ensures reliable operation in harsh industrial environments.
System Compatibility and Use Cases
The Honeywell CC-TUIO01 integrates seamlessly with Honeywell Experion PKS C300 controllers and Series-C I/O architecture . It suits critical applications in oil and gas, chemical processing, power generation, and water treatment facilities . The module supports both standard and redundant configurations for flexible system design. Users should pair this module with compatible IOTA termination assemblies for proper installation. Its universal signal compatibility makes it an excellent choice for retrofitting legacy TDC 3000 installations or expanding Experion PKS networks .
