Core Functionality and System Role

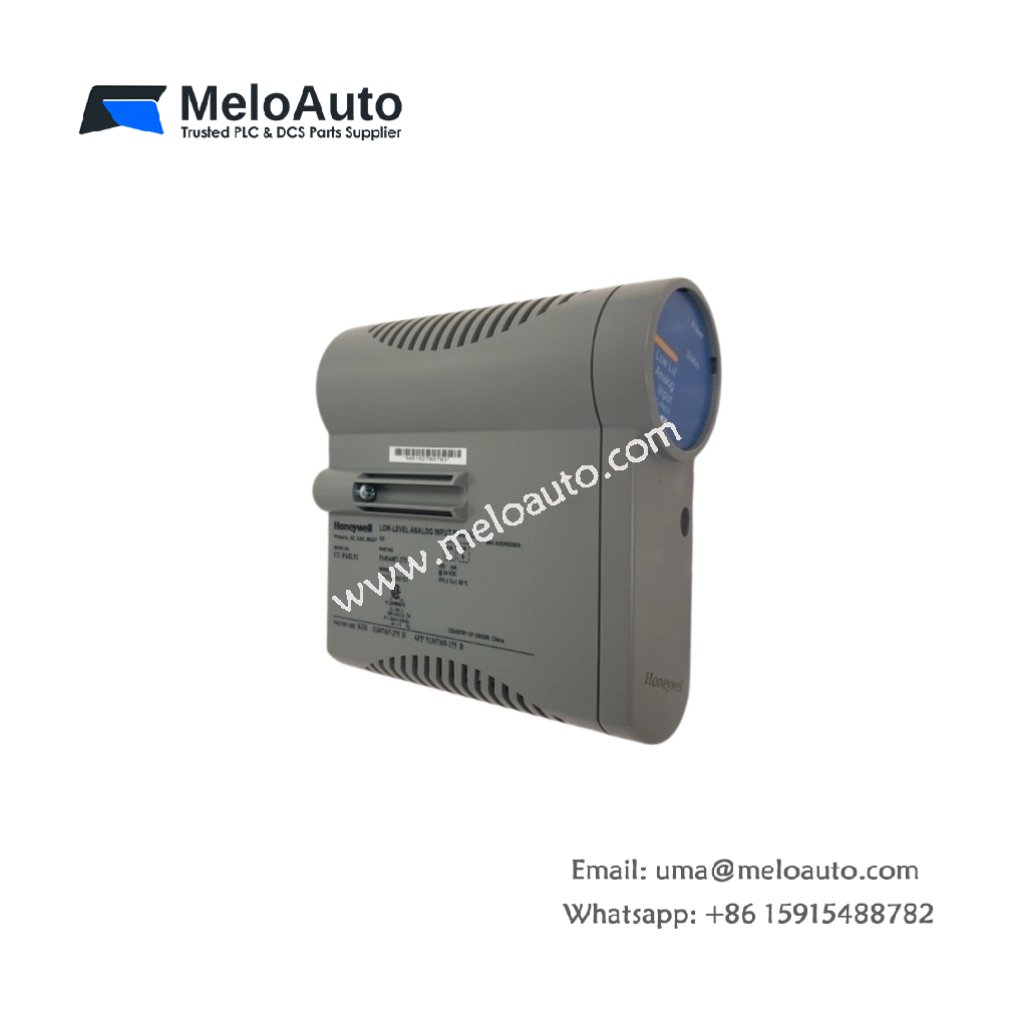

The Honeywell CC-PAIL51 51454487-175 analog input module captures standard analog signals for the Experion PKS and C300 control systems. This module handles 16 channels of 4-20 mA current inputs with exceptional accuracy. It transmits real-time process data to the controller for monitoring and control tasks. Furthermore, the module supports HART digital communication for intelligent field device integration.
Technical Specifications
The following table details the core technical parameters for the Honeywell CC-PAIL51 51454487-175:
| Parameter | Specification |
|---|---|
| Model Number | CC-PAIL51 51454487-175 |
| Product Type | Analog Input Module |
| System Compatibility | Experion PKS, C300 Controller |
| Input Channels | 16 channels (differential) |
| Input Signal Type | 4-20 mA |
| Input Voltage Drop | 3.1 V (typical) |
| Resolution | 12-bit A/D conversion |
| Accuracy | ±0.1% of span (typical) |
| Update Rate | 50 ms per channel (typical) |
| Isolation | 1000 VAC RMS (optical) |
| Dimensions (W × H × D) | 5.5 × 16.0 × 14.5 cm (approx.) |
| Weight | 0.28 – 0.3 kg |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -40°C to +85°C |
| Hot-Swap Support | Yes |
| Redundancy Support | Optional (requires C series IOTA) |
Design and Integration Features
The Honeywell CC-PAIL51 51454487-175 features a compact design that occupies a single slot in the C300 I/O rack. This module supports hot-swap capability, which enables replacement without system shutdown. Its high-density 16-channel configuration maximizes I/O capacity within limited cabinet space. The module provides on-board diagnostic LEDs for immediate status verification. It integrates with the CC-TPAI51 IOTA for standard field wiring termination.
System Compatibility and Use Cases
The Honeywell integrates with Experion PKS and C300 platforms. It suits applications in oil and gas, chemical plants, and power generation facilities. The module supports both standard and redundant configurations for critical control loops. Users should pair this module with compatible IOTA for proper installation.
