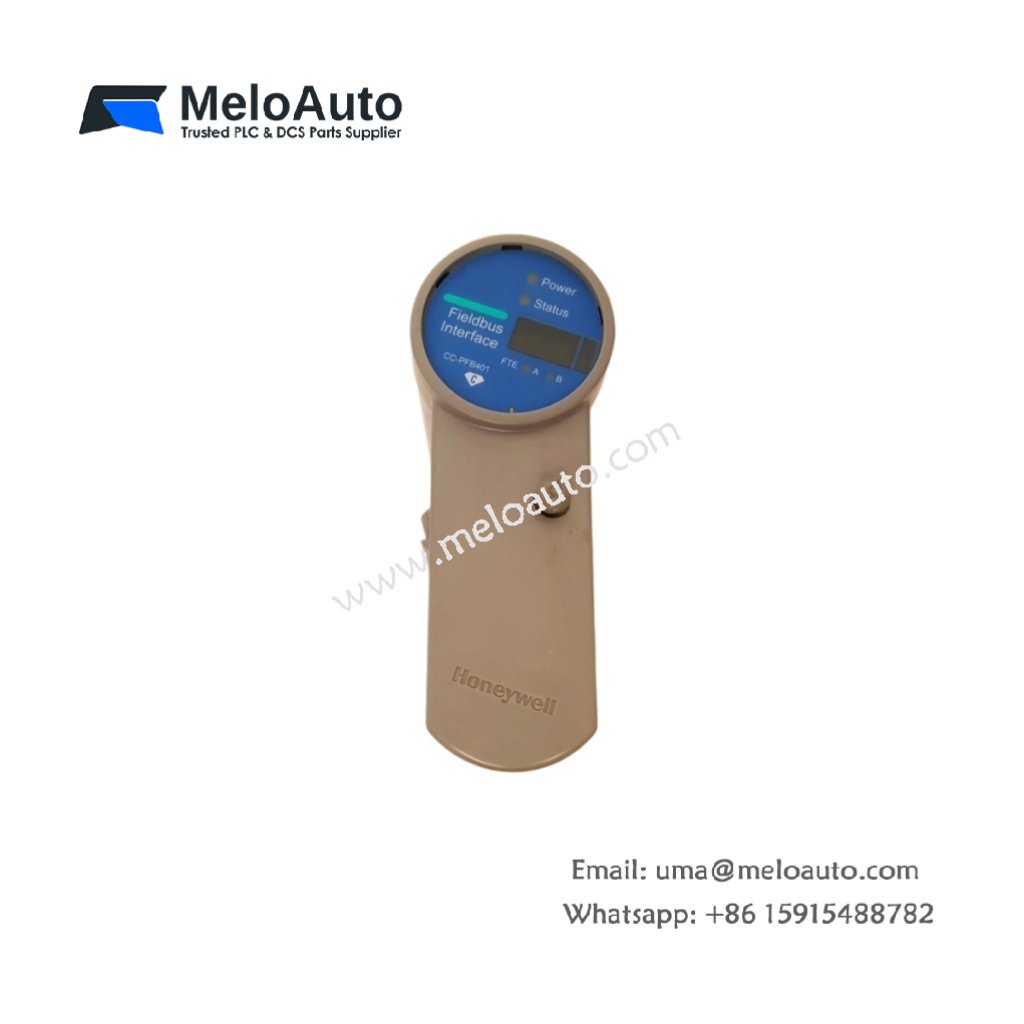

Honeywell CC-PFB401 51405044-175 Fieldbus Interface Module

Technical Overview

The Honeywell CC-PFB401 (Part No. 51405044-175) is a Series C Fieldbus Interface Module (FIM) engineered for the Experion PKS and C300 controller platforms . This module serves as a high-capacity gateway that seamlessly integrates FOUNDATION Fieldbus H1 devices—such as smart transmitters, valve positioners, and analyzers—into the control system . It also supports multiple protocols, including HART, through protocol conversion capabilities .

The Honeywell CC-PFB401 51405044-175 supports up to four independent H1 networks, handling a total of 64 fieldbus devices . Its unique, patented “tilted” form factor optimizes heat dissipation, ensuring a longer service life compared to legacy hardware . This module supports side-by-side redundancy directly on the IOTA baseplate, eliminating the need for external cabling .

Technical Specifications

Parameter	Specification
Manufacturer	Honeywell
Model Number	CC-PFB401
Part Number	51405044-175
Product Type	Fieldbus Interface Module (FIM)
System Compatibility	Experion PKS, C300 Controller, Series C I/O
H1 Networks Supported	4
Devices per H1 Network	Up to 16 (64 total per module)
Supported Protocols	FOUNDATION Fieldbus H1, HART
Macrocycle Periods	250ms, 500ms, 1s, 2s, 4s, 8s, 16s, 32s
Redundancy	Side-by-side on IOTA
Power Supply	24 VDC
Current Consumption	210 mA @ 24 VDC
Dimensions	6.1 × 5.2 × 10.6 cm
Weight	0.45 kg
Operating Temperature	-20°C to +70°C (some sources: -40°C to +70°C)
Thermal Design	Patented tilted module for heat distribution
Mounting	Series C IOTA baseplate
Country of Origin	USA

Key Features

High-Density Fieldbus Integration – The Honeywell CC-PFB401 51405044-175 supports four FOUNDATION Fieldbus H1 networks, connecting up to 64 smart devices per module and significantly reducing hardware footprint .

Efficient Thermal Management – The patented tilted orientation creates a natural chimney effect for air convection, effectively distributing heat away from sensitive components and preventing thermal-related degradation .

Flexible Redundancy Architecture – Users can configure the module in non-redundant or redundant (side-by-side) configurations directly on the IOTA without external cabling, ensuring high availability for mission-critical processes .

2-Level Detachable Terminals – This design simplifies field wiring while maintaining easy access for testing or module replacement, reducing maintenance time and complexity .

Comprehensive Diagnostics – Real-time diagnostic capabilities provide immediate insights into device health and communication status, enabling proactive maintenance and reduced downtime .

Seamless C300 Integration – The module acts as the primary gateway for digital fieldbus instrumentation, eliminating the need for a separate chassis by plugging directly into the IOTA .

Hot-Swap Capability – In redundant configurations, users can replace the module without powering down the system, minimizing process disruption during maintenance.

Applications

The Honeywell CC-PFB401 51405044-175 excels in oil and gas refineries, chemical processing plants, power generation facilities, and pharmaceutical manufacturing environments. It is ideal for integrating FOUNDATION Fieldbus instruments into Experion PKS-based distributed control systems, reducing wiring complexity and providing centralized diagnostics for optimized plant performance .
