ABB 1SBP260197R1001 CP435T-ETH Touch Panel

Technical Specifications and Display Features

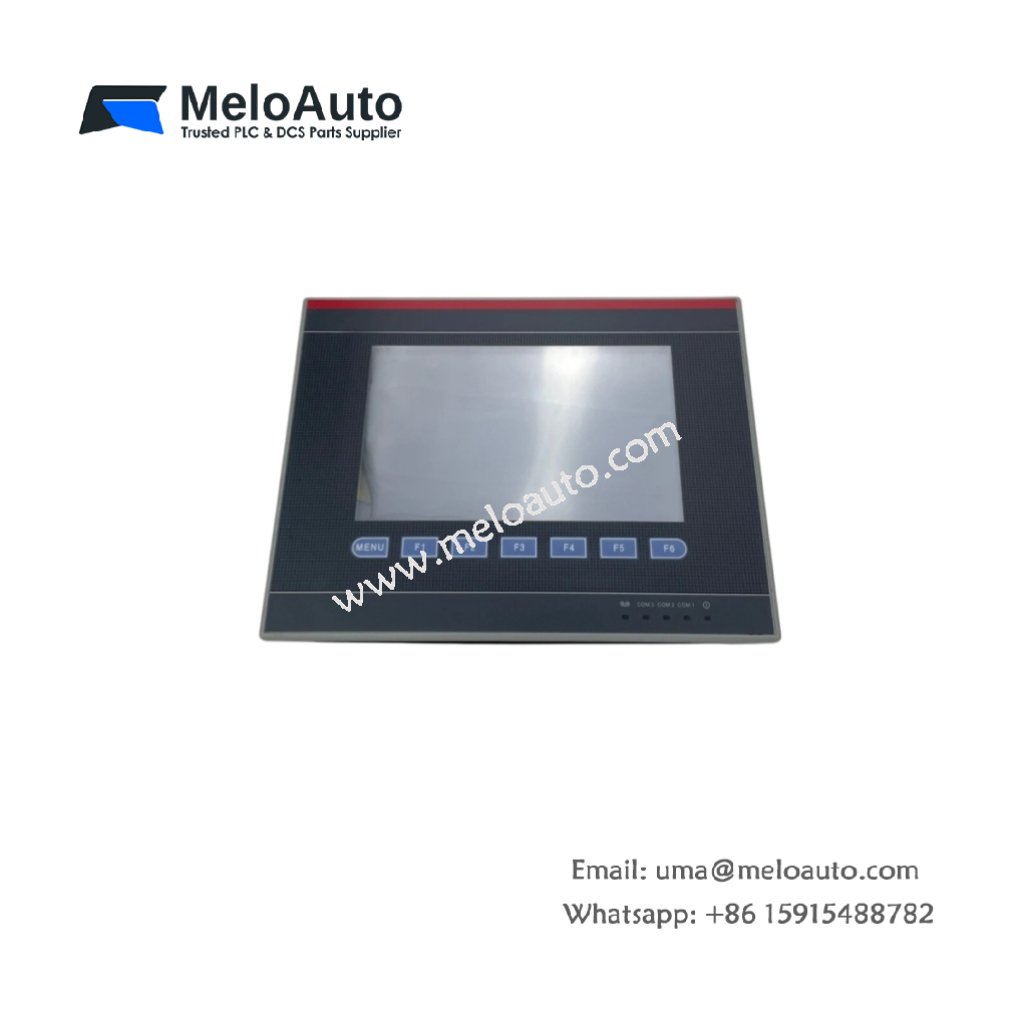

The ABB 1SBP260197R1001 touch panel, also known as CP435T-ETH, belongs to the ABB CP400 series of industrial HMIs. This panel provides operators with a clear and intuitive interface for monitoring and controlling automation processes in real time. It features a 7-inch TFT LCD touchscreen with 800 x 480-pixel resolution and supports 64K colors. The resistive touch technology permits operation even when users wear gloves. Its dimensions measure approximately 231 mm x 176 mm x 47 mm (W x H x D), and it weighs about 0.86 kg. The front panel carries an IP65 protection rating, ensuring resistance against dust and water ingress in harsh industrial environments.

Parameter	Specification
Manufacturer	ABB
Model Number	1SBP260197R1001 / CP435T-ETH
Product Family	ABB CP400 Series
Display Type	7-inch TFT LCD (resistive touch)
Resolution	800 x 480 pixels (WVGA)
Colors	64K
Function Keys	1 menu key + 6 configurable keys
User Program Storage	4 MB Flash
User Data Storage	512 KB RAM
Communication Interface	1 x Ethernet 10/100M, 2 x serial (RS-232/485/422)
Supported Protocols	Modbus TCP/RTU, ASCII, ABB AC500 native
Power Supply	24V DC (20.4 – 27.6V)
Power Consumption	~ 20 VA
Operating Temperature	0°C to +50°C
Storage Temperature	-10°C to +60°C
Front Protection	IP65
Dimensions (W x H x D)	231 x 176 x 47 mm
Weight	0.86 kg
Software Compatibility	CP400 Soft
Product Status	Active

Functional Capabilities and Connectivity

The 1SBP260197R1001 panel actively visualizes process data and supports operator control actions. It displays process flow diagrams, alarm lists, trend charts, and recipe management screens in real time. The panel communicates with ABB AC500 and AC800M controllers and other systems via its Ethernet port and isolated RS-232/422/485 serial interfaces. It supports Modbus TCP/RTU and ASCII protocols for flexible integration with diverse automation environments. The panel also features password protection with 9 user levels for secure and controlled multi-operator use. Moreover, users can create custom application screens using CP400 Soft software, which supports multilingual switching and complex control logic. The robust design and wide operating temperature range guarantee reliable operation in demanding industrial conditions.

Application Scenarios

This touch panel suits a wide range of industrial applications requiring local operator interaction. It performs effectively in oil and gas, chemical, power generation, and water treatment facilities for process monitoring and control. The ABB CP435T-ETH also serves in manufacturing settings, where it controls production lines, packaging machinery, and building automation systems. Its high front protection rating makes it suitable for harsh environments, including dusty or humid industrial areas. For system integrators, the panel provides a powerful and flexible HMI solution for the ABB automation ecosystem.
