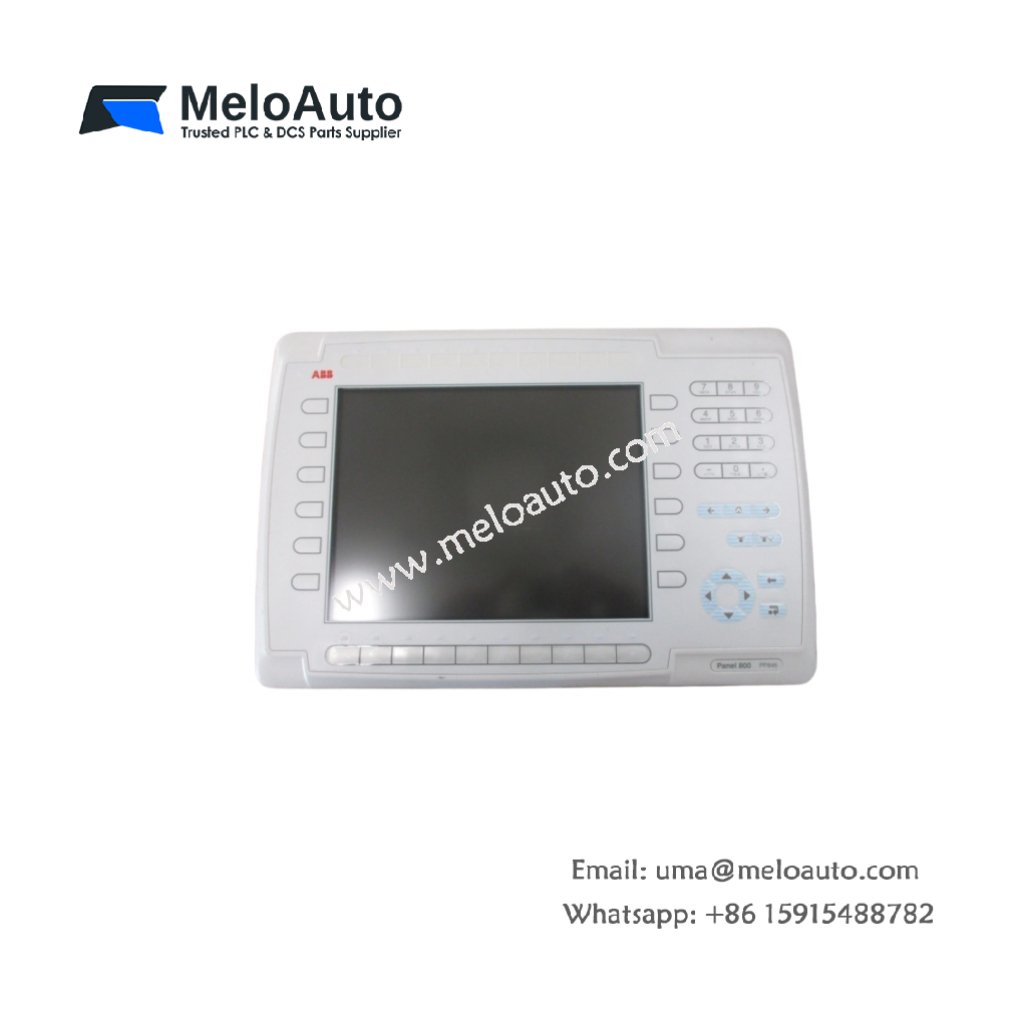

ABB PP846 3BSE042238R1 Operator Panel

Technical Specifications and Display Features

The ABB 3BSE042238R1 operator panel, also known as PP846, belongs to the PANEL 800 series within the ABB 800xA distributed control system family. This panel provides a reliable and intuitive human-machine interface for local process monitoring and control. It features a 10.4-inch TFT color touchscreen with a resolution of 800 x 600 pixels (SVGA) . The resistive touch technology supports operation even when users wear gloves. Its dimensions are approximately 144 mm x 96 mm x 60 mm, and it weighs about 0.45 kg . The front panel carries an IP65 protection rating, ensuring resistance against dust and water ingress for panel-mounted installations . A powerful Intel Atom E640T 1.0 GHz processor with 1 GB DDR3 RAM and 2 GB CompactFlash storage ensures smooth operation of complex graphical applications .

Functional Capabilities and Connectivity

The 3BSE042238R1 panel actively visualizes process data and supports operator control actions. It displays process flow diagrams, alarm lists, trend data, and recipe management screens in real time . The panel communicates with ABB AC 800M controllers and other systems via its dual Gigabit Ethernet ports and isolated RS-232/422/485 serial interfaces . It supports various protocols including Modbus TCP/IP and PROFINET for integration with diverse automation environments . The built-in USB ports facilitate data transfer and peripheral connectivity. Users can create application screens using Panel Builder 600 software, which supports multi-language switching and password protection for secure access . The panel’s robust construction and wide operating temperature range ensure reliable operation in demanding industrial conditions .

Application Scenarios and System Integration

This operator panel suits a wide range of industrial applications requiring local operator interaction. It performs effectively in oil and gas, chemical, power generation, and water treatment facilities for process monitoring and control . The ABB PP846 also serves in manufacturing, where it controls production lines, packaging machinery, and robotic systems . Its high front protection rating makes it suitable for harsh environments, including washdown areas in food and beverage plants . For system integrators, the panel provides a powerful and flexible HMI solution for the ABB 800xA ecosystem.
