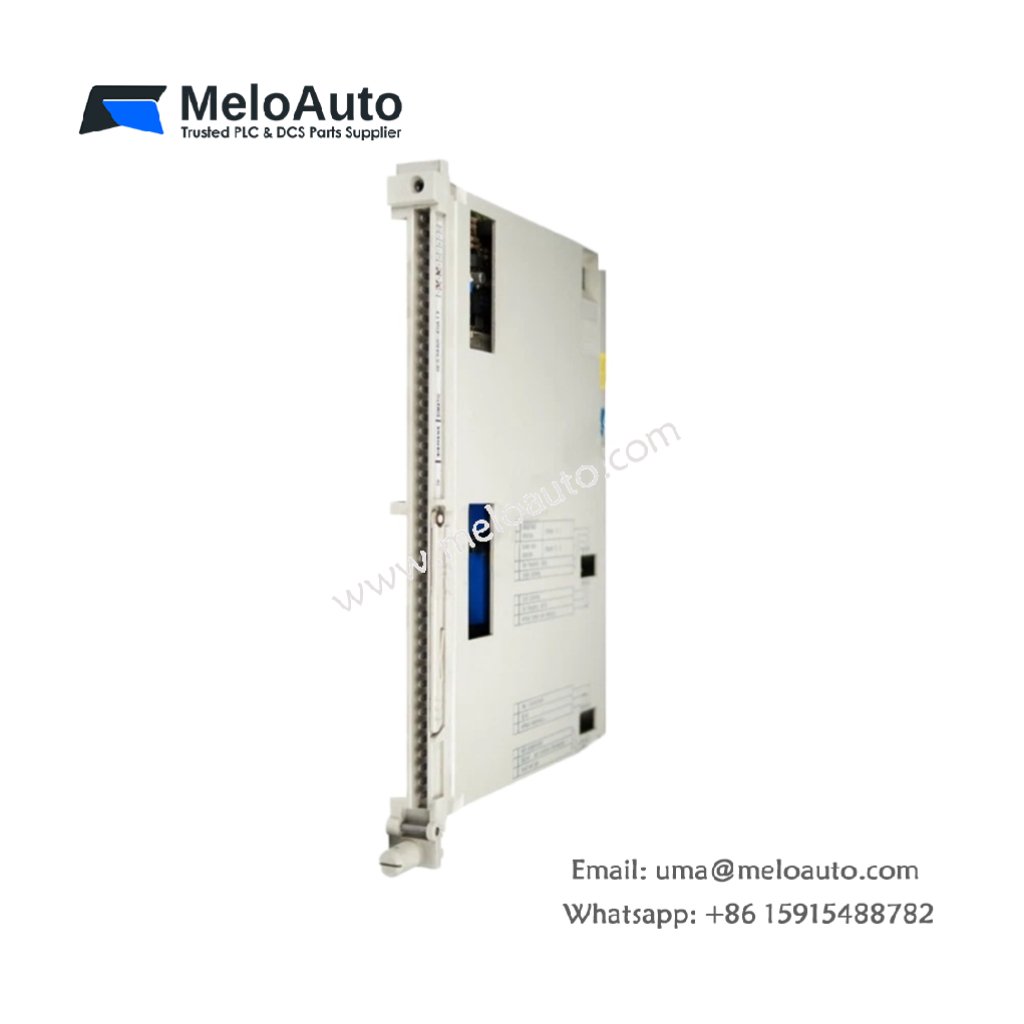

Siemens 6ES5460-4UA11 Analog Input Module

The Siemens 6ES5460-4UA11 analog input module converts field sensor signals for SIMATIC S5 systems. This module processes voltage and current signals from industrial transmitters. It mounts directly into any S5-115U or S5-135U rack slot. You can use this module as a direct replacement for failed analog input units.

Detailed Technical Specifications

The Siemens 6ES5460-4UA11 analog input module measures 250 mm in length. Its width reaches 160 mm across the main body. The total height goes up to 42 mm with all components installed. This unit weighs approximately 0.53 kilograms for secure mounting.

Key hardware parameters include:

Complete Model: Siemens 6ES5460-4UA11
Component count: 86 individual electronic parts
Connector ports: One 20-pin screw terminal block
Energy storage: Four aluminum capacitors (100 µF each)
Mounting system: Two rear locking levers
PCB layers: Four-layer low-noise construction
Analog inputs: 8 single-ended channels
Input voltage ranges: 0-10 V, ±10 V, 0-5 V, ±5 V
Input current range: 0-20 mA or 4-20 mA
Resolution: 12 bits for all input types
Conversion time: 25 ms per channel typical
Common mode rejection: >60 dB at 50 Hz

The Siemens 6ES5460-4UA11 analog input module stores minimal residual charge after power-off. Therefore, technicians can perform replacements within two minutes. Each input channel includes a programmable low-pass filter. Moreover, the module provides optical isolation between the backplane and field side.

Technical Parameter	Specification
Full Model Number	Siemens 6ES5460-4UA11
Dimensions (LxWxH)	250 mm x 160 mm x 42 mm
Weight	0.53 kg
Total Components	86 units
Connector Ports	1 x 20-pin screw terminal
Energy Storage Caps	4 x 100 µF (aluminum)
Analog Inputs	8 single-ended channels
Voltage Ranges	0-10V, ±10V, 0-5V, ±5V
Current Range	0-20 mA / 4-20 mA
Resolution	12 bits
Conversion Time	25 ms per channel
CMRR (50 Hz)	>60 dB
Operating Temperature	0°C to +60°C
Humidity Tolerance	5% to 85% non-condensing

Application and Installation

The Siemens 6ES5460-4UA11 analog input module slots into any S5 rack alongside the CPU. It requires an external 24 V DC supply for field loop power. This module accepts signals from pressure, temperature, flow, and level transmitters. Consequently, you can monitor eight process variables with one module.

Signal Integrity and Reliability

This module filters electrical noise from every analog input channel. Its four-layer PCB design minimizes crosstalk between adjacent signals. The Siemens 6ES5460-4UA11 includes self-calibration for each input channel. Therefore, you maintain measurement accuracy without manual adjustments.

Always power down the rack before inserting or removing this module. Wire the field devices using shielded twisted-pair cables. The module features a green LED for backplane power status. Furthermore, its conformal coating protects against dust and light moisture.
