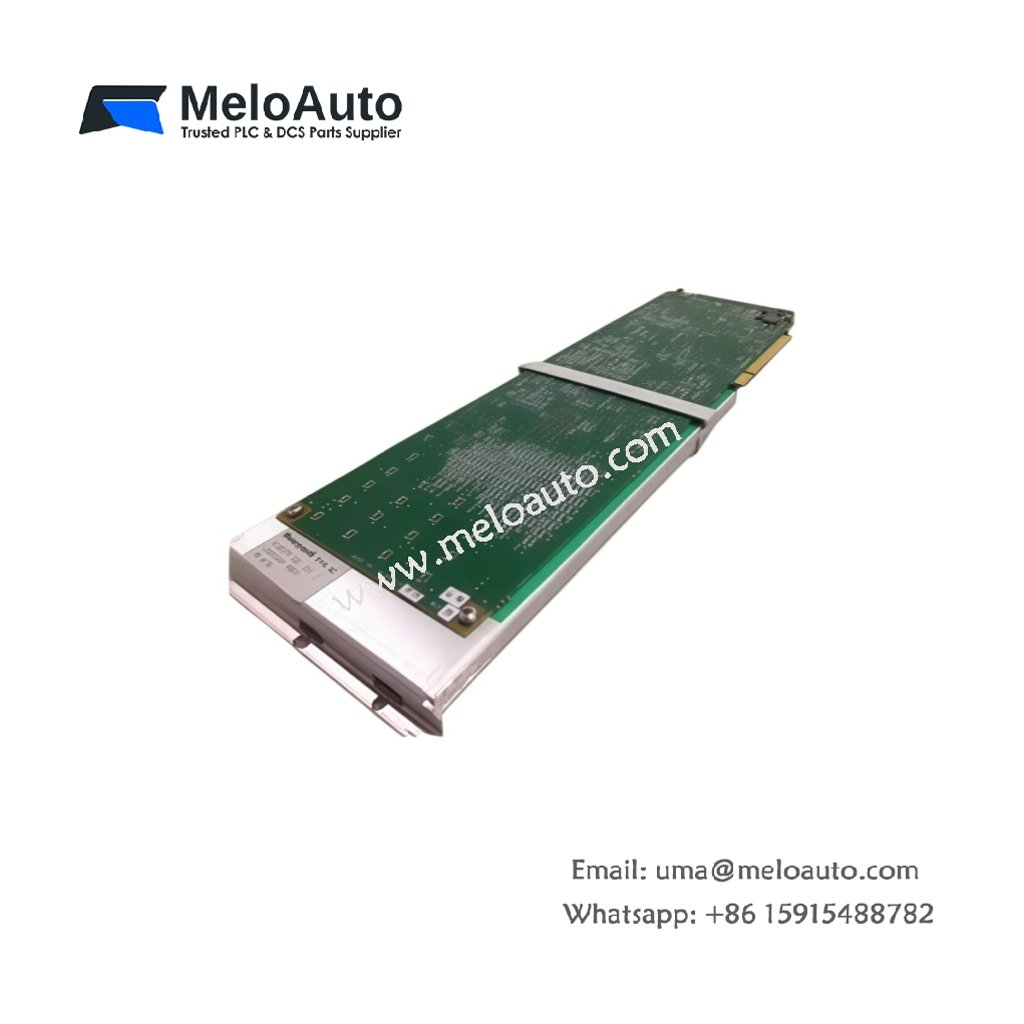

Honeywell 51403224-200 Ethernet Communication Module Specs

The 51403224-200 Ethernet communication module from Honeywell connects process controllers to plant networks. This unit handles TCP/IP data exchange and routes messages between supervisory systems and field devices. Engineers select this module when they need dependable network connectivity and quick card cage installation.

Technical Specifications

Parameter	Specification
Product Model	51403224-200
Module Type	Ethernet Communication Module
Function	TCP/IP data exchange and message routing
Interface	Backplane connector, Ethernet port
Mounting	Card cage slot
Operating Temperature	0°C to 60°C
Storage Temperature	-40°C to 85°C
Weight	Approx. 0.30 kg
Dimensions	Approx. 170 mm × 105 mm × 25 mm
Energy Storage	On-board capacitors for power rail filtering
Component Count	Ethernet controller, transceiver, and connector set

Interface and Communication Details

The 51403224-200 connects to the chassis through a backplane connector and a dedicated Ethernet port. The controller handles protocol processing and manages data throughput across the network. Therefore, technicians gain stable links without extra gateway hardware. The module slides into a card cage slot and secures with standard fasteners.

Physical and Environmental Parameters

The module measures roughly 170 mm by 105 mm by 25 mm and weighs about 0.30 kg. Its thin profile fits dense card cages and simplifies panel layout. Meanwhile, the 0°C to 60°C operating range covers typical control room conditions. The on-board capacitors filter the power rail and absorb transient spikes.

Why This Module Matters

Plant teams value the 51403224-200 for its steady network throughput and easy replacement. The filtering components protect communication circuits from voltage fluctuations. As a result, link dropouts decline and data integrity improves noticeably. Technicians also appreciate the clear status LEDs and quick slot access.
