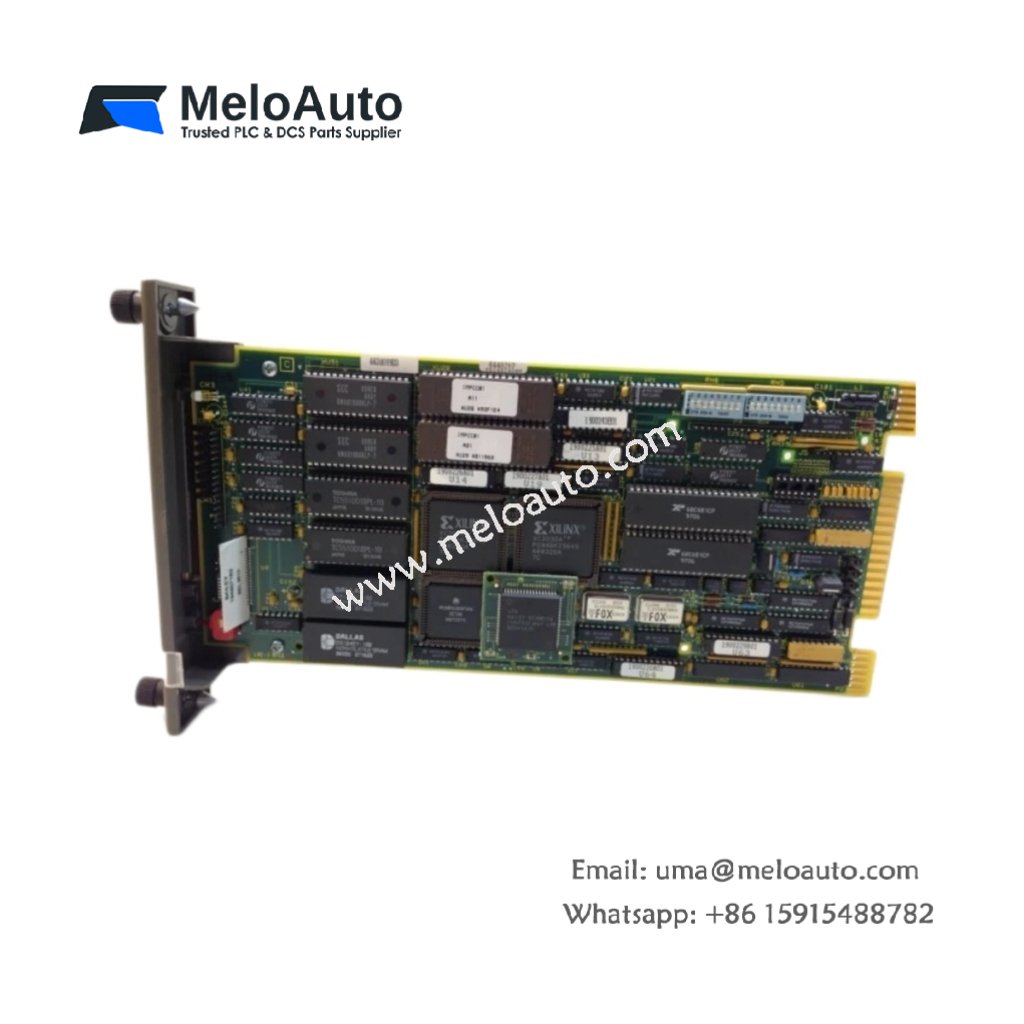

ABB Bailey IMPCC01 Coupler Module | 8 Controller Sections

Physical Dimensions and Mounting Specifications

The ABB Bailey IMPCC01 connects multiple controller sections into a unified system. This module measures 135mm in height, 60mm in width, and 90mm in depth. You can mount this unit on a standard 35mm DIN rail inside any main control cabinet. The module weighs 0.41 kilograms , allowing for straightforward installation in tight spaces.

Internal Architecture and Component Density

The ABB Bailey IMPCC01 contains 144 individual components on its six-layer PCB. Two high-speed bus transceivers handle data traffic between controller segments. Four FIFO buffer chips queue up to 256 bytes of data each. Additionally, six termination resistors maintain signal integrity on long backplane runs.

Energy Storage and Data Management

This coupler module stores 16.5 joules across six electrolytic capacitors. This energy reserve powers FIFO data queues for up to 35 milliseconds during power dips. The storage also maintains link configuration settings while the system recovers. Consequently, the module prevents inter-controller communication loss during brief interruptions.

Parameter	Value	Unit
Dimensions (H x W x D)	135 x 60 x 90	mm
Weight	0.41	kg
PCB layer count	6	layers
Total components	144	pieces
High-speed bus transceivers	2	units
FIFO buffer chips (256 bytes each)	4	units
Termination resistors	6	units
Electrolytic capacitors	6	units
Total energy storage	16.5	J
FIFO data hold time	35	ms
Supported controller sections	8	sections
Maximum inter-controller distance	12	meters
Bus transfer rate	2.5	Mbps
Backplane interface	24-pin IDC	–
Operating voltage	5	V DC
Current draw	180	mA
Power dissipation	0.9	W
LED indicators	5	units

Interface and Connectivity Features

The ABB Bailey IMPCC01 provides two 24-pin IDC connectors for backplane expansion. A single 8-pin terminal block handles external sync and trigger signals. You will also find one RJ-11 port for local configuration access. The coupler links up to eight controller sections in a single daisy-chain configuration.

Coupling Logic and Data Transfer

This module passes cycle-synchronous data between all connected controller sections. The coupler adds only 25 microseconds of latency to each data transfer. You can configure the module for broadcast or unicast messaging as needed. Furthermore, the unit performs CRC checking on all inter-controller communications automatically.

Diagnostic and Status Monitoring

Five LED indicators provide immediate feedback for coupler and network status. Green PWR confirms the presence of valid backplane power. Amber SYNC blinks when the module achieves section-to-section synchronization. Red ERR lights up for any CRC mismatch or data loss event. Two additional LEDs show bus activity and configuration valid conditions.

Configuration and Addressing Features

The ABB Bailey IMPCC01 uses rotary switches for manual address assignment. You can set the module as master or slave through an onboard jumper. The coupler automatically discovers attached controller sections during power-up. You can also assign section IDs from 1 to 63 without software tools.

Bus Termination and Signal Quality

This module includes switchable termination resistors for end-of-bus applications. You can enable 120 ohm termination for each backplane segment independently. The coupler also provides signal conditioning to extend cable runs up to 12 meters. Proper termination eliminates reflections and data corruption on long bus runs.

Environmental Specifications and Compliance

You can operate this coupler module from 0°C to 55°C ambient temperature without derating. Storage temperature ranges from -40°C to 85°C for long-term preservation. Non-condensing humidity tolerance spans 5% to 95% for industrial environments. This module meets IEC 61131-2 standards for programmable controller equipment.
