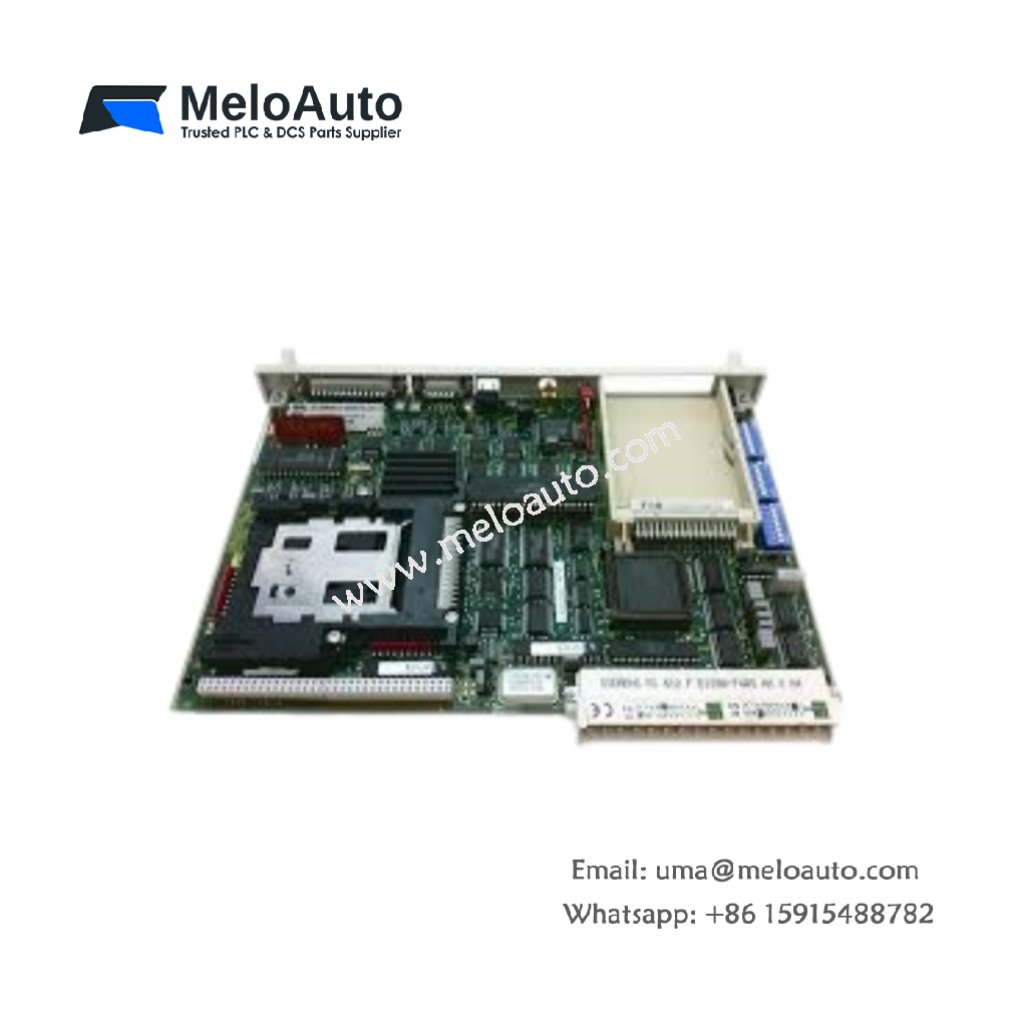

Siemens 6ES5432-6AA11 Digital Input Module

Module Overview

This digital input module accepts 48V DC signals from industrial field devices. You can install Siemens 6ES5432-6AA11 directly into any standard SIMATIC S5 rack slot. The unit monitors switches, sensors, and limit switches on higher voltage control circuits. Each input provides optical isolation between field wiring and the PLC backplane.

Technical Specifications

Parameter	Value
Dimensions (W x H x D)	250 mm x 25 mm x 130 mm
Weight	0.47 kg
Number of inputs	16 points
Input voltage range	36V to 60V DC (nominal 48V DC)
Input current per channel	5 mA typical at 48V DC
Response time (OFF to ON)	10 ms maximum
Response time (ON to OFF)	10 ms maximum
Isolation voltage	1500V RMS (field to logic)
Input indication	1 red LED per channel
Interface to backplane	S5 backplane connector
Field wiring interface	Screw terminal block (removable)
Total onboard components	172 discrete parts
Energy storage type	Ceramic and aluminum capacitors
Energy storage rating	180 µF at 63V DC
Operating temperature	0°C to +60°C

Board Layout and Components

The PCB arranges 16 input channels in two rows of eight. Each channel includes a voltage divider and optoisolator circuit. Moreover, 172 discrete components provide filtering and transient suppression for each input. Aluminum capacitors smooth the 48V field supply before distribution. Consequently, the module rejects electrical noise from industrial power sources.

Installation Process

You can mount Siemens 6ES5432-6AA11 into any standard SIMATIC S5 rack slot. The backplane connector supplies power and transfers input status to the CPU. Furthermore, a removable screw terminal block accepts field wiring for all 16 points. Red LEDs on the front panel show each input’s ON condition clearly.

Performance Advantages

This module operates on less common 48V DC industrial control circuits. The 10 ms response time filters out contact bounce effectively. Therefore, field switches connect directly without external interface relays. The 1500V isolation also protects the PLC from higher voltage transients.

Safety and Compliance

Siemens 6ES5432-6AA11 meets CE and RoHS industrial standards. The board discharges stored energy below 5V within six seconds. Hence, technicians face minimal electrical risk during maintenance or replacement.
