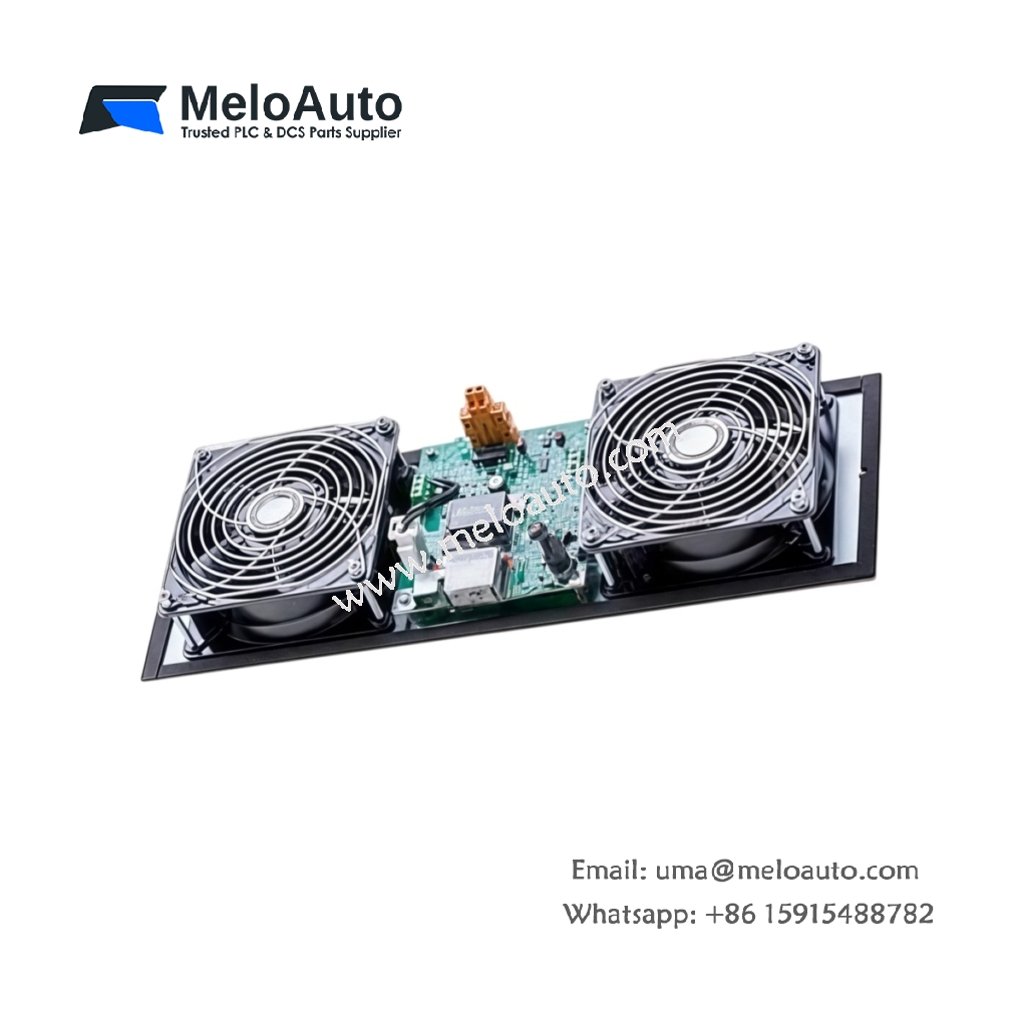

Honeywell 51304074-100 Cabinet Fan Assembly Specs

The 51304074-100 cabinet fan assembly from Honeywell moves cooling air through process control cabinets. This unit removes heat from dense electronics and keeps internal temperatures within safe limits. Engineers select this assembly when they need dependable airflow and simple panel installation.

Technical Specifications

Parameter	Specification
Product Model	51304074-100
Module Type	Cabinet Fan Assembly
Function	Forced-air cooling for control cabinets
Interface	Power connector, mounting hardware
Mounting	Cabinet panel or chassis mount
Operating Temperature	0°C to 60°C
Storage Temperature	-40°C to 85°C
Weight	Approx. 0.85 kg
Dimensions	Approx. 200 mm × 200 mm × 50 mm
Energy Storage	On-board capacitors for motor supply filtering
Component Count	Fan motor, blade set, and mounting bracket

Interface and Cooling Details

The 51304074-100 connects to cabinet power through a dedicated connector and mounting hardware. The fan motor drives blades that pull warm air away from sensitive modules. Therefore, technicians gain steady airflow without extra ducting or filters. The assembly mounts on a cabinet panel or chassis and secures with standard fasteners.

Physical and Environmental Parameters

The assembly measures roughly 200 mm by 200 mm by 50 mm and weighs about 0.85 kg. Its square frame fits standard cabinet cutouts and simplifies panel layout. Meanwhile, the 0°C to 60°C operating range covers typical control room conditions. The on-board filtering keeps motor supply clean during electrical interference.

Why This Assembly Matters

Plant teams value the 51304074-100 for its steady airflow and simple servicing. The motor filtering reduces electrical noise on the cabinet power rail. As a result, module temperatures stay low and component life extends. Technicians also appreciate the quick mounting and clear airflow direction markings.
