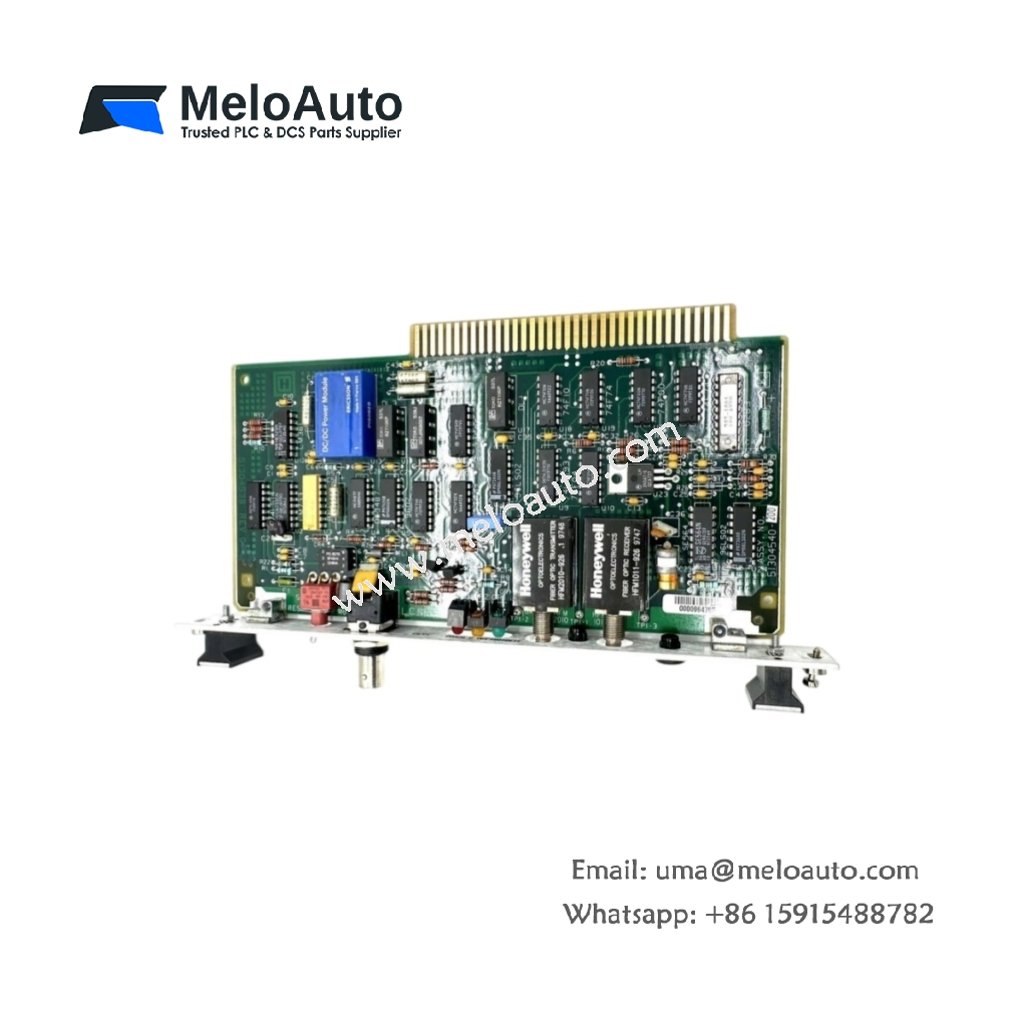

Honeywell 51304540-200 Passive-Active Hybrid Paddle Board

The 51304540-200 passive-active hybrid paddle board from Honeywell carries and conditions signals inside process control chassis. This board combines passive routing traces with active buffer circuits for stable data flow. Engineers select this board when they need dependable signal handling and simple card cage replacement.

Technical Specifications

Parameter	Specification
Product Model	51304540-200
Module Type	Passive-Active Hybrid Paddle Board
Function	Signal routing with active buffering
Interface	Backplane connector, board-to-board contacts
Mounting	Card cage slot
Operating Temperature	0°C to 60°C
Storage Temperature	-40°C to 85°C
Weight	Approx. 0.28 kg
Dimensions	Approx. 168 mm × 102 mm × 23 mm
Energy Storage	On-board capacitors for local power filtering
Component Count	Buffer ICs, traces, and passive components

Interface and Board Details

The 51304540-200 connects to the host chassis through a backplane connector and board-to-board contacts. Active buffer stages strengthen weak signals before they travel across the backplane. Therefore, technicians gain stable continuity even with long trace runs. The board slides into a card cage slot and secures with standard fasteners.

Physical and Environmental Parameters

The board measures roughly 168 mm by 102 mm by 23 mm and weighs about 0.28 kg. Its thin profile fits dense card cages and simplifies panel layout. Meanwhile, the 0°C to 60°C operating range covers typical control room conditions. The on-board capacitors filter local power and absorb transient spikes.

Why This Board Matters

Plant teams value the 51304540-200 for its hybrid signal path and easy replacement. The active buffers keep signal levels steady across dense backplane routing. As a result, data errors decline and equipment uptime improves noticeably. Technicians also appreciate the clear silkscreen markings and simple mounting scheme.
