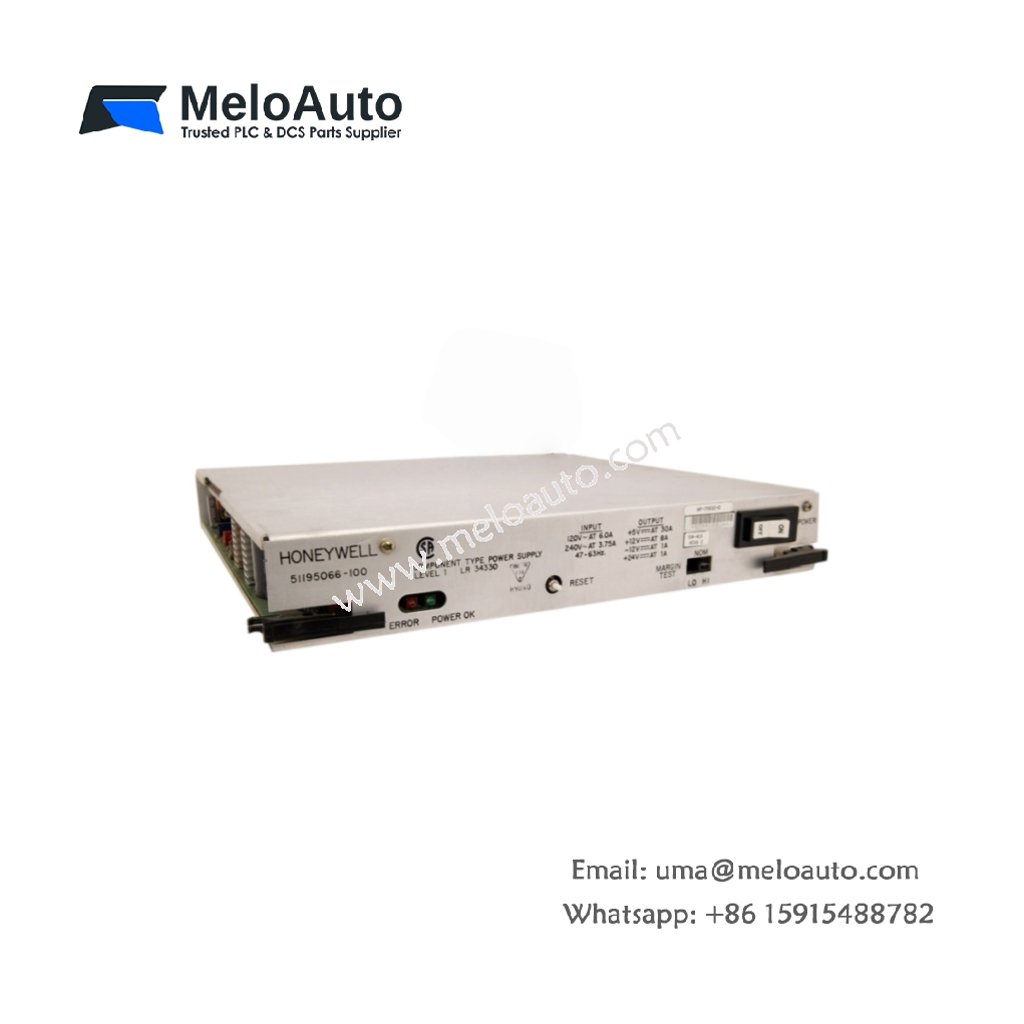

Honeywell 51195066-100 Power Supply Specs

The 51195066-100 power supply from Honeywell delivers regulated DC power to process control modules and field instruments. This unit converts incoming plant power into a stable output rail for continuous operation. Engineers choose this supply when they need dependable power delivery and straightforward panel installation.

Technical Specifications

Parameter	Specification
Product Model	51195066-100
Module Type	Power Supply
Input Voltage	AC mains input
Output Type	Regulated DC output
Interface	Screw-type input and output terminals
Mounting	Panel or chassis mount
Operating Temperature	0°C to 60°C
Storage Temperature	-40°C to 85°C
Weight	Approx. 1.2 kg
Dimensions	Approx. 220 mm × 120 mm × 70 mm
Energy Storage	On-board capacitors for output holdup
Component Count	Single regulated output channel

Interface and Power Details

The 51195066-100 accepts AC mains through screw terminals and delivers regulated DC to the load rail. Wide input tolerance keeps the output stable during mains fluctuations. Therefore, technicians gain consistent power without external conditioning equipment. The unit mounts on a panel or chassis and secures with standard fasteners.

Physical and Environmental Parameters

The supply measures roughly 220 mm by 120 mm by 70 mm and weighs about 1.2 kg. Its sturdy housing fits standard cabinets and leaves room for adjacent modules. Meanwhile, the 0°C to 60°C operating range covers typical control room conditions. The on-board energy storage holds the output steady during brief input interruptions.

Why This Module Matters

Plant teams value the 51195066-100 for its steady output and simple replacement. The capacitor bank bridges short supply gaps during mains disturbances. As a result, connected modules avoid resets and keep scanning without interruption. Technicians also appreciate the clear terminal labeling and quick panel access.
