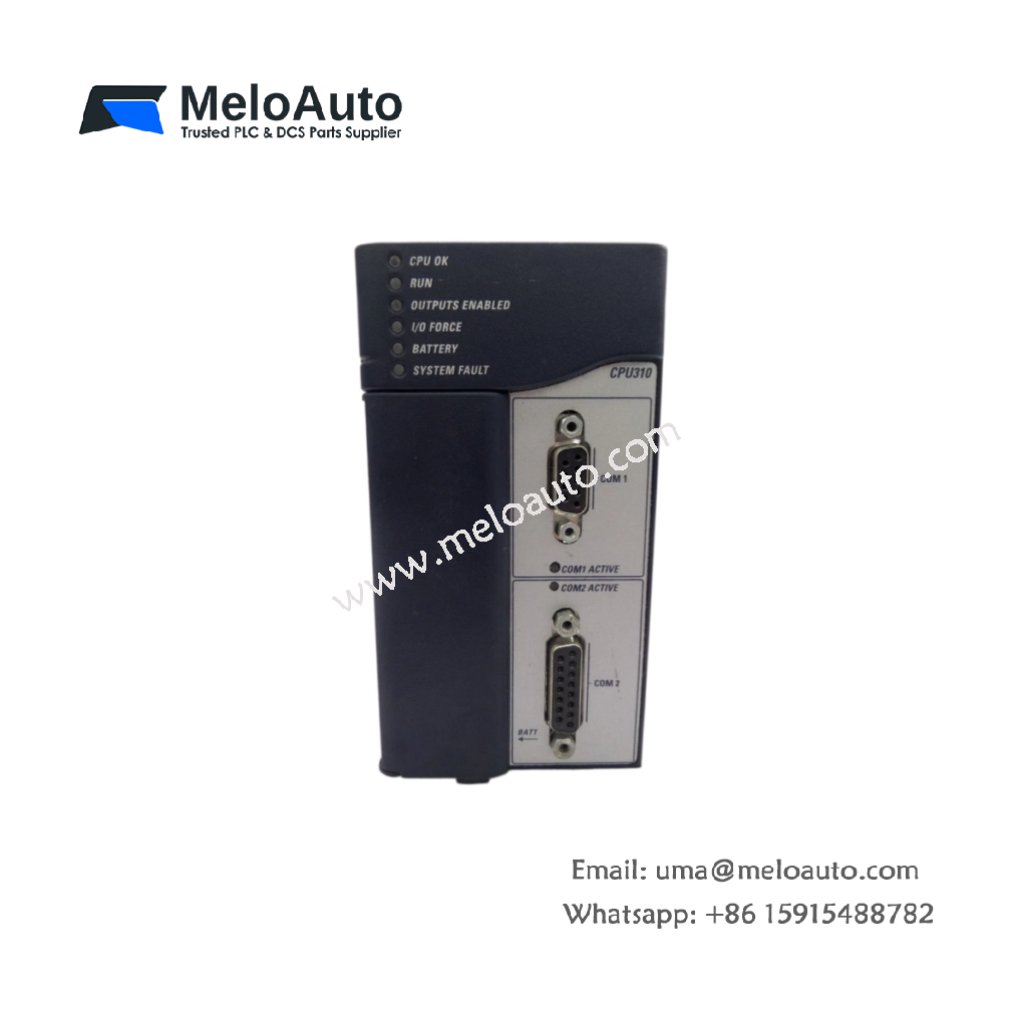

The IC695CPU310-FS serves as the main processor for GE’s RX3i PacSystems controller. This unit executes ladder logic and structured text programs with high speed. It supports up to 512 I/O points for medium to large automation tasks. Consequently, this CPU provides reliable control for manufacturing and process industries.
Technical Specifications
We designed this central processing unit for demanding industrial automation environments. Its compact form factor fits directly into a standard RX3i rack. Moreover, the unit includes non-volatile flash memory for program storage.
| Parameter | Specification |
|---|---|
| Dimensions (H x W x D) | 5.5 x 1.9 x 4.2 inches (140 x 48 x 107 mm) |
| Weight | 0.38 kg (0.84 lbs) |
| Input Voltage | 3.3V DC from backplane |
| User Memory | 10 MB for program and data storage |
| I/O Capacity | Up to 512 local points |
| Communication Ports | 2x RS-232 serial ports, 1x Ethernet (10/100 Mbps) |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
Processing Capabilities and Scan Time
The IC695CPU310-FS executes 0.22 ms per 1K of boolean logic efficiently. It handles floating-point math and array processing without any performance degradation. The onboard operating system manages task scheduling across multiple program blocks. As a result, this CPU maintains consistent scan times for critical control loops.
Memory Architecture and Data Retention
This central processing unit uses flash memory for non-volatile program storage. It retains all user logic and configuration data during power cycles automatically. The unit also includes battery-backed RAM for retentive variable storage. This battery maintains your data for up to six months without external power.
Communication Interfaces
The IC695CPU310-FS provides two RS-232 serial ports for programmer connection. One Ethernet port supports SRTP and Modbus TCP protocols simultaneously. You can also use the serial ports for HMI or third-party device communication.
Installation and Compatibility
Mount this CPU into any RX3i Universal Backplane slot directly. It works with all RX3i I/O modules and expansion racks seamlessly. Always install the latest firmware before deploying this processor in a new system.
