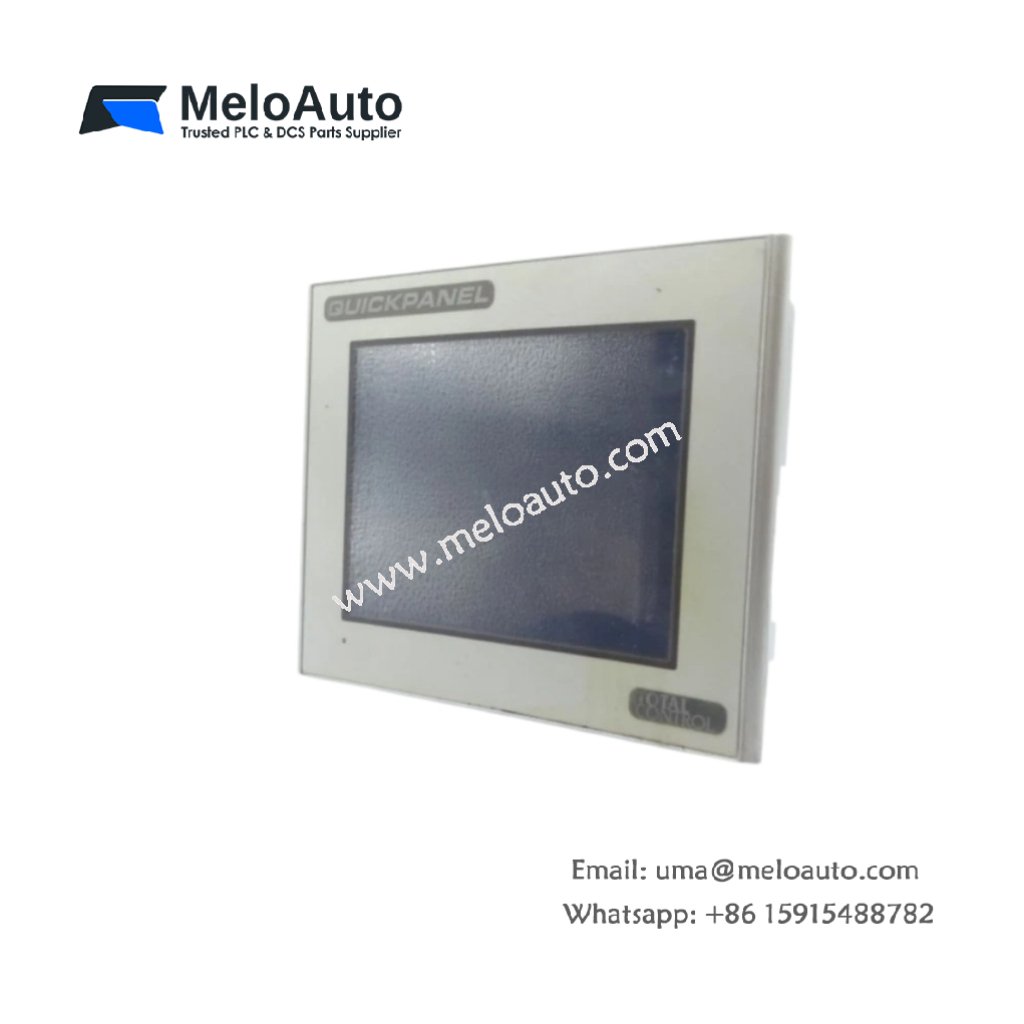

GE QPK-STDN-0000 | QuickPanel Operator Interface

The QPK-STDN-0000 provides a human-machine interface for industrial control systems. This operator panel displays machine status and accepts operator commands. It connects directly to PLCs via standard serial communication ports. Consequently, operators gain a central point for monitoring and controlling equipment.

You can program this terminal using GE’s QuickDesigner software environment. The QPK-STDN-0000 supports multiple protocols including Modbus and SNP. Its monochrome LCD display shows text and basic graphics clearly. Therefore, this panel suits simple machine control and data entry applications.

Display Specifications and User Interface

The terminal features a 6-inch monochrome LCD with backlighting. The QPK-STDN-0000 provides 320 x 240 pixel resolution for clear visuals. A touch-sensitive membrane covers the entire display area. Function keys along the display edges provide additional navigation options.

The backlight has a typical lifespan of 50,000 operating hours. The QPK-STDN-0000 offers adjustable contrast for different lighting conditions. An LED indicator shows communication and power status continuously. Below is a complete breakdown of its technical characteristics.

Specification	Detail
Display Type	Monochrome LCD (Blue mode)
Display Size	6 inches (Diagonal)
Resolution	320 x 240 pixels (QVGA)
Backlight	CCFL (50,000 hour typical life)
Input Type	Resistive touch screen + Function keys
Communication Ports	RS-232, RS-422, RS-485 (9-pin D-sub)
Supported Protocols	Modbus RTU, SNP, GE SRTP
Dimensions (W x H x D)	180 mm x 130 mm x 55 mm
Weight	0.9 kg (900 grams)
Power Supply	24V DC (10 to 30V DC range)
Power Consumption	12 W (Maximum)
Operating Temperature	0°C to 50°C
Protection Rating	IP65 (Front panel)
Energy Storage	None (No battery or capacitor)

Interface and Connection Layout

The rear panel features a 9-pin D-sub connector for serial communication. The QPK-STDN-0000 includes a separate 3-pin terminal block for power input. A second 9-pin port allows daisy-chaining to additional devices. The panel mounts into a standard 1/4 DIN cutout for installation.

You can download application programs via the serial programming port. The QPK-STDN-0000 stores user screens in internal flash memory. Configuration parameters remain intact even after power loss. Therefore, the panel starts immediately when you restore power.

Operational Benefits for Machine Control

This operator interface replaces pushbuttons, lights, and text displays. The QPK-STDN-0000 reduces panel wiring and component costs significantly. Its simple programming environment suits basic machine control applications. Engineers value this panel for retrofitting older equipment without HMI capability.
