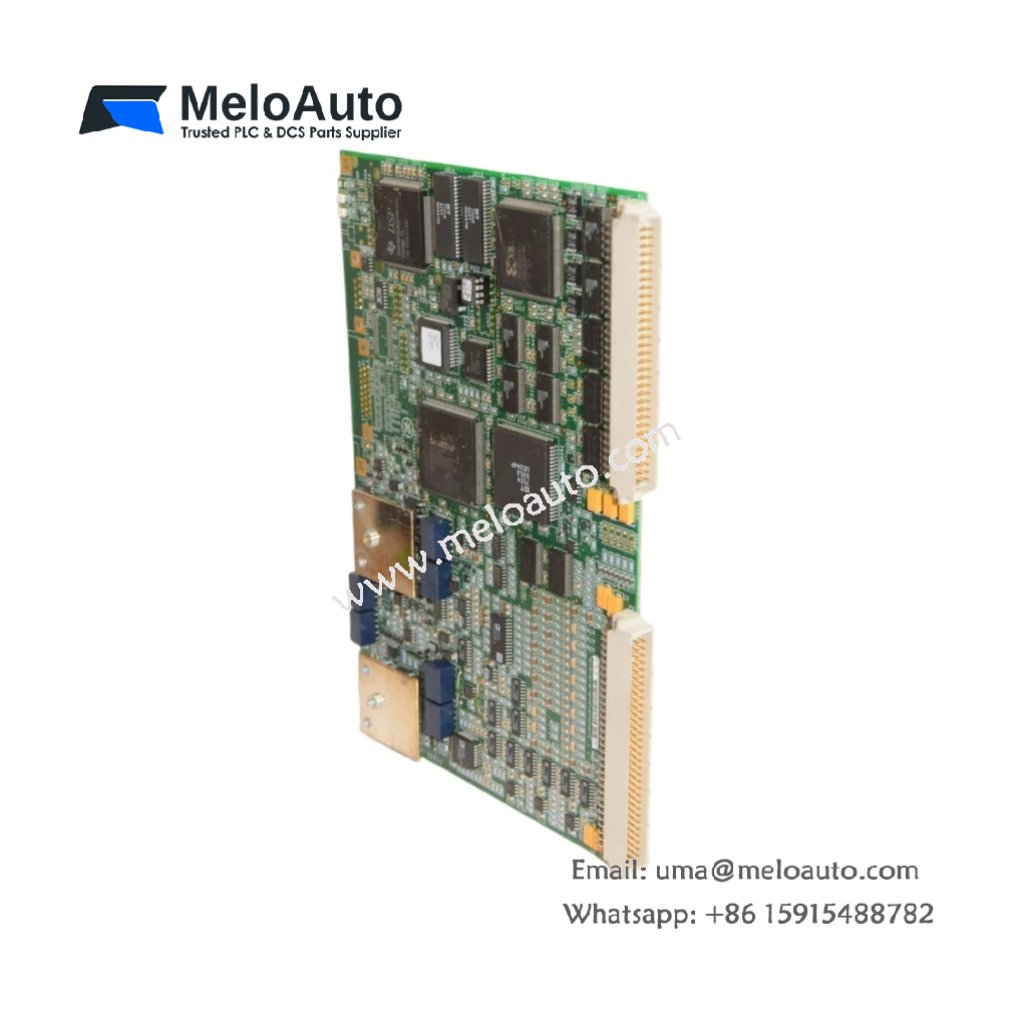

GE IS200VAICH1DAA IS200VAICH1D Analog Input Card

The GE IS200VAICH1DAA IS200VAICH1D is a highly efficient analog input card designed for the GE Mark VI and Mark VIe control systems. It directly interfaces with field sensors and converts analog signals into digital data for processing by the control system. This card plays a key role in managing analog inputs, ensuring that industrial processes remain under tight control.

Key Features and Specifications

The GE IS200VAICH1DAA IS200VAICH1D analog input card delivers advanced features to optimize industrial control systems. Below is a detailed breakdown of its specifications:

Technical Specifications

Specification	Details
Manufacturer	GE (General Electric)
Model Number	IS200VAICH1DAA, IS200VAICH1D
Product Type	Analog Input Card
Input Channels	8 Channels (differential inputs)
Input Voltage Range	±10 VDC (differential input)
Input Resolution	16-bit Analog-to-Digital Conversion
Sampling Rate	1 ms per channel
Input Impedance	≥ 1 MΩ
Data Format	16-bit Integer (IEEE 32-bit)
Module Type	Digital to Analog Converter (ADC)
Signal Conditioning	Includes filtering and amplification for better accuracy
Power Consumption	200 mA @ 5 VDC
Operating Temperature	0°C to 60°C (32°F to 140°F)
Storage Temperature	-40°C to 85°C (-40°F to 185°F)
Weight	0.6 lbs (0.27 kg)
Mounting	Compatible with GE Mark VI and Mark VIe systems
Communication Protocol	Compatible with GE Mark VIe communication standards
Alarm & Status	Diagnostic feedback and fault reporting

Functionality

The GE IS200VAICH1DAA IS200VAICH1D card processes analog signals from sensors in industrial systems. It has 8 differential input channels, offering flexibility for various signal types. These channels can handle ±10 VDC voltage signals and convert them to digital data for control and monitoring. The card provides a 16-bit resolution, ensuring precise data conversion, and offers a 1 ms sampling rate for quick response.

Applications

The GE IS200VAICH1DAA IS200VAICH1D is ideal for systems requiring real-time analog input conversion. Key industries and applications include:

Power Generation: It reads sensors for turbine speeds, pressures, and temperatures.
Oil & Gas: The card monitors pressure, temperature, and flow in critical equipment.
Manufacturing Automation: It helps control motors, sensors, and other industrial equipment.
Water Treatment: It measures parameters like pH levels and flow rates for water quality control.

Installation and Compatibility

Designed for GE Mark VI and Mark VIe control systems, the GE IS200VAICH1DAA IS200VAICH1D card installs easily into the system’s backplane. It requires a 5 VDC power supply, drawing 200 mA maximum. Compatible with GE Mark VIe, this module supports fast and efficient data processing. Additionally, the card provides important diagnostic features, such as fault reporting and status feedback, ensuring optimal operation and simplifying maintenance.

Conclusion

The GE IS200VAICH1DAA IS200VAICH1D analog input card offers precise analog-to-digital conversion in industrial control systems. With fast sampling, high resolution, and robust diagnostic capabilities, this card ensures reliable performance in critical applications across various industries.
