Overview

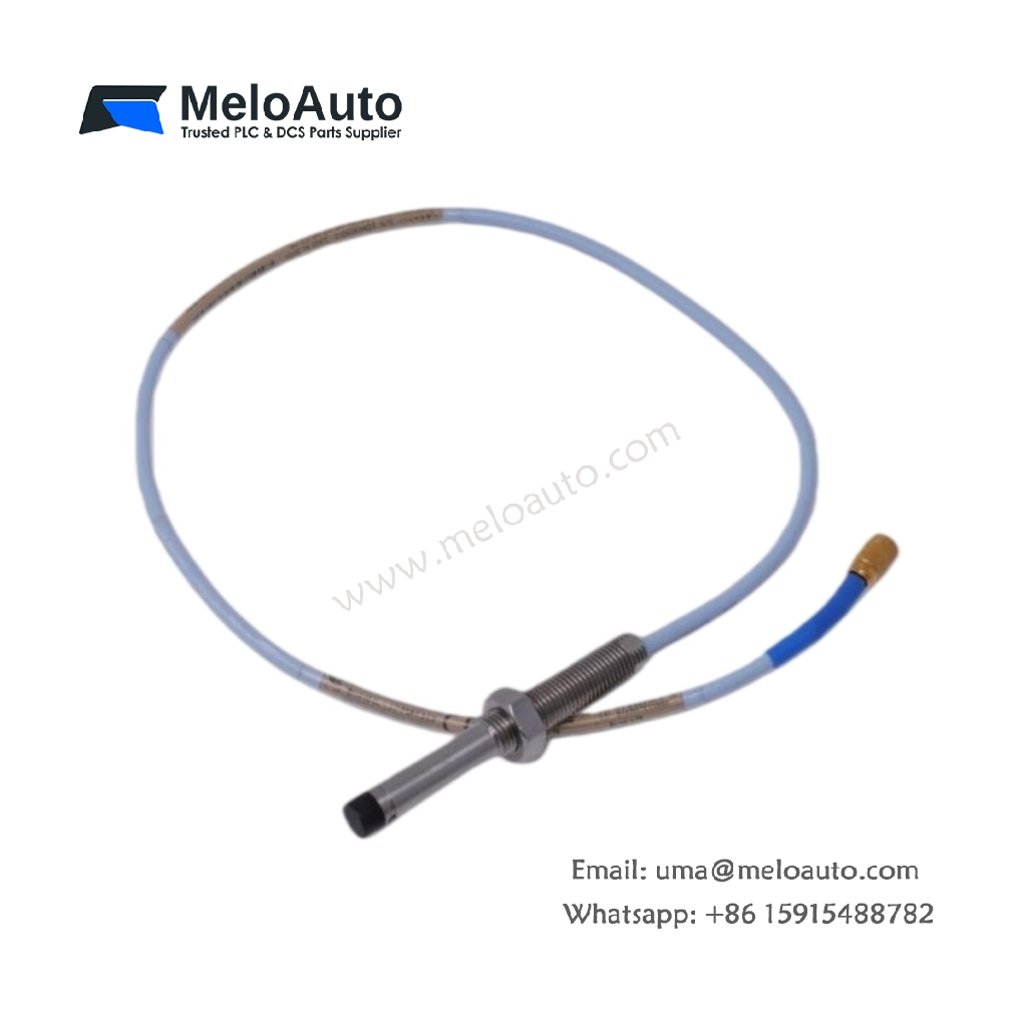

The 330101-00-20-10-02-CN belongs to the Bently Nevada 3300 XL series, a family of sensor probe cables. Engineers use this cable to carry eddy-current signals from an 8 mm probe to the Proximitor sensor. Consequently, it maintains signal integrity across the full measurement chain.
Key Technical Specifications
The 330101-00-20-10-02-CN features a 2.0-meter cable length with a China-specific configuration code. Moreover, it meets API 670 requirements for radial and axial displacement measurement. The table below lists the core parameters.
| Parameter | Specification |
|---|---|
| Product Type | Sensor probe cable |
| Series | Bently Nevada 3300 XL |
| Cable Length | 2.0 meters (6.6 ft) |
| Cable Type | Coaxial, shielded |
| Connector Type | ClickLoc coaxial, male/female |
| Compatible Probes | 3300 XL 8 mm proximity probes |
| Total System Length | 5 meters with probe and extension |
| Operating Temperature | –35 °C to +177 °C |
| Storage Temperature | –40 °C to +200 °C |
| Cable Jacket Material | Fluorinated ethylene propylene (FEP) |
| Armor Option | Flexible stainless steel available |
| Weight | Approximately 0.2 kg (0.44 lb) |
| Minimum Bend Radius | 25 mm (1.0 in) |
| Capacitance | 75 pF/m nominal |
| Compliance | API 670, CE |
Installation and Interface Details
This cable connects a 3300 XL probe to a Proximitor sensor through ClickLoc coaxial connectors. The 2.0-meter length extends the total system reach when paired with matching components. Furthermore, the ClickLoc design locks firmly, so vibrations cannot loosen the connection. As a result, technicians achieve stable signal transmission across long cable runs.
Electrical Performance and Signal Integrity
The coaxial construction shields the signal from electromagnetic interference. Meanwhile, the low capacitance of 75 pF/m preserves signal fidelity over the full cable length. Additionally, the FEP jacket resists oil, moisture, and chemicals. Therefore, the cable maintains accurate displacement readings in demanding plant environments.
Environmental and Mechanical Ratings
The FEP jacket handles temperatures from –35 °C to +177 °C. Moreover, the optional stainless steel armor protects against mechanical abrasion. The 25 mm minimum bend radius prevents kinking during installation. Consequently, the cable performs reliably in steam turbines, compressors, and offshore platforms.
Why Engineers Choose This Cable
This cable offers several practical benefits. First, it extends probe-to-sensor distance without signal loss. Second, the ClickLoc connectors simplify field assembly and reduce wiring errors. Third, its robust jacket withstands harsh industrial conditions. Therefore, maintenance teams lower installation time and replacement costs.
