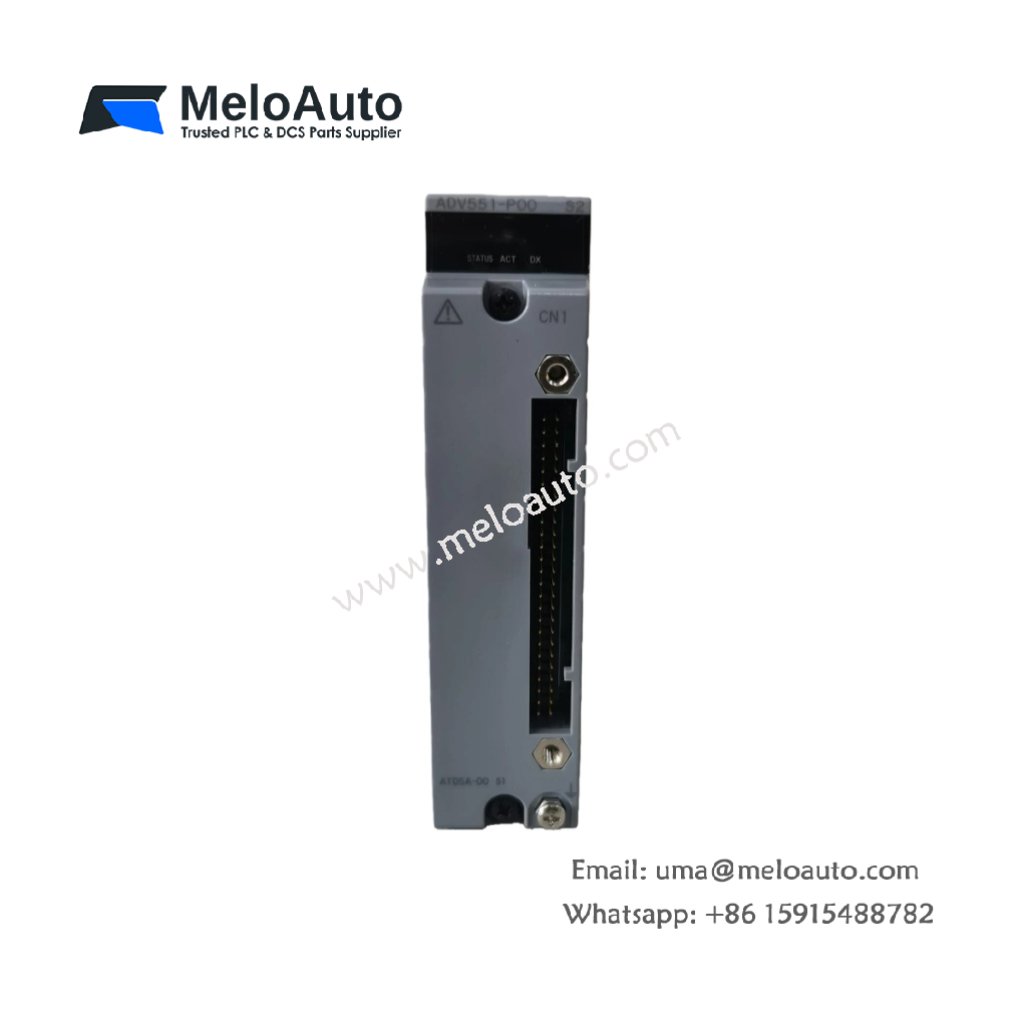

Yokogawa ADV551-P00/D5A00D Digital Output Module

Overview

The Yokogawa ADV551-P00/D5A00D is a highly reliable 16-channel digital output module designed for seamless integration with the Yokogawa CENTUM-STDCS system. Offering diagnostic functions, this module ensures efficient performance across various industrial applications. Moreover, it easily integrates into the ESB Bus Node Unit (ANB10S, ANB10D), Optical ESB Bus Node Unit (ANB11S, ANB11D), and Field Control Unit (AFV30S, AFV30D, AFV40S, AFV40D), enhancing system flexibility. Thanks to its robust design, it ensures stable operation in high-demand environments.

Technical Specifications

Specification	Details
Model Number	ADV551-P00/D5A00D
Module Type	Digital Output Module
Number of Output Channels	16 Channels
Rated Applied Voltage	24 V DC
Output Current	100 mA per channel
Output Type	Transistor Contact
Output Contact Rating	30 V DC, 100 mA (inductive and resistive load)
Output Response Time	16 ms or less
Pulse Width	8 ms to 7200 s
Pulse Width Resolution	8 ms, with a maximum 1 ms added for ON/OFF delay
Compatible Systems	Yokogawa CENTUM-STDCS system
External Connection	Supports pressure clamp terminal, MIL connector
Weight	Approx. 0.3 kg
Dimensions	Length: 210 mm, Width: 120 mm, Height: 40 mm

Key Features & Benefits

High Reliability and Performance: The ADV551-P00/D5A00D delivers consistent, dependable performance, even in demanding conditions, making it ideal for critical applications.
Effortless Integration: This module integrates seamlessly with Yokogawa CENTUM-STDCS systems, reducing setup time and ensuring compatibility.
Versatile Output Signals: The module supports various output signals, including transistor contact, making it adaptable for diverse industrial tasks.
Dual Redundant Configuration: It offers dual redundant configurations, enhancing system availability and fault tolerance.
Optimized Control: With a fast output response time of 16 ms, the ADV551-P00/D5A00D enables precise and efficient control.

Applications

The Yokogawa ADV551-P00/D5A00D excels in numerous applications, including:

Controlling Pumps, Fans, and Compressors: Efficiently manage and optimize motor-driven equipment in process industries.
Valve Control: Open and close valves as needed, ensuring optimal flow and pressure management.
Solenoid Coil Operation: Power solenoid valves to automate various industrial processes.
Motor Control: Start and stop motors with high accuracy for smooth system operation.
Electrical Device Switching: Turn lights, alarms, and other devices on and off based on system requirements.

Additional Information

Easy Installation and Maintenance: The ADV551-P00/D5A00D features a user-friendly design, simplifying installation and ensuring easy maintenance.
Diagnostic Functions: This module includes built-in diagnostic features, enabling proactive monitoring of system health and reducing downtime.
