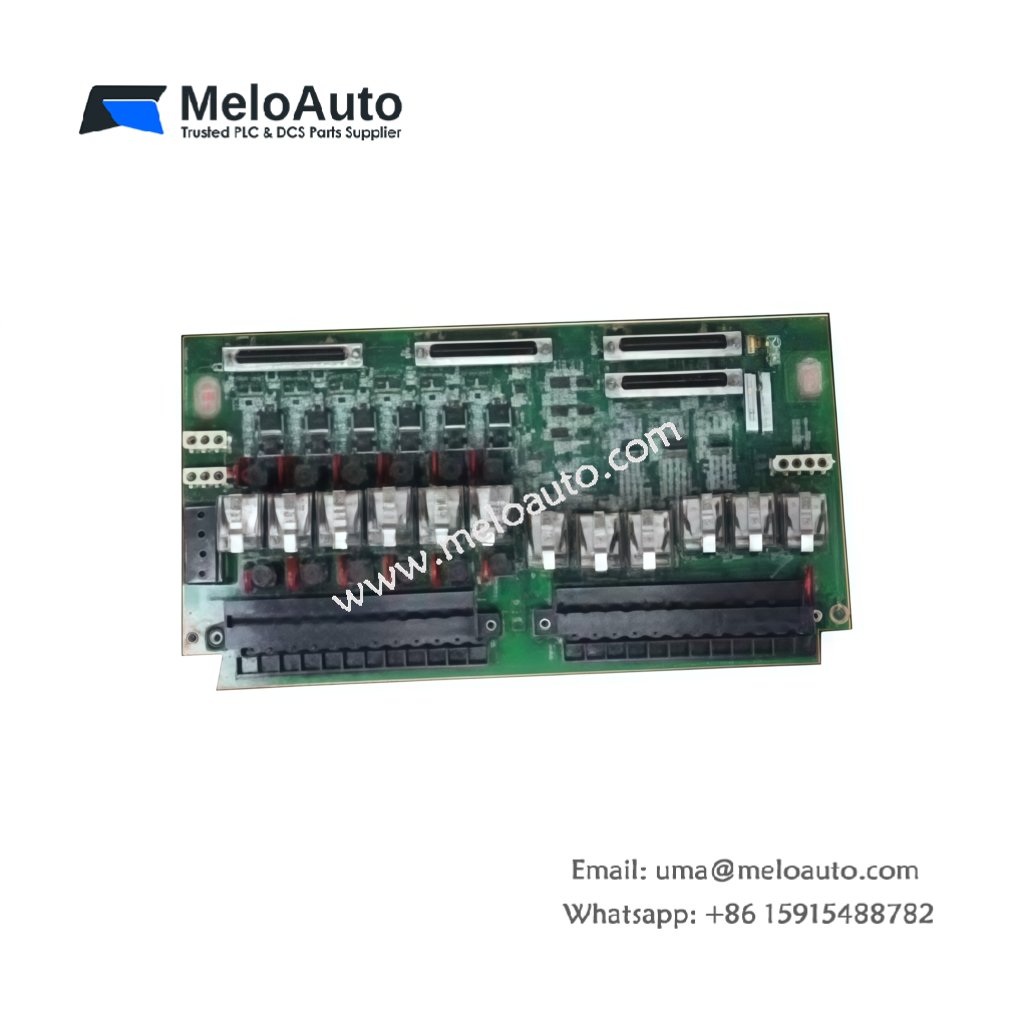

GE IS200TRLYH1BGF Relay Board

This relay output board provides discrete switching for GE Mark VI turbine controls. You will find the GE IS200TRLYH1BGF Relay Output Board activating solenoids, contactors, and annunciator devices. Its eight independent relays offer flexible field control for auxiliary systems.

Technical Specifications

This board contains eight electromechanical relays with form C contacts. You can also locate one terminal block for field wiring connections. The GE IS200TRLYH1BGF Relay Output Board stores no battery energy for configuration retention. Instead, it uses passive components for all signal routing. Therefore, this board never requires any routine battery replacement.

Parameter	Specification
Full Product Name	GE IS200TRLYH1BGF Relay Output Board
Series	Mark VI / Speedtronic
Product Type	Relay Output Board
Weight	0.61 kg
Length	27.0 cm
Width	17.5 cm
Relay Outputs	8
Relay Type	Electromechanical, form C
Contact Rating	250 VAC / 5 A, 30 VDC / 5 A
Coil Voltage	24 VDC
Response Time	10 ms typical
Terminal Block	1 (removable, 24 positions)
Status LEDs	8 (one per relay)
Connector Type	1 x 50-pin ribbon
Energy Storage	None (passive only)

Output Control Details

The GE IS200TRLYH1BGF Relay Output Board draws its coil power from the 24 VDC backplane supply. You can connect field devices directly to the removable terminal block. Each relay switches independently under processor command without interaction. Moreover, the status LEDs illuminate when the corresponding relay energizes. This design provides immediate visual feedback for troubleshooting and commissioning.

Mechanical Integration and Mounting

You must mount the GE IS200TRLYH1BGF Relay Output Board onto the designated standoffs inside the cabinet. After positioning, secure the board using four M3 screws through the corner holes. The board measures exactly 27.0 centimeters in length and 17.5 centimeters in width. Its total weight reaches approximately 0.61 kilograms for straightforward handling. Furthermore, the eight status LEDs provide real-time indication of output states.

Environmental and Storage Guidelines

You should store this GE IS200TRLYH1BGF Relay Output Board in a dry location away from dust. The board operates reliably between -30°C and +65°C ambient temperature. Likewise, keep the unit away from conductive debris or excess vibration. Because the relays are sealed, they require no maintenance over their mechanical life of 10 million operations.
