GE IS200EPCTG1A Input/Output Terminal Board

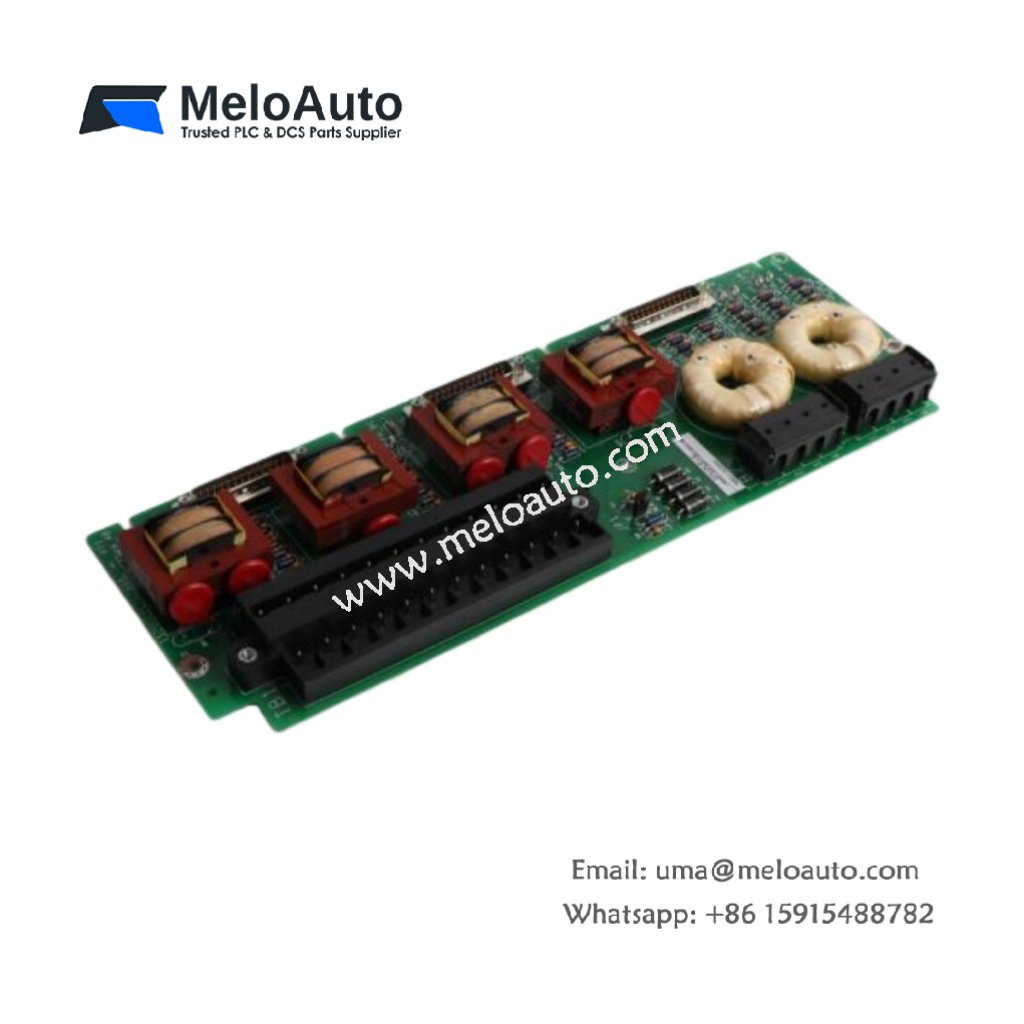

The IS200EPCTG1A is an Input/Output terminal board designed for the EX2100 series by General Electric (GE). This board is engineered to receive and condition feedback from generator current transformers (CT) and potential transformers (PT), playing a critical role in signal conditioning and isolation. It ensures accurate processing of generator data for efficient control system operation.

Key Features and Technical Specifications:

Specification	Details
Model	IS200EPCTG1A
Board Type	Input/Output Terminal Board
Product Line	EX2100 Series
Manufacturer	General Electric (GE)
Input Voltage Range (PT)	Two three-phase generator voltages
Current Input Range (CT)	1 A to 5 A, from two generators
Analog Input Range	0-10 V or 4-20 mA
Wire Gauge (CT and EPCT connection)	Up to #10 AWG
Cable Length (CT and EPCT connection)	Up to 1000 feet
Functionality	Signal conditioning, scaling, and isolation of CT and PT signals

Performance Overview:

The IS200EPCTG1A board processes both voltage and current inputs from CTs and PTs. It supports a 0-10 V or 4-20 mA analog input range, which makes it highly adaptable to various signal conditioning needs. The board is capable of scaling and isolating the signals it receives from the transformers, ensuring that the data is processed accurately before being passed to the control system.

The board’s flexibility extends to its connection capabilities, as it supports wire gauges up to #10 AWG and cable lengths as long as 1000 feet. This allows it to accommodate large setups and long-distance signal transmission while maintaining high performance.

Key Features:

Signal Conditioning: The IS200EPCTG1A acts as a signal conditioner that isolates and scales the transformer signals.
High Compatibility: It can handle voltage and current inputs from two three-phase generators.
Durable Wiring: The board supports up to #10 AWG wiring and cables as long as 1000 feet, ensuring robust connections in diverse environments.

Availability:

While the IS200EPCTG1A board is becoming increasingly difficult to find in the market, it is still available, especially through specialized suppliers like AX Control. We strive to maintain a steady stock of this critical part to support your industrial needs.
