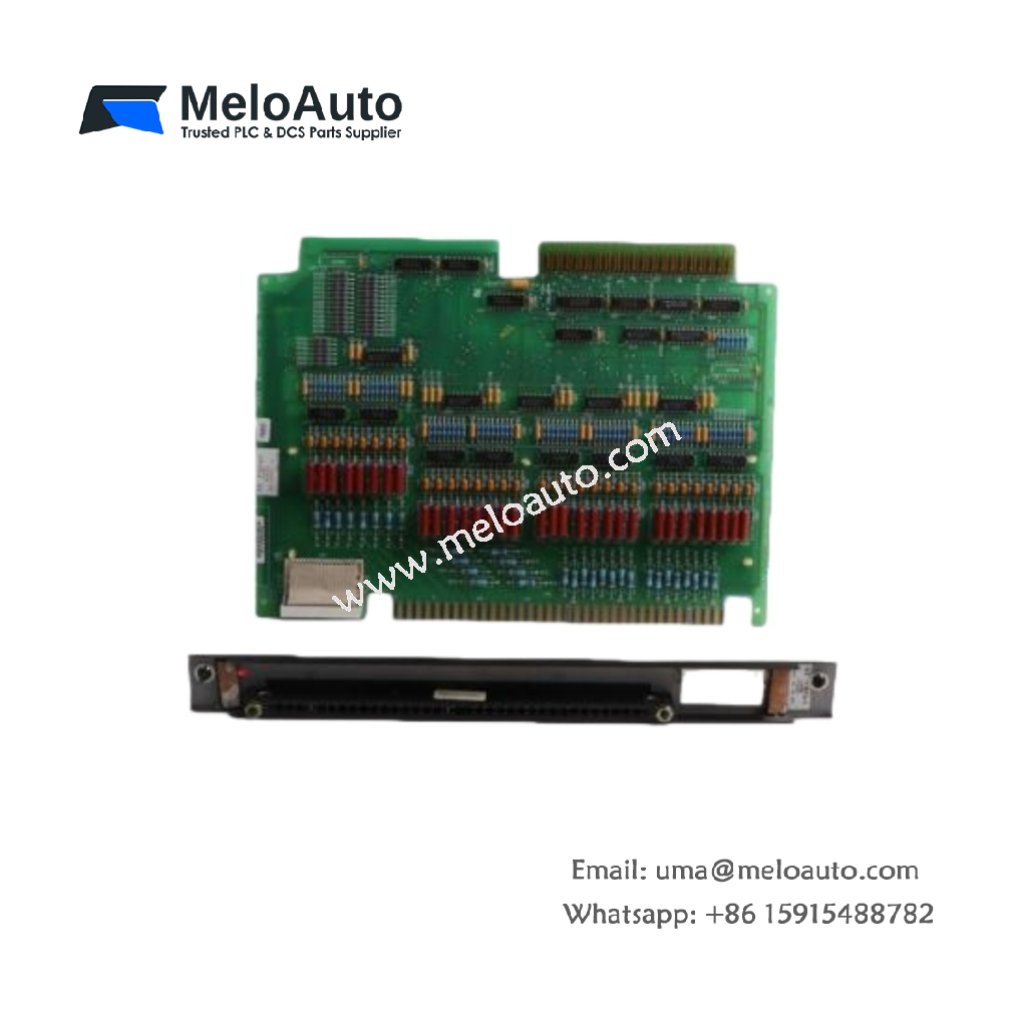

GE IC600BF843 Analog Input Module for Series Six

The IC600BF843 is an efficient analog input module from GE Fanuc Emerson, designed specifically for the Series Six control system. This module processes eight distinct inputs and supports a wide range of voltage and current signals. It delivers exceptional accuracy, making it ideal for industrial applications that demand high precision and reliability.

Key Features and Technical Specifications:

Specification	Details
Manufacturer	GE Fanuc Emerson
Product Type	Analog Input Module
Product Line	Series Six
Part Number	IC600BF843
Weight	6.00 lbs (2.72 kg)
Number of Inputs	8 Inputs
Input Voltage Range	0 to 10V, -10 to 10V
Current Input Range	4 to 20 mA (1 to 5V)
Typical Voltage Input Accuracy	0.025% of Full Scale at 25°C
Max Voltage Input Accuracy	0.050% of Full Scale at 25°C
Typical Current Input Accuracy	0.075% of Full Scale at 25°C
Max Current Input Accuracy	0.125% of Full Scale at 25°C
Resolution	12 Binary Bits
LED Indicators	Yes
Operating Temperature	0 to 60°C (at the outside of the rack)

High-Performance Input Capabilities:

The IC600BF843 module is built for versatility, offering multiple input ranges such as 0 to 10V, -10 to 10V, and 4 to 20 mA (with a 1 to 5V range). This flexibility allows it to cater to a wide array of industrial systems and control applications. With 12-bit resolution, it captures fine-grained data, making sure every measurement is as precise as possible.

Moreover, its voltage accuracy is excellent. You can rely on a 0.025% accuracy under typical conditions at 25°C. Even at maximum voltage input, accuracy remains within 0.050%, ensuring consistent and reliable readings. For current inputs, the module achieves a typical accuracy of 0.075% and a maximum accuracy of 0.125%, both measured at 25°C.

Designed for Reliability and Easy Monitoring:

The IC600BF843 excels in both performance and usability. With LED indicators, you can quickly check the operational status of the module, facilitating smooth diagnostics. Its operating temperature range of 0°C to 60°C means the module can operate in most industrial environments without risk of overheating or failure.

Additionally, its lightweight design (weighing just 2.72 kg) and compact size make it easy to install in Series Six racks, maximizing space and minimizing installation complexity.

Installation and Maintenance:

To install the IC600BF843, secure it within the Series Six rack system. Once installed, verify all connections and input ranges to ensure optimal functionality. You can rely on the module’s durability, but it’s recommended to regularly check its performance to maintain its high accuracy levels.
