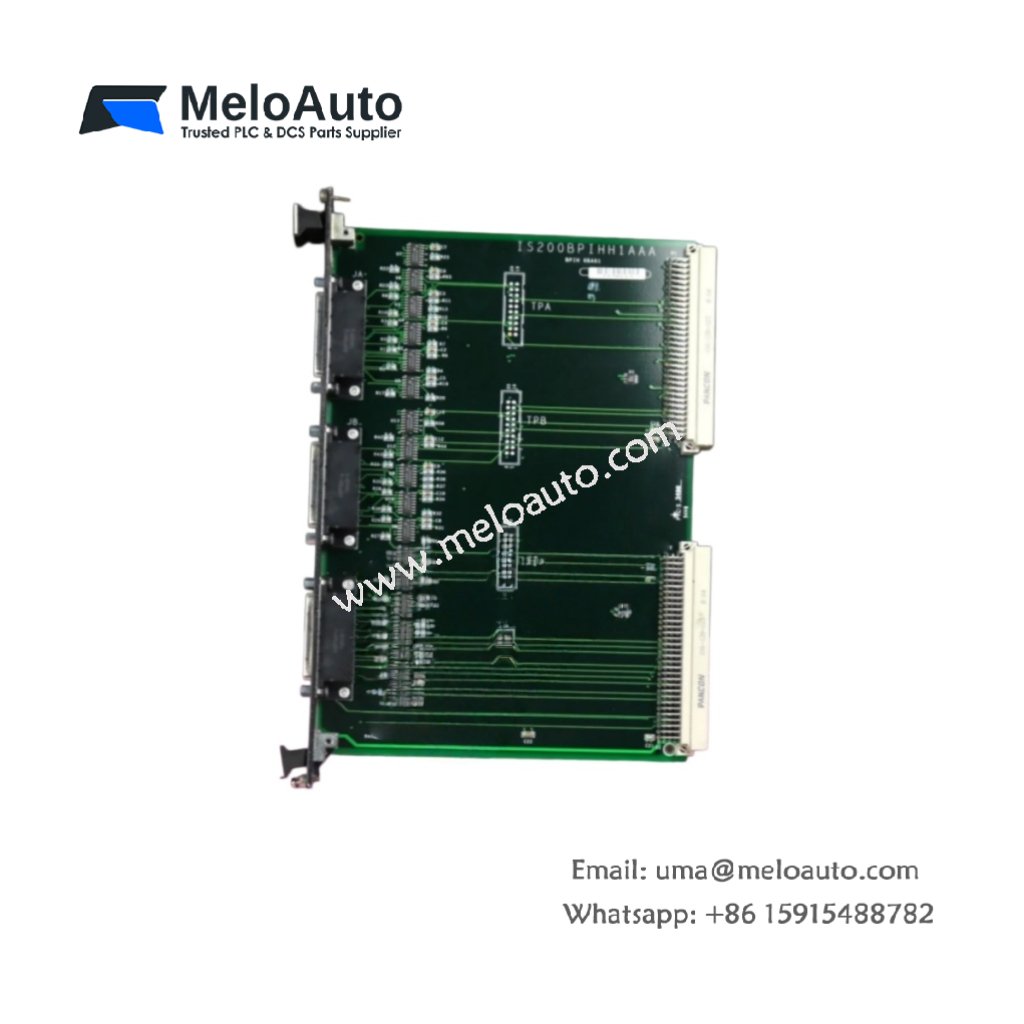

GE IS200BPIHH1A IS200BPIHH1AAA Speedtronic Control Board

The GE IS200BPIHH1A IS200BPIHH1AAA serves as a dedicated PCB for the Mark VI series. This board manages power distribution and signal routing within the control assembly. You will find this unit in many industrial turbine automation systems. General Electric designed this board for the Speedtronic turbine control platform. Its robust construction ensures reliable operation in harsh environments.

Technical Specifications

This board integrates over 140 discrete components onto a multi-layer PCB. Its dimensions measure roughly 9.2 inches wide by 8.0 inches high. The total weight reaches about 0.85 kilograms including the mounting bracket. Four 40-pin headers handle signal connections to other boards. Two power connectors bring DC voltage into the assembly. One backplane slot provides additional data paths. The design stores up to 380 joules of capacitive energy for stable power filtering.

Functional Layout and Signal Management

The GE IS200BPIHH1A IS200BPIHH1AAA routes signals efficiently across multiple board layers. Each trace carries specific control or feedback signals for turbine operation. Moreover, the board isolates sensitive analog lines from digital noise sources. This variant includes upgraded capacitors for better voltage regulation. General Electric specifically designed this PCB for the Mark VI Speedtronic system. You can replace an older board with this unit without changing the rack configuration.

Installation Guidelines and Compatibility

This control board mounts directly into a standard Mark VI rack slot. Always disconnect system power before handling the GE IS200BPIHH1A IS200BPIHH1AAA. The board works with existing GE Mark VI backplanes and I/O cards. Verify your firmware revision supports this variant. This board maintains backward compatibility with earlier Mark VI versions. Proper installation ensures stable power distribution and reliable system control.
