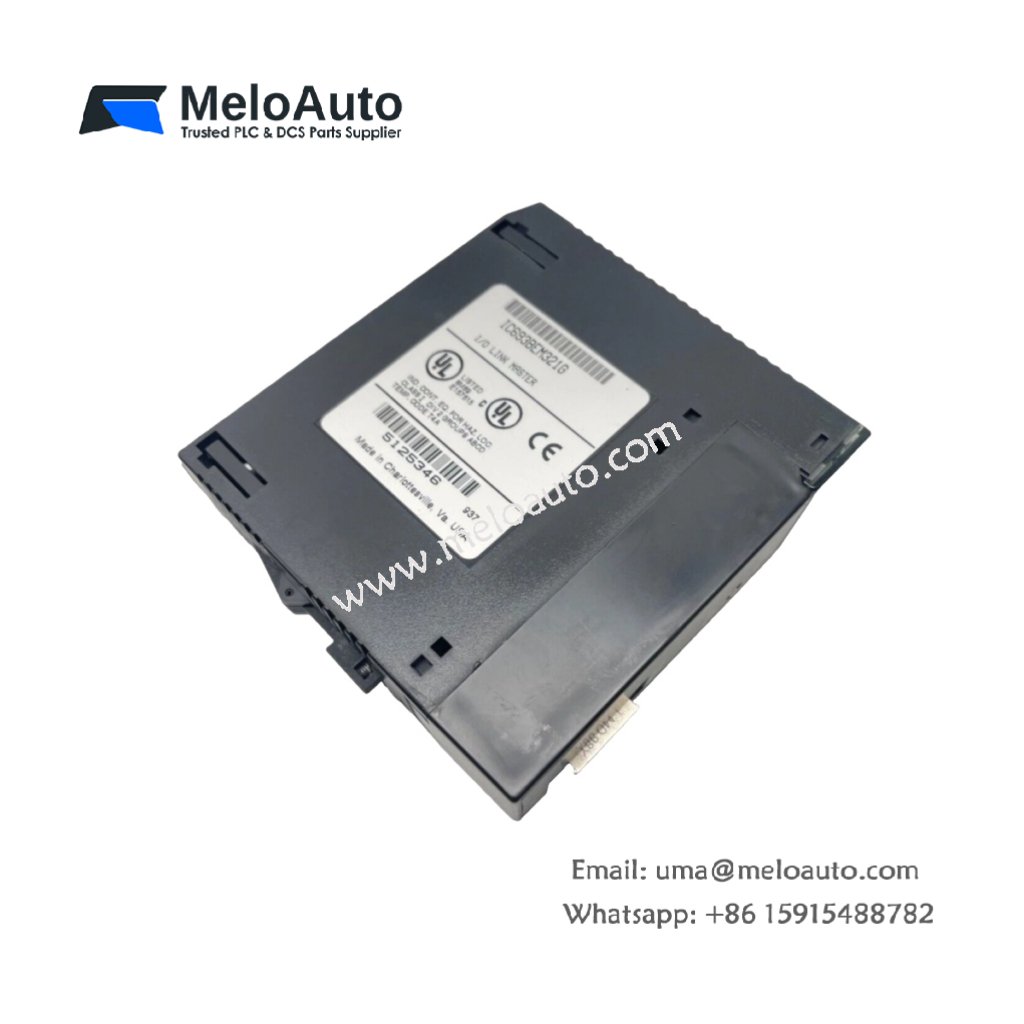

GE IC693BEM321 I/O Link Master Module

Overview

The GE IC693BEM321 is an I/O Link Master Module designed for GE Fanuc Series 90-30 and 90-70 PLCs. This powerful module connects with up to 16 slave modules, allowing it to manage complex systems that require fast response times. The module supports up to 1024 input points and 1024 output points, providing extensive I/O capacity for demanding applications.

Key Features

Efficient Communication: Connects up to 16 slave modules, ensuring smooth communication between field devices and the PLC system.
High I/O Capacity: The IC693BEM321 supports up to 1024 input points and 1024 output points, making it ideal for large-scale systems.
Easy Installation: Install this module in a single slot on the Series 90-30 or 90-70 backplane, offering a flexible and compact solution.
Universal Compatibility: It supports universal backplanes, simplifying integration into various system configurations.
20-Pin Connector: The module utilizes a 20-pin Honda socket connector, making the setup straightforward.

Technical Specifications

Parameter	Specification
Manufacturer	GE Fanuc Emerson
Product Line	Series 90-30
Part Number	IC693BEM321
Weight	0.56 lbs (0.26 kg)
Module Type	I/O Link Interface
Number of Slots	1 (Single slot)
Backplane Support	Universal Backplane
Input Points	1024
Output Points	1024
Available Connector	20-pin Honda socket
PLCs Supported	GE Fanuc Series 90-30, 90-70 series
Max Number of Slaves	16

Description

The GE IC693BEM321 is a versatile I/O Link Master Module that facilitates seamless communication between up to 16 slave modules and GE Fanuc Series 90-30 or 90-70 PLCs. It handles up to 1024 input points and 1024 output points, making it an excellent choice for high-speed process control.

With universal backplane support, the IC693BEM321 integrates easily into existing systems, reducing installation time and complexity. The module connects via a 20-pin Honda socket, ensuring reliable communication with slave modules. Additionally, it uses a single slot for installation, which saves space and streamlines system configuration.

This module serves as the core of a complex I/O system by managing digital inputs and outputs. It transmits input signals from slave devices to the PLC and returns control signals to the field actuators. You can configure the IC693BEM321 using either a GE Fanuc hand-held programmer or proprietary software.

In summary, the GE IC693BEM321 offers a highly efficient and scalable solution for industrial automation, particularly in process control and automation systems that require large I/O capacity and fast response.
