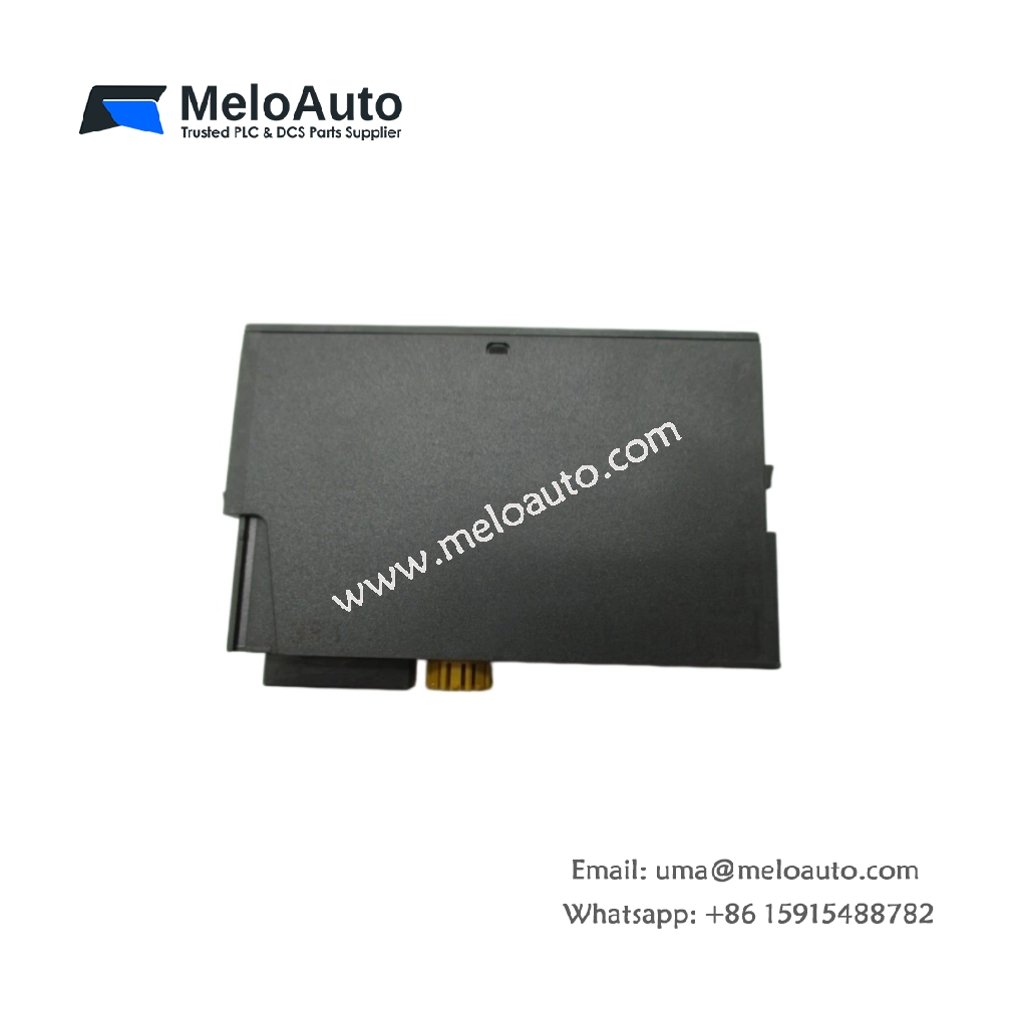

The Siemens 6ES7132-4HB10-0AB0 provides high-quality relay switching for ET 200S systems. This module drives AC and DC loads with complete electrical isolation. It offers four independent relay outputs for flexible field device control. You will achieve reliable switching for motors, valves, and indicator lamps. This module suits applications requiring high inrush current capability.
Physical Dimensions and Mounting Specifications
This relay output module features a compact design for terminal block installation. Its physical dimensions are 81 mm in height, 15 mm in width, and 52 mm in depth. It weighs approximately 0.07 kilograms for straightforward handling. The operating temperature ranges from 0°C to +55°C. This thermal range supports most industrial cabinet installations.
Output Channel Configuration and Contact Ratings
The Siemens 6ES7132-4HB10-0AB0 provides four normally open relay contacts. Each contact handles 5 A at 24 V DC or 230 V AC. The module delivers a maximum switching power of 1250 VA for AC loads. It also handles 120 W for DC resistive loads effectively. The contacts feature silver alloy material for reliable switching.
Load Compatibility and Switching Performance
This module handles resistive, inductive, and capacitive loads without issues. It supports inrush currents up to 10 A for short durations. The Siemens 6ES7132-4HB10-0AB0 provides a mechanical life of 10 million operations. The electrical life reaches 100,000 operations at rated load. The module includes built-in contact protection for inductive loads.
Diagnostic and Status Monitoring Features
The module provides diagnostic capabilities through the backplane interface. It detects load voltage faults and short-circuit conditions. The Siemens 6ES7132-4HB10-0AB0 includes LED indicators for each output channel. These LEDs show the active state of every relay contact. The module also indicates power supply status through a separate LED.
Component Architecture and Build Quality
The device contains approximately 60 discrete electronic components. Engineers use high-quality relays with gold-plated contacts. The PCB features isolation barriers for safety separation. This design ensures reliable performance over the product lifetime.
Technical Specifications Summary
| Parameter | Specification |
|---|---|
| Dimensions (H × W × D) | 81 mm × 15 mm × 52 mm |
| Weight | Approx. 0.07 kg |
| Operating Temp | 0°C to +55°C |
| Output Channels | 4 relay outputs |
| Contact Type | Normally open (NO) |
| Max Voltage | 230 V AC / 24 V DC |
| Max Current | 5 A continuous |
| Inrush Current | Up to 10 A |
| Mechanical Life | 10 million operations |
| Components | Approx. 60 discrete parts |
Application Areas and System Integration
The Siemens 6ES7132-4HB10-0AB0 connects easily to ET 200S terminal blocks. It suits applications with mixed AC and DC voltage requirements. You can use this module for conveyor control and valve actuation. The module also works well for alarm and signaling applications. You gain reliable galvanic isolation with this relay output solution.
