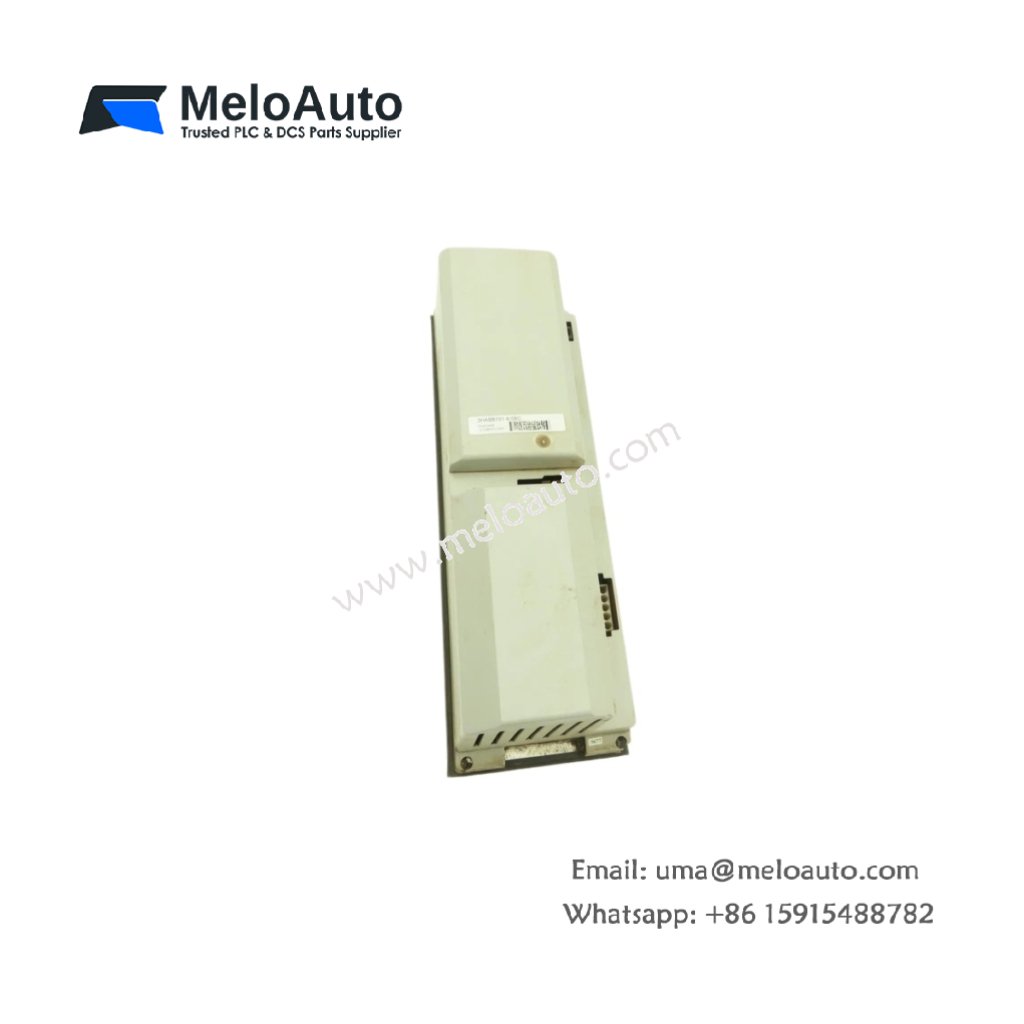

ABB 3HAB8101-6/06C Robot Servo Drive Rectifier Unit

Technical Specifications and Power Delivery

The ABB 3HAB8101-6/06C servo drive unit, also known as the DSQC346B, serves as a high-performance power amplifier for the ABB S4C and S4C+ robot controller families. This module converts control signals from the axis computer board into precise drive currents for single-axis servo motors. It delivers a continuous output current of 10 A and handles peak currents up to 30 A for short durations. The unit operates on a three-phase 400V AC ±10% input at 50/60 Hz and consumes approximately 150 W typically, peaking at 500 W. Its weight measures about 3.5 kg, and the product originates from Sweden or Switzerland.

Functional Capabilities and Closed-Loop Control

The 3HAB8101-6/06C module actively performs power amplification, converting low-level control signals into high-current drive outputs for servo motors. It implements real-time closed-loop control by continuously sampling motor current, speed, and position feedback to ensure precise axis positioning and velocity regulation. The unit integrates comprehensive protection features, including overcurrent, overvoltage, undervoltage, overtemperature, overload, and motor phase-loss detection, triggering safe shutdown and alarms when faults occur. Furthermore, it incorporates a braking control interface for rapid motor deceleration and energy dissipation. The module communicates with the axis computer board via the S4C internal bus, exchanging command signals and reporting operational status in real time.

Application Scenarios and System Integration

This servo drive unit suits multi-axis robotic applications requiring synchronized motion control across demanding automation environments. It integrates seamlessly with ABB S4C and S4C+ robot controllers and is compatible with IRB series robots including 1400, 2400, 4400, 6400, and 6600. Typical deployments include robotic welding cells, material handling systems, assembly lines, and machine tending operations. The ABB DSQC346B works alongside axis computer boards such as DSQC335 and DSQC345B, and receives feedback from resolver or incremental encoder-based servo motors. For system integrators maintaining legacy S4C-based robot cells, this drive unit represents a critical replacement component, though ABB has discontinued it and recommends long-term migration to the IRC5 platform where DSQC668 axis drive modules assume similar functions.
