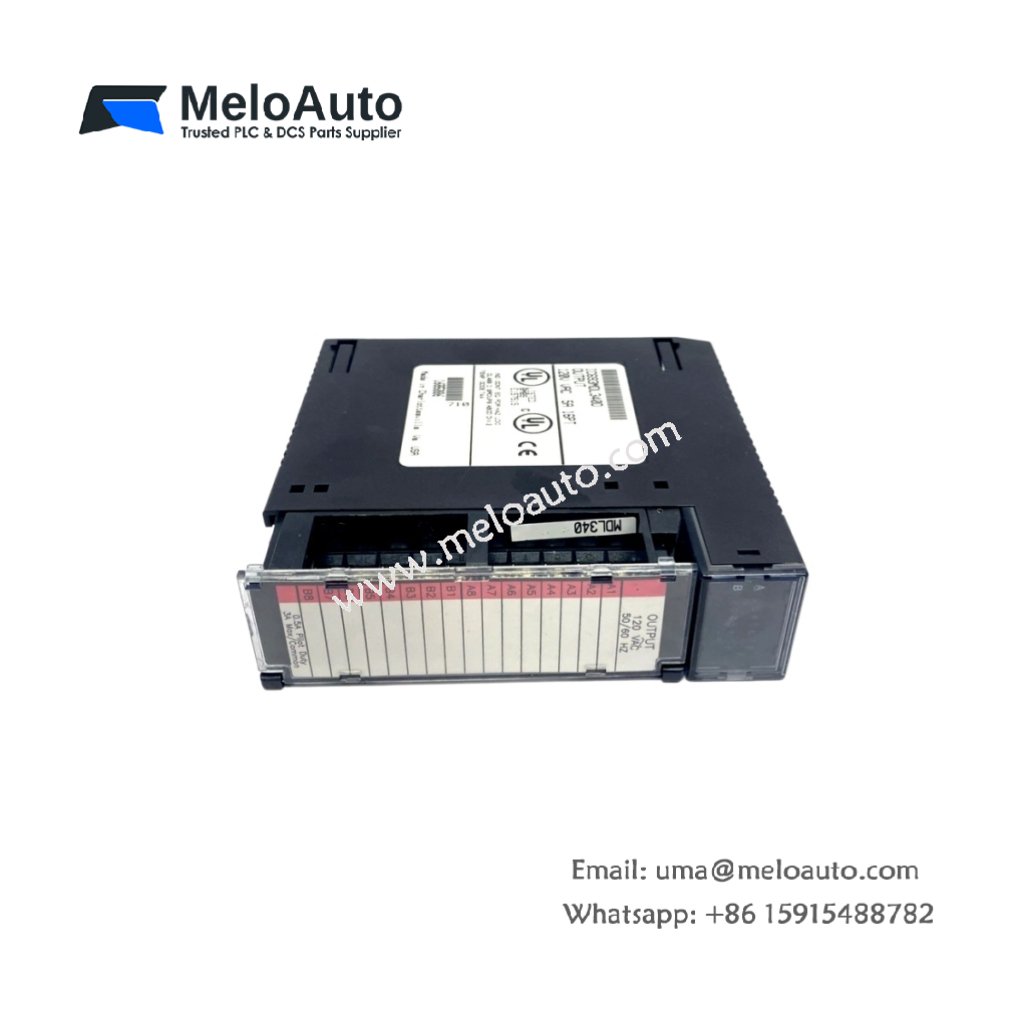

GE IC693MDL340D Output Module

The IC693MDL340D functions as a high-density output module for the Series 90-30 PLC system. This unit drives up to thirty-two field devices from a single rack slot. It controls solenoids, relays, and indicator lights with positive logic signals. Therefore, this module maximizes I/O density for space-constrained control panels.

Technical Specifications

We engineered this output module for demanding industrial switching applications. Its compact single-slot design provides thirty-two outputs in a small footprint. Moreover, the module includes built-in surge suppression for inductive load protection.

Parameter	Specification
Dimensions (H x W x D)	5.5 x 1.2 x 4.5 inches (140 x 30 x 114 mm)
Weight	0.36 kg (0.8 lbs)
Output Channels	32 discrete outputs
Output Type	Positive logic (sourcing) DC
Output Voltage Range	12-24V DC (10.2-30V DC)
Output Current	0.25 A per channel, 2 A per common
Inrush Current	1.0 A for 10 ms maximum
Off-State Leakage	0.5 mA maximum
Switching Speed	1 ms on, 1 ms off typical
Number of Commons	4 commons with 8 points each
Protection	Overcurrent and short-circuit
Internal Power Draw	180 mA from 5V DC backplane
Operating Temperature	0°C to 60°C (32°F to 140°F)

Output Circuit Design

The IC693MDL340D uses MOSFET technology for each of its thirty-two outputs. Each channel sources current from the external DC supply to the load. Individual LED indicators show the status of every output point immediately. Consequently, you can troubleshoot field wiring without any external test equipment.

Protection Features and Load Handling

This output module includes built-in overcurrent protection on each channel. The module also provides flyback diode suppression for inductive loads. Each common group handles up to 2 amperes total across its eight points. Therefore, you can mix different voltage groups on the same module safely.

Switching Performance and Response Time

The IC693MDL340D turns outputs on within 1 ms of the logic command. It turns outputs off with the same speed for precise control. The module handles high-inrush loads like small solenoids without contact wear. Hence, this output module suits high-speed assembly and packaging applications.

Power Requirements and Energy Storage

This module draws 180 mA from the 5V DC backplane supply only. It does not require any external 24V power for internal logic operation. The module contains no battery or capacitor energy storage components. All output states reset to off during PLC power loss for safe machine operation.

Isolation and Voltage Rating

The IC693MDL340D provides optical isolation between logic and field circuits. This isolation withstands 1500V AC between backplane and outputs. The module operates with any DC voltage from 12 to 24 volts. Hence, the same module works on 12V or 24V systems without configuration changes.

Installation and Wiring

Mount the IC693MDL340D into any Series 90-30 rack slot securely. Connect your field devices to the removable terminal block using 22 AWG wire. Use a 2.5 mm flat-blade screwdriver for all terminal screw connections. Verify each common connection matches your load voltage requirements before applying power. Always turn off system power before inserting or removing this module.
