Siemens 6ES5327-7LA11 Adaptor Module

Technical Specifications and Module Design

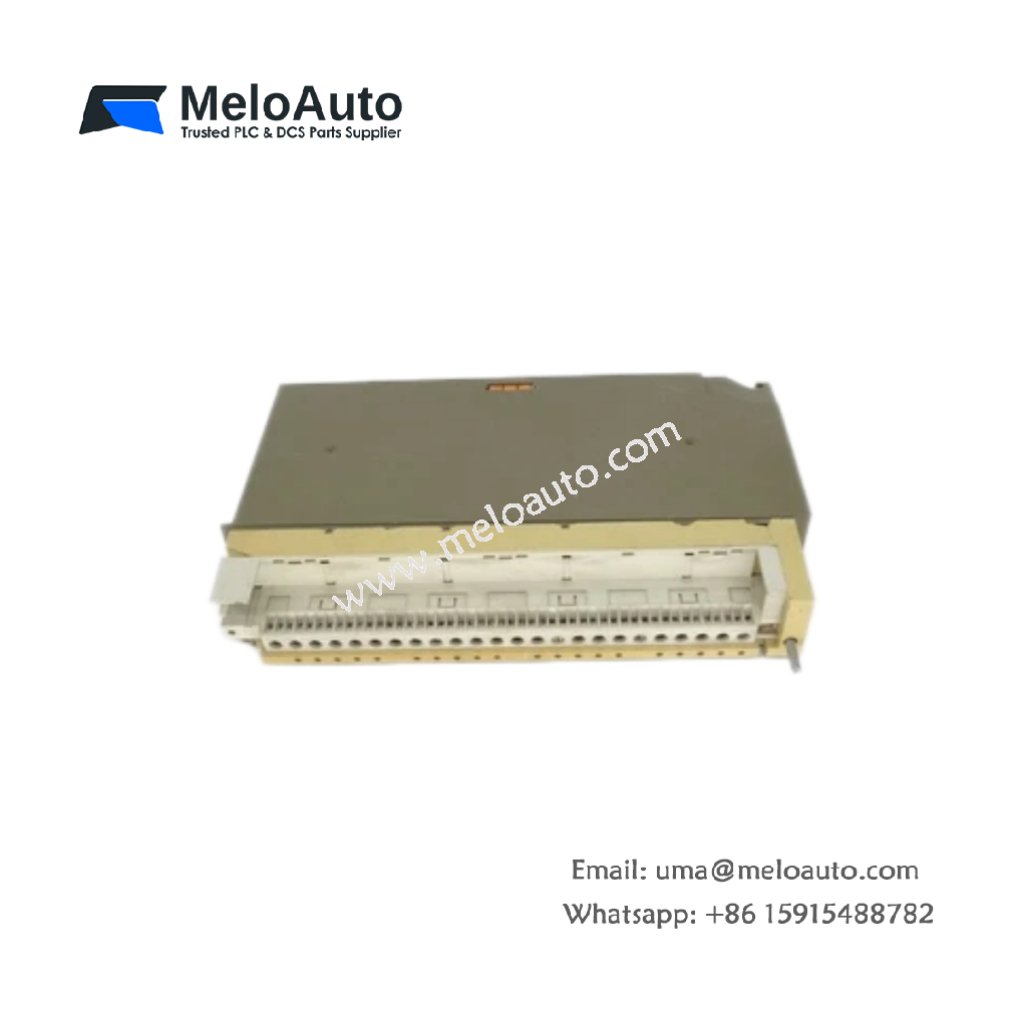

This adaptor module connects peripheral devices to Siemens SIMATIC S5 I/O systems. The Siemens 6ES5327-7LA11 converts signal levels between the backplane and external equipment. You can install this module into any standard S5-115U or S5-135U rack slot. Its compact design facilitates connections to non-Siemens field devices. The module weighs approximately 0.44 kilograms. Its dimensions measure 25 cm in height, 5 cm in width, and 21 cm in depth.

Parameter	Specification
Brand	Siemens
Model	6ES5327-7LA11
Category	Adaptor Module / Signal Conversion Unit
Weight	0.44 kg
Height	25 cm
Width	5 cm (single slot)
Depth	21 cm
Number of Channels	8 channels
Input Signal Range	±10V DC, 0-20 mA, 4-20 mA (selectable)
Output Signal Range	±10V DC, 0-20 mA, 4-20 mA (selectable)
Input Impedance	100 kΩ (voltage), 250 Ω (current)
Output Drive Capability	10 mA (voltage), 500 Ω (current)
Accuracy	±0.2% of full scale
Resolution	12-bit (0.0024V or 0.002 mA)
Response Time	5 milliseconds typical
Isolation Voltage	500V AC between signal and logic
Energy Storage	None (no battery)
Component Count	Single PCB with ADCs, DACs, and signal conditioners

Signal Conversion and Conditioning

The module converts analog signals between field devices and the S5 backplane. Each channel operates as an input or output independently. The Siemens 6ES5327-7LA11 accepts voltage or current signals on the same terminal. You can select the signal type using an onboard DIP switch. The module scales the raw signal to match the S5’s internal representation. A green LED indicates proper power and communication status. The module provides isolation between each channel to prevent ground loops.

Configuration and Addressing

You configure the module using the S5 programming software. Each channel occupies one word in the I/O address space. The Siemens 6ES5327-7LA11 supports both 4-20 mA and 0-20 mA current loops. The module includes a built-in linearization function for thermocouples. An 8-position DIP switch sets the module’s base address. The module automatically scales engineering units to raw digital values.

Installation and Operational Guidelines

You must insert this module into any standard S5 I/O rack slot. The backplane supplies 5V and 24V DC power to the module automatically. The Siemens 6ES5327-7LA11 draws approximately 200 mA from the 5V supply rail. You must use shielded twisted-pair cables for all analog connections. This practice prevents electrical noise from corrupting signal measurements. The module requires no external battery for normal operation. You should verify the DIP switch settings before applying power. Incorrect settings will cause addressing conflicts with other modules.
