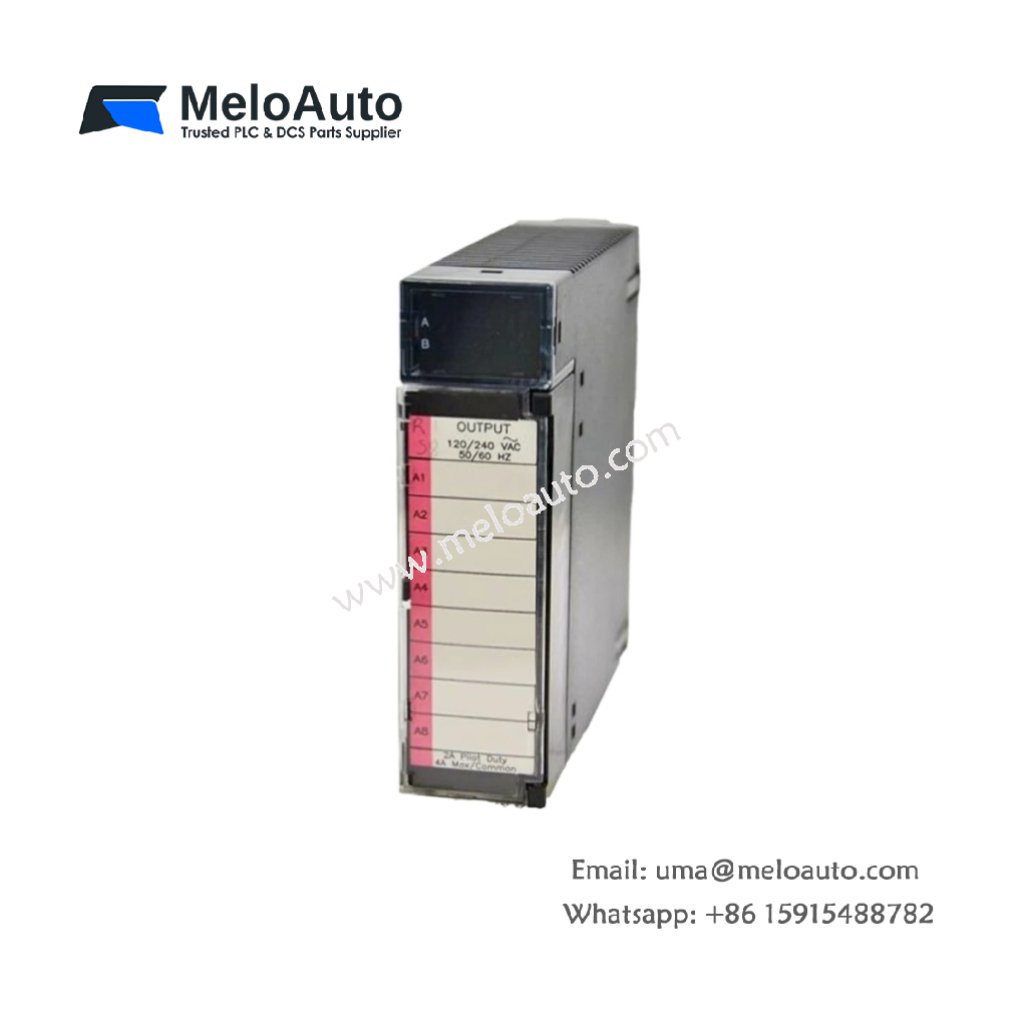

GE IC693MDL330F AC Output Module | Series 90-30 8-Channel

The IC693MDL330F switches AC loads from GE Series 90-30 PLC outputs. This module drives solenoids, contactors, and motor starters in industrial systems. You can rely on it for reliable AC load control in factory automation.

Key Technical Parameters

The table below lists all essential technical specifications for this AC output module.

Specification	Details
Part Number	IC693MDL330F
Product Type	AC Output Module
Compatibility	GE Series 90-30 PLC systems
Number of Outputs	8 AC outputs
Output Type	Triac (solid-state)
Output Voltage	85V to 264V AC (47-63 Hz)
Output Current	2 A per channel (maximum)
Total Output Current	8 A maximum (per module)
Output Protection	Internal snubber circuit
Response Time	1/2 cycle typical (8-10 ms)
Leakage Current	< 2 mA when OFF
Dimensions (W x H x D)	140 mm x 110 mm x 55 mm
Weight	Approx. 0.48 kg
Terminal Type	Screw terminal block
Power Supply	5V DC from backplane
Current Consumption	180 mA
Operating Temperature	0°C to 55°C

Physical Characteristics and Installation

This AC output module weighs approximately 0.48 kg for standard rack mounting. Its dimensions measure 140 mm x 110 mm x 55 mm for Series 90-30 chassis. First, slide the IC693MDL330F into a free I/O rack position. Then, connect your AC loads to the screw terminals. Finally, secure the module using the top and bottom locking tabs. LED indicators on the front show the status of every output channel.

Output Specifications and Current Ratings

The IC693MDL330F provides 8 triac outputs for switching AC loads. Each output handles voltages from 85V to 264V AC at 47-63 Hz. The maximum current per channel reaches 2 A for solenoids and contactors. The total module current limit sits at 8 A for thermal protection. The response time measures one-half cycle or approximately 8-10 milliseconds. Leakage current stays below 2 mA when the output remains OFF.

Protection Features and Power Requirements

This output module includes internal snubber circuits for inductive load protection. The snubber reduces voltage spikes from contactors and motor starters. The IC693MDL330F draws 180 mA from the 5V DC backplane supply. You do not need an external power source for the switching logic. Use this module for AC motors, heaters, lighting, and other AC-powered devices.
