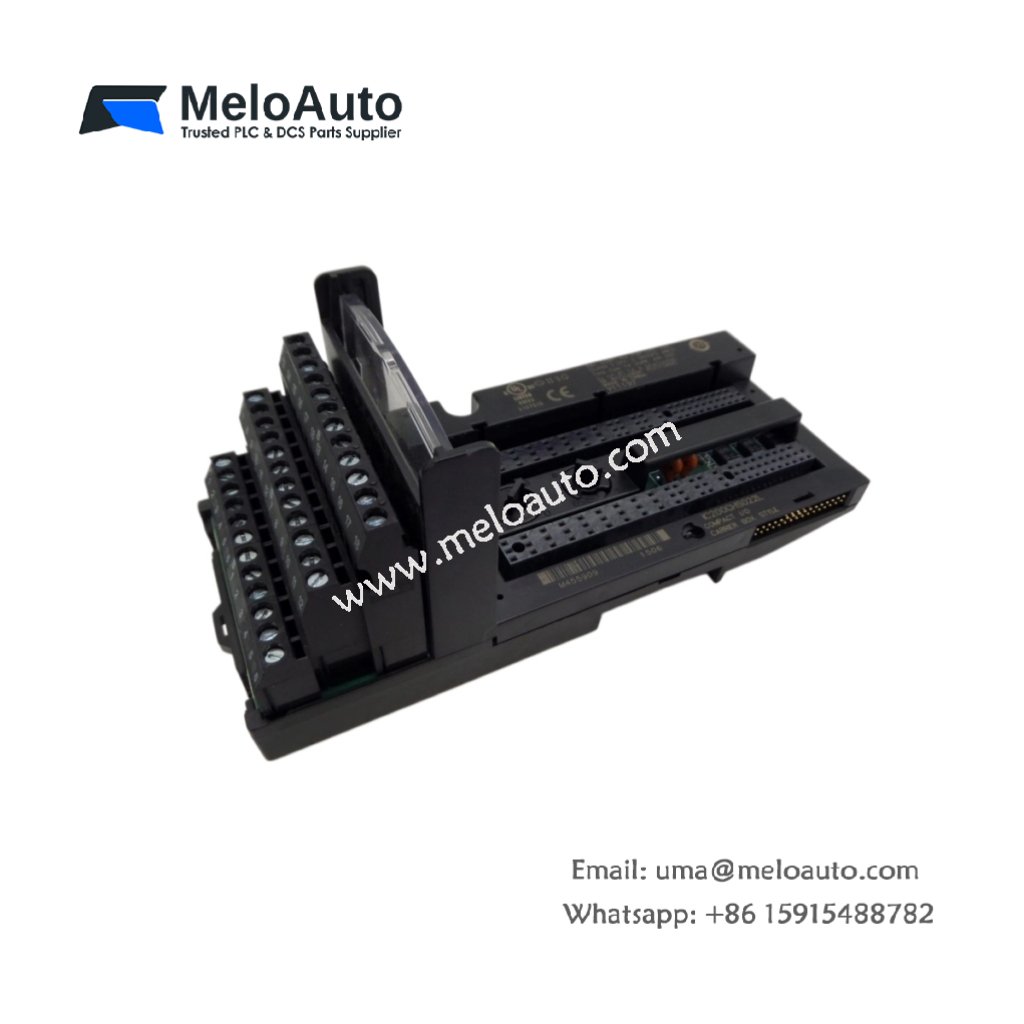

GE IC200CHS022L I/O Carrier | VersaMax Compact

The IC200CHS022L houses VersaMax I/O modules in a compact standalone enclosure. This carrier provides mechanical support and electrical connections for up to 8 modules. You can rely on it for distributed I/O applications in tight cabinet spaces.

Key Technical Parameters

The table below lists all essential technical specifications for this compact I/O carrier.

Specification	Details
Part Number	IC200CHS022L
Product Type	Compact Box-Style I/O Carrier
Compatibility	GE VersaMax PLC and I/O systems
Number of I/O Slots	8 module positions
Dimensions (W x H x D)	220 mm x 90 mm x 70 mm
Weight	Approx. 0.55 kg
Enclosure Type	Box-style (standalone)
Mounting	Panel or DIN rail
Housing Material	Polycarbonate (UL94 V-0)
Protection Rating	IP20
Bus Connection	Built-in VersaMax backplane
Power Supply Interface	24V DC via terminal block
Operating Temperature	0°C to 55°C

Physical Characteristics and Installation

This compact I/O carrier weighs approximately 0.55 kg for easy mounting. Its dimensions measure 220 mm x 90 mm x 70 mm for space-saving placement. First, mount the IC200CHS022L on a panel or 35 mm DIN rail. Then, connect the 24V DC power supply to the terminal block. Finally, slide your VersaMax I/O modules into the 8 slots. The polycarbonate enclosure resists impact and meets UL94 V-0 flammability standards.

Carrier Specifications and Module Capacity

The IC200CHS022L provides 8 I/O module slots for VersaMax components. The built-in backplane carries all communication and power signals automatically. You can mix input, output, and specialty modules in any slot order. The box-style design does not require a separate rack or chassis. Consequently, this carrier reduces overall system footprint significantly.

Power Requirements and Environmental Limits

This I/O carrier requires an external 24V DC power supply for operation. The backplane distributes power to all installed modules automatically. The IC200CHS022L carries an IP20 protection rating for indoor control cabinets. The operating temperature range spans 0°C to 55°C for typical industrial environments. Use this carrier for remote I/O drops or small standalone control systems.
