Engineered for SIMATIC S5 Small-Scale Automation

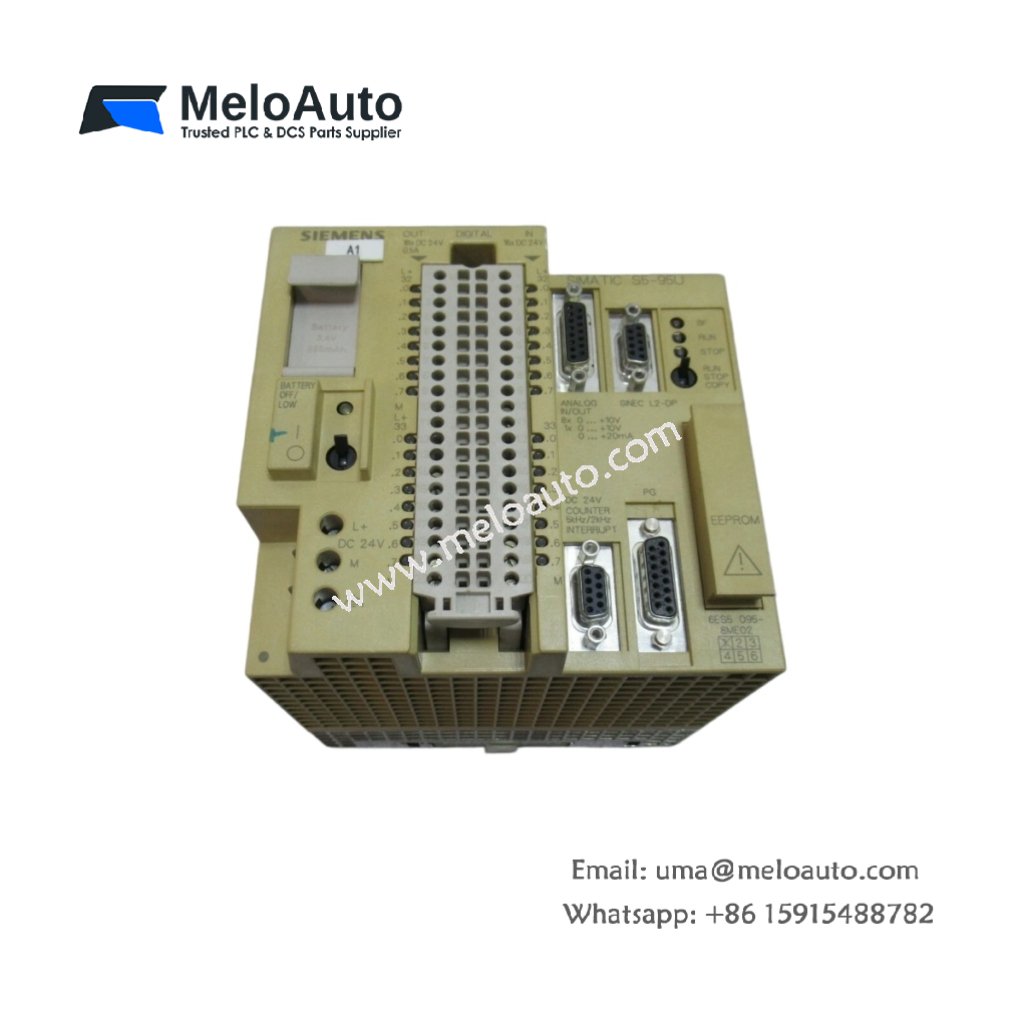

This compact unit integrates CPU, power supply, and I/O in one housing. It provides complete control functionality for the Siemens 6ES5095-8ME02 system. You will find this all-in-one controller in standalone machine applications. Unlike modular systems, this version eliminates separate component wiring. It handles up to 20 digital I/O points for small processes.
Technical Specifications & Physical Dimensions
We designed this compact unit for space-constrained installations. The table below presents all verified technical specifications.
| Parameter | Specification |
|---|---|
| Physical Dimensions (W x H x D) | 310mm x 220mm x 90mm |
| Total Weight | 3.2 kg (3200 grams) |
| Integrated Inputs | 12 digital inputs (24V DC) |
| Integrated Outputs | 8 digital outputs (24V DC, 0.5A) |
| User Memory | 8 KB RAM (battery-backed) |
| Program Memory | 4 KB EPROM (optional) |
| Operating Voltage | 24V DC (20V – 30V) |
Functional Architecture and Component Integration
This compact unit combines CPU and I/O on a single baseplate. It uses a built-in power supply for all internal circuits. You can connect sensors directly to the input terminals. Moreover, the unit includes a real-time clock for time-based functions. This component maintains date and time during power interruptions. Consequently, the controller handles time-stamped events without additional modules.
Installation and Operational Guidelines
The Siemens 6ES5095-8ME02 executes 1 KB of program in 5 milliseconds. It requires no backplane or rack for mounting. You must mount the unit on a DIN rail or panel. Always use separate cable ducts for AC and DC wiring. This practice prevents electrical noise coupling into inputs. Furthermore, the unit supports program upload and download via an external programmer. This feature allows quick commissioning and program changes.
Physical Characteristics and Environmental Limits
This compact unit has a rugged, metal base with plastic cover. Its substantial 3.2 kg weight reflects the integrated power supply design. The layout includes clearly labeled terminals for all connections. Therefore, technicians can wire the unit without special tools. The unit requires 50mm clearance above for heat dissipation. In addition, it maintains stable operation between 0°C and 55°C ambient temperature. You can store this unit safely between -40°C and 85°C.
