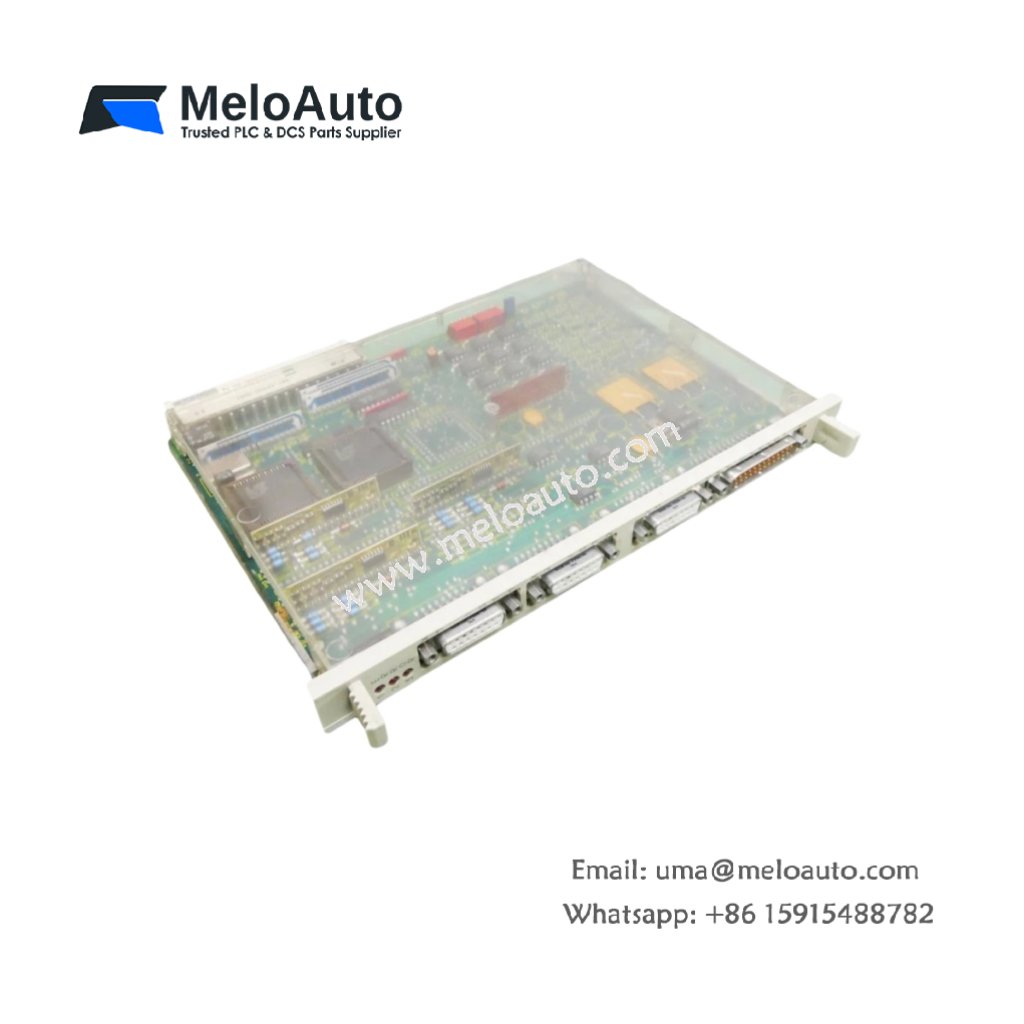

Siemens 6FM1706-3AA10 Positioning and Counter Module

Engineered for SIMATIC S5 Motion Control Tasks

This module handles both position control and high-speed counting operations. It provides accurate axis positioning for the Siemens 6FM1706-3AA10 unit. You will find this motion card in the SIMATIC S5 series. Unlike single-function modules, this version combines positioning with counting. It supports up to two independent axes for coordinated motion.

Technical Specifications & Physical Dimensions

We designed this positioning module for precise industrial motion control. The table below presents all verified technical specifications.

Parameter	Specification
Physical Dimensions (W x H x D)	160mm x 125mm x 50mm
Total Weight	0.62 kg (620 grams)
Number of Axes	2 independent positioning axes
Maximum Input Frequency	100 kHz per axis
Positioning Range	32 bits (±2.1 billion steps)
Counter Resolution	16 bits (0-65535)
Input Voltage	24V DC (19V – 30V)

Functional Architecture and Axis Configuration

This module connects to incremental encoders for position feedback. It uses two independent channels for dual-axis coordination. You can configure each axis for linear or rotary positioning. Moreover, the module includes programmable acceleration and deceleration ramps. These components generate smooth motion profiles for machine axes. Consequently, the board delivers precise endpoint positioning without overshoot.

Installation and Operational Guidelines

The Siemens 6FM1706-3AA10 updates position values every 4 milliseconds. It provides 24V DC outputs for drive enable signals. You must use shielded twisted-pair cables for encoder connections. Always connect the shield drain wire to the ground terminal. This practice prevents counting errors from electrical interference. Furthermore, the module supports absolute or incremental positioning modes. This feature adapts to different machine startup requirements.

Physical Characteristics and Environmental Limits

This positioning module has a rugged, industrial-grade plastic housing. Its substantial 0.62 kg weight reflects the dual-axis processing power. The layout follows Siemens standard S5 module specifications. Therefore, it fits securely into any SIMATIC S5 rack. The module requires one slot width for installation. In addition, it maintains stable operation between 0°C and 60°C ambient temperature. You can store this unit safely between -40°C and 85°C.
