Bently Nevada 330104-00-13-10-02-00

Product Overview

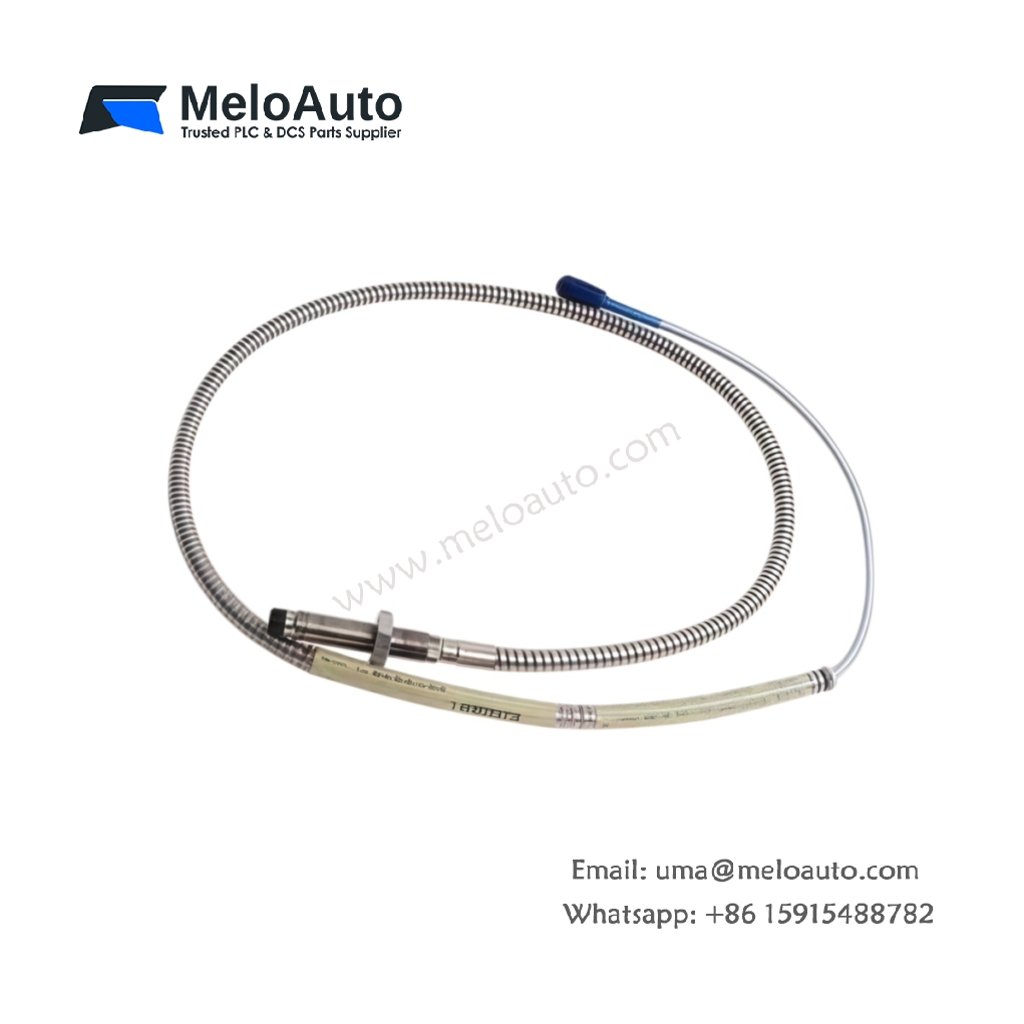

The 330104-00-13-10-02-00 belongs to the Bently Nevada 3300 XL series of 8 mm proximity probes. This sensor delivers non-contact displacement and vibration measurements on rotating machinery. Consequently, engineers rely on it for radial position, axial thrust, and keyphasor monitoring.

Technical Specifications

Parameter	Value
Probe Tip Diameter	8 mm
Total Length	1.0 meter (probe plus cable)
Weight	Approximately 250 g
Connector Type	ClickLoc coaxial connector
Cable Type	75 Ω triaxial, FEP insulated
Operating Temperature	-35°C to +177°C
Storage Temperature	-51°C to +177°C
Linear Range	2 mm (80 mils)
Recommended Gap	-10 V DC (about 1.27 mm)
Frequency Response	0 to 10 kHz
Tip Material	Polyphenylene sulfide (PPS)
Case Material	Stainless steel
Mounting Thread	3/8-24 UNF
Minimum Target Size	45 mm

Construction and Materials

The probe tip uses polyphenylene sulfide, which resists abrasion and chemical exposure. Meanwhile, the stainless steel body offers rugged protection during continuous duty. The integral cable ends in a ClickLoc connector, so technicians achieve fast mating without special tools.

Interface and System Compatibility

This probe pairs with 3300 XL extension cables and Proximitor sensors. Additionally, its 75 Ω impedance maintains signal fidelity across the entire measurement chain. Therefore, readings stay stable even when cable lengths differ between installations.

Installation Guidelines

A target measuring at least 45 mm wide ensures complete linear range coverage. Furthermore, technicians must observe side clearance and cable bend radius limits. Correct gap voltage adjustment directly influences measurement accuracy, so verify it after every mounting change.
