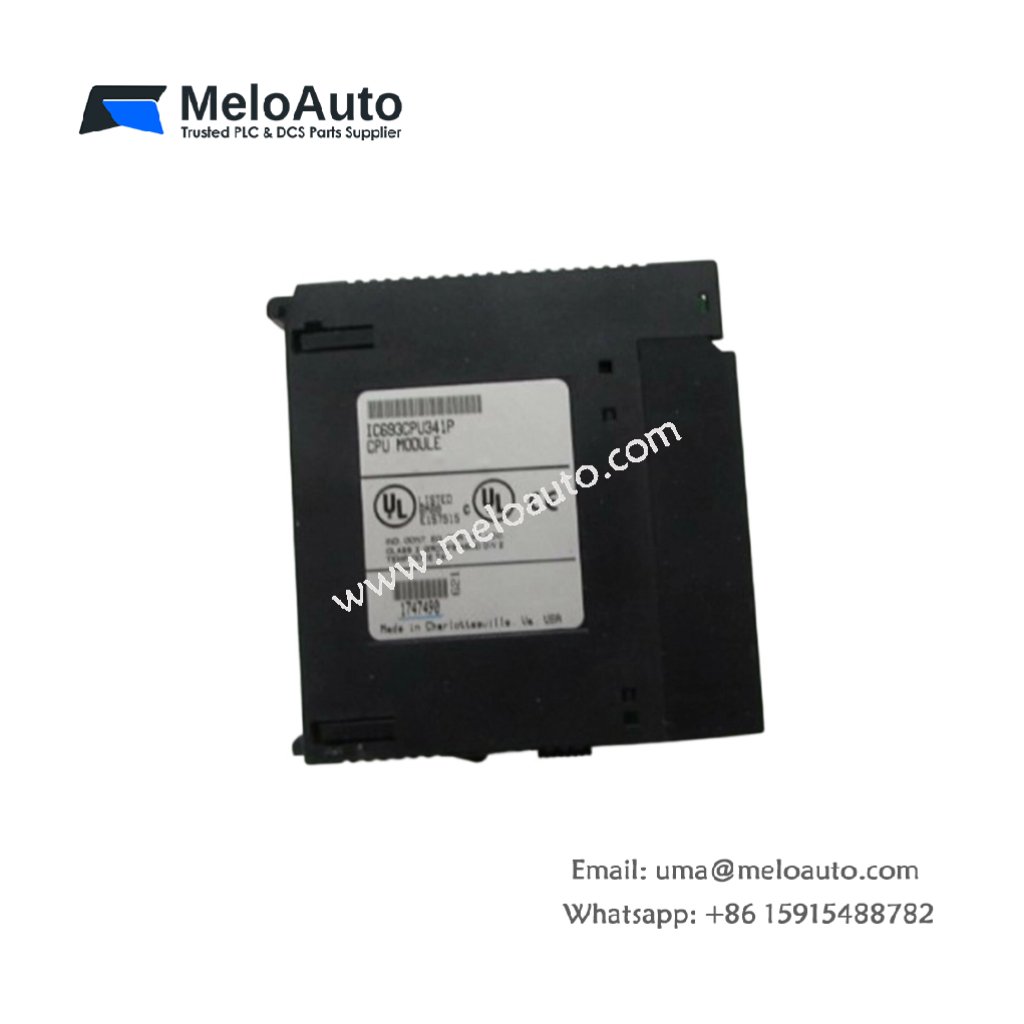

GE IC693CPU341P CPU Module | Series 90-30 128KB RAM

The IC693CPU341P serves as the central processor for GE Series 90-30 PLC systems. This CPU module executes user logic and manages all I/O operations. You can rely on it for high-performance automation tasks in industrial environments.

Key Technical Parameters

The table below lists all essential technical specifications for this CPU module.

Specification	Details
Part Number	IC693CPU341P
Product Type	CPU Module
Compatibility	GE Series 90-30 PLC systems
Processor Type	32-bit microcontroller
Program Memory	128 KB CMOS RAM
Data Memory	32 KB retentive memory
Memory Backup	Lithium battery (integrated)
Battery Life	5 years typical
Digital I/O Capacity	4096 points maximum
Analog I/O Capacity	256 channels
Scan Speed	0.4 ms per 1K logic
Dimensions (W x H x D)	140 mm x 110 mm x 55 mm
Weight	Approx. 0.60 kg
Communication Ports	2 x RS-232, 1 x RS-485, 1 x Ethernet
Power Supply	5V DC from backplane
Current Consumption	700 mA
Operating Temperature	0°C to 55°C

Physical Characteristics and Installation

This CPU module weighs approximately 0.60 kg for standard rack mounting. Its dimensions measure 140 mm x 110 mm x 55 mm for Series 90-30 chassis. First, slide the IC693CPU341P into the leftmost rack slot. Then, secure the module using the top and bottom locking tabs. Finally, connect your programming device to any communication port. LED indicators on the front show run, stop, and fault status.

Memory Specifications and Backup

The IC693CPU341P integrates 128 KB of CMOS RAM for user program storage. Data memory provides 32 KB of retentive memory for critical variables. A lithium battery maintains both memories during power-down periods. The battery life reaches 5 years under normal conditions. Consequently, your program remains safe for extended equipment shutdowns.
