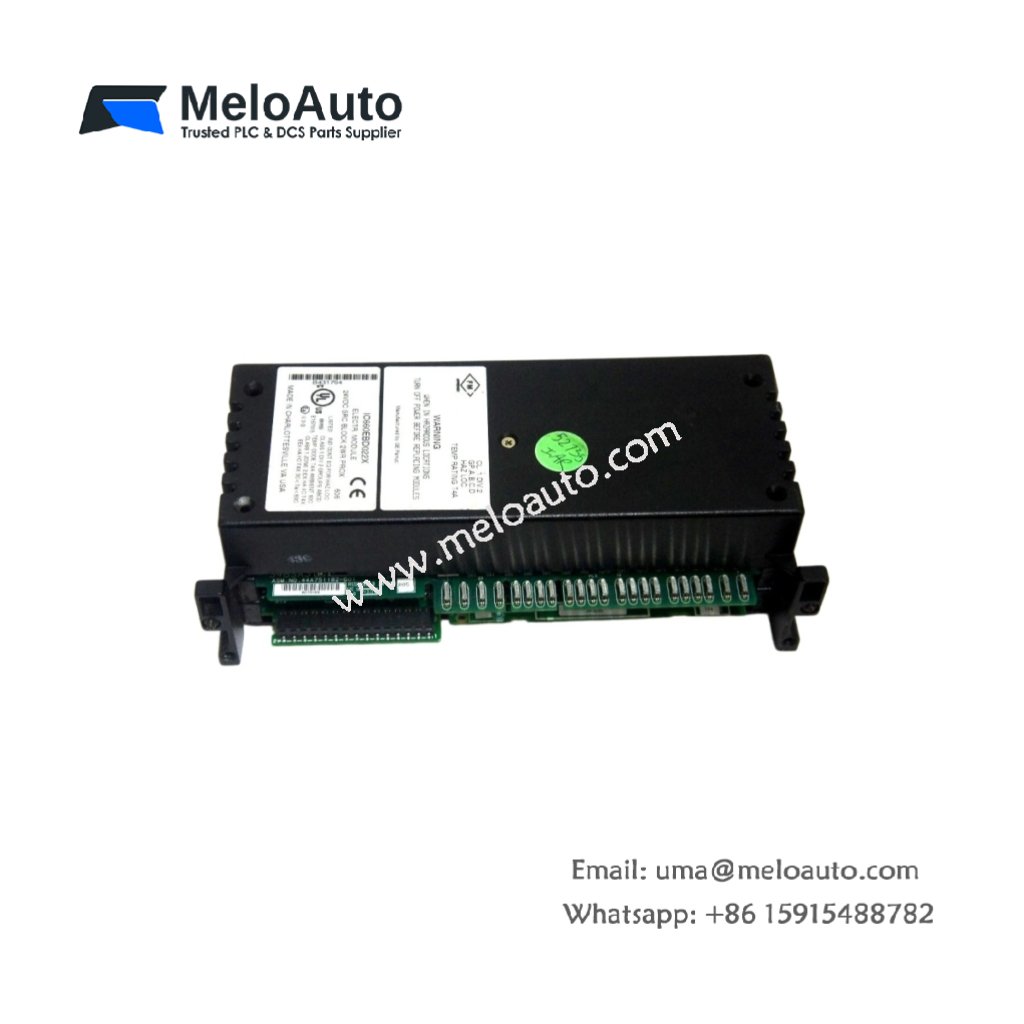

GE IC660EBD022 Electronic Source Module

The IC660EBD022 provides discrete input functions for GE Genius I/O systems. This module monitors 16 field circuits and reports their status to the controller. You can rely on it for reliable signal detection in distributed automation networks.

Key Technical Parameters

The table below lists all essential technical specifications for this electronic source module.

Specification	Details
Part Number	IC660EBD022
Product Type	Electronic Source Module
Compatibility	GE Genius I/O systems
Number of Circuits	16 input circuits
Nominal Voltage	24V DC
Input Voltage Range	18V to 30V DC
Input Current	7 mA per circuit (typical)
Input Impedance	3.4 kΩ
Isolation	Optocoupler (circuit to bus)
Response Time	2 ms typical
Dimensions (W x H x D)	230 mm x 150 mm x 40 mm
Weight	Approx. 0.72 kg
Terminal Type	Screw terminal block
Communication	Genius LAN (built-in)
Power Supply	24V DC external
Current Consumption	150 mA (logic) + 200 mA (field)
Operating Temperature	0°C to 55°C

Physical Characteristics and Installation

This electronic source module weighs approximately 0.72 kg for secure mounting. Its dimensions measure 230 mm x 150 mm x 40 mm for Genius I/O blocks. First, mount the IC660EBD022 on a DIN rail or panel. Then, connect your sensors to the screw terminals. Finally, attach the Genius LAN cable to the communication port. LED indicators on the front show power and circuit status.

Input Specifications and Signal Detection

The IC660EBD022 provides 16 input circuits for discrete field signals. Each circuit accepts 24V DC nominal signals from switches and sensors. The module draws 7 mA per active circuit for reliable detection. Input impedance measures 3.4 kΩ for proper signal loading. Optocouplers isolate every circuit from the internal communication bus. Consequently, this design protects the network from electrical noise.

Communication and Power Requirements

This module includes a built-in Genius LAN interface for network connectivity. The IC660EBD022 communicates directly with the Genius bus controller. The response time measures 2 ms for fast signal updates. The module requires an external 24V DC power supply for operation. The logic circuits draw 150 mA while field circuits draw 200 mA. Use this module for distributed I/O in Genius systems.
