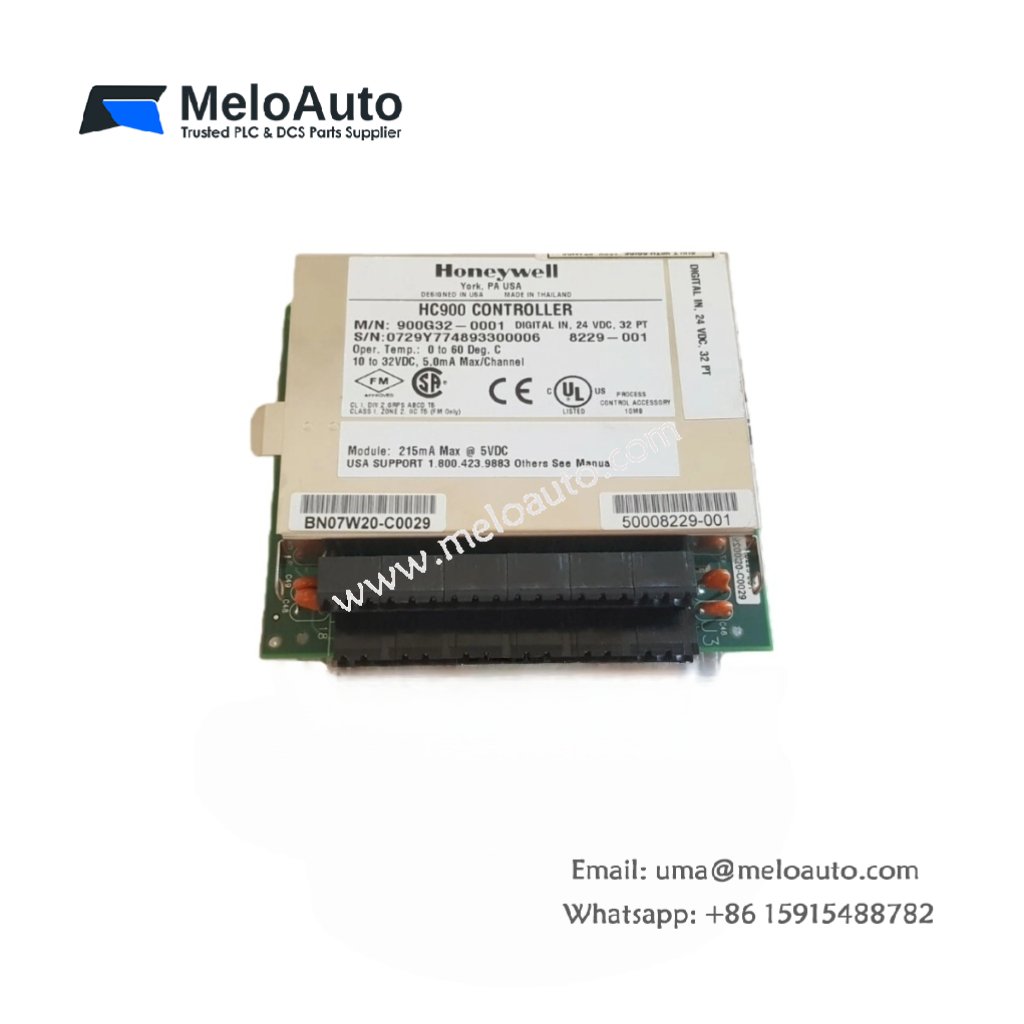

Honeywell 900G32-0001 32-Point Digital Input Module

Overview

The Honeywell 900G32-0001 is a 32-point digital input module designed specifically for the HC900 Hybrid Controller Series. This module captures discrete DC signals from various field devices such as pushbuttons, limit switches, and sensors. Therefore, it ensures highly efficient data processing and precise control, which are essential for industrial automation and process control applications.

Technical Specifications

Specification	Details
Model Number	900G32-0001
Series	HC900 ControlEdge
Input Channels	32 (divided into two groups of 16)
Input Type	DC voltage (sinking)
Input Voltage Range	10-32 VDC
Input Impedance	6.9 kΩ nominal
Input Current	1.7 mA @ 12 VDC, 3.5 mA @ 24 VDC
Response Time	5 ms max (ON to OFF and OFF to ON)
Galvanic Isolation	Between input groups and system
Dimensions	270 x 201 x 150 mm
Weight	4.8 kg
Operating Temperature	-40°C to +70°C
Storage Temperature	-55°C to +85°C
Humidity Range	0-95% RH, non-condensing
Power Supply Loading	24V: 8 mA, 5V: 215 mA max
Warranty	12 months
Country of Origin	USA

Key Features

High-Density Input: The 900G32-0001 provides 32 discrete input channels, enabling it to handle a large volume of signals from field devices. This capability makes it suitable for a wide range of applications.
Wide Voltage Range: Supporting an input voltage range of 10-32 VDC, it offers broad compatibility with a variety of devices. As a result, this module can be used in diverse industrial environments.
Fast Response Time: With a 5 ms response time, the module provides quick transitions between ON and OFF states, which is crucial for applications that require real-time data processing. Thus, it ensures minimal delay in system responses.
Galvanic Isolation: The 900G32-0001 features galvanic isolation between input groups, which helps protect the system from electrical interference. This feature enhances the overall reliability and safety of the system.
Durable Construction: Designed to withstand harsh industrial conditions, this module operates in temperatures ranging from -40°C to +70°C. In addition, its robust build ensures long-term durability.
Diagnostic LEDs: The module includes diagnostic LEDs for each input channel. These LEDs provide real-time status updates, allowing users to monitor system performance and quickly identify potential issues.

Applications

Industrial Automation: The 900G32-0001 is ideal for monitoring sensors, switches, and other field devices. By integrating it into automation systems, users can achieve high levels of precision and control.
Building Automation: The module is also suitable for controlling systems such as HVAC, lighting, and security. With its flexibility, it plays a key role in optimizing building management and operational efficiency.
Process Control: In industries such as chemical processing and power generation, the 900G32-0001 offers reliable performance, ensuring accurate monitoring and regulation of various processes.

Additional Features

Modular Design: Its modular design makes the 900G32-0001 easy to integrate into different industrial control systems. Moreover, this flexibility enables customization to suit specific needs.
Flexible Configuration: The controller allows for logic inversion, providing users with the ability to adapt the module’s behavior according to specific requirements.
Reliable Performance: Built for long-term operation, the 900G32-0001 delivers consistent performance even in demanding environments. As a result, it is an excellent choice for mission-critical applications.
User-Friendly Monitoring: Equipped with LED indicators for each input, the module simplifies monitoring and troubleshooting. This feature helps users maintain system efficiency with minimal effort.
