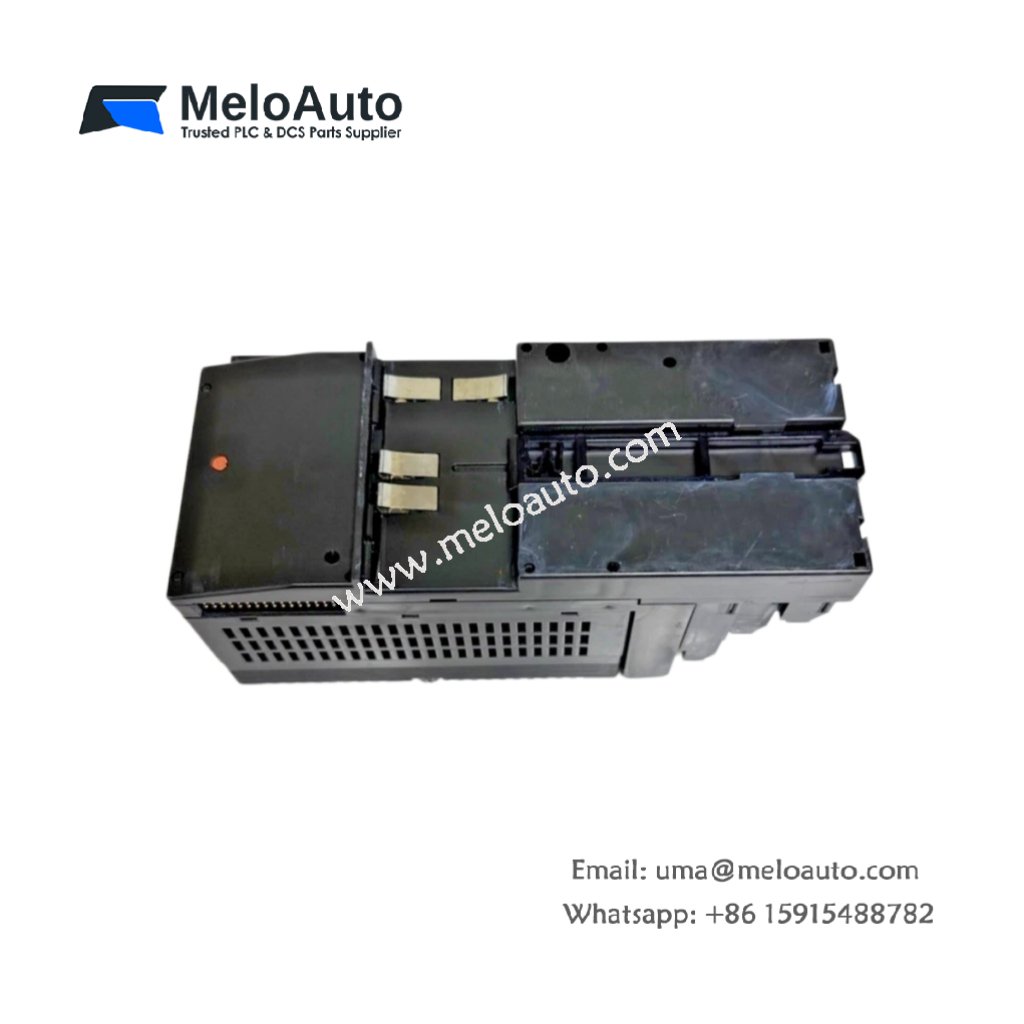

GE IC200MDL330B | Discrete Output Module

The GE IC200MDL330B provides reliable discrete output control for the VersaMax automation platform. This output module features 16 discrete output channels for driving actuators and indicators. It delivers 24 V DC sinking (NPN) outputs with 0.5 A per channel. Weighing only 0.15 kg, the GE IC200MDL330B fits into any standard VersaMax I/O rack. Its dimensions measure 110 mm x 45 mm x 55 mm.

Output Specifications and Channel Features

The GE IC200MDL330B delivers 24 V DC sinking (NPN) outputs for solenoids and pilot lights. Each output channel provides 0.5 A (500 mA) of continuous current for small loads. The module groups outputs into two groups of eight channels for simplified wiring. Moreover, the GE IC200MDL330B includes built-in short-circuit protection on every output channel. Consequently, it protects itself and your field devices during fault conditions.

Protection Features and Energy Storage

The GE IC200MDL330B features over-temperature shutdown to prevent damage from overloads. This module also includes transient voltage suppression for enhanced reliability. It contains no internal battery for complete maintenance-free operation. The GE IC200MDL330B draws 120 mA from the 5 V DC backplane power supply. Additionally, it consumes 80 mA from the external 24 V DC field power supply. Therefore, you never need to replace batteries or worry about data loss.

Technical Specifications Table

Below are the complete technical parameters for engineers and procurement teams:

Parameter	Specification
Full Product Name	GE IC200MDL330B
Product Category	VersaMax Discrete Output Module
Number of Output Channels	16
Output Type	Sinking (NPN)
Rated Output Voltage	24 V DC (20.4 V to 28.8 V DC)
Output Current per Channel	0.5 A (500 mA)
Maximum Current per Group	4 A (8 channels x 0.5 A)
Maximum Current per Module	8 A total
Channel Grouping	2 groups of 8 channels
Protection Features	Short-circuit, over-temperature, transient suppression
Protection Reset	Automatic after fault removal
Output Response Time (ON)	< 1 ms
Output Response Time (OFF)	< 1 ms
Maximum Switching Frequency	500 Hz (resistive load)
Current Consumption (5V DC)	120 mA from backplane
Current Consumption (24V DC)	80 mA external field supply
Power Dissipation	2.5 W maximum
Energy Storage	No battery (decoupling capacitors only)
Number of Components	1 main PCB + 16 MOSFETs + 1 terminal block + housing
Net Weight	0.15 kg (150 grams)
Gross Weight (packaged)	230 grams
Dimensions (H x W x D)	110 mm x 45 mm x 55 mm
Wire Size (Terminal)	AWG 24 to AWG 14 (0.2 mm² to 2.5 mm²)
LED Indicators	16 (green, one per channel) + power LED
Operating Temperature	0°C to +60°C
Storage Temperature	-40°C to +85°C
Degree of Protection	IP20
Certifications	CE, UL 508, CSA
Configuration Software	VersaPro, Machine Edition Logic Developer

Connector and Installation Details

The GE IC200MDL330B uses a removable screw terminal block for all field wiring. This terminal block accepts wire sizes from AWG 24 to AWG 14 for flexible cabling. The module requires an external 24 V DC power supply for output operation. Connect the 24 V DC positive to the V+ terminal and the negative to the V- terminal. The GE IC200MDL330B suits LED indicators, small relays, solenoid valves, and contactors. It works perfectly for packaging machines, conveyors, and material handling systems. Thus, this discrete output module delivers reliable control for space-constrained industrial cabinets.
