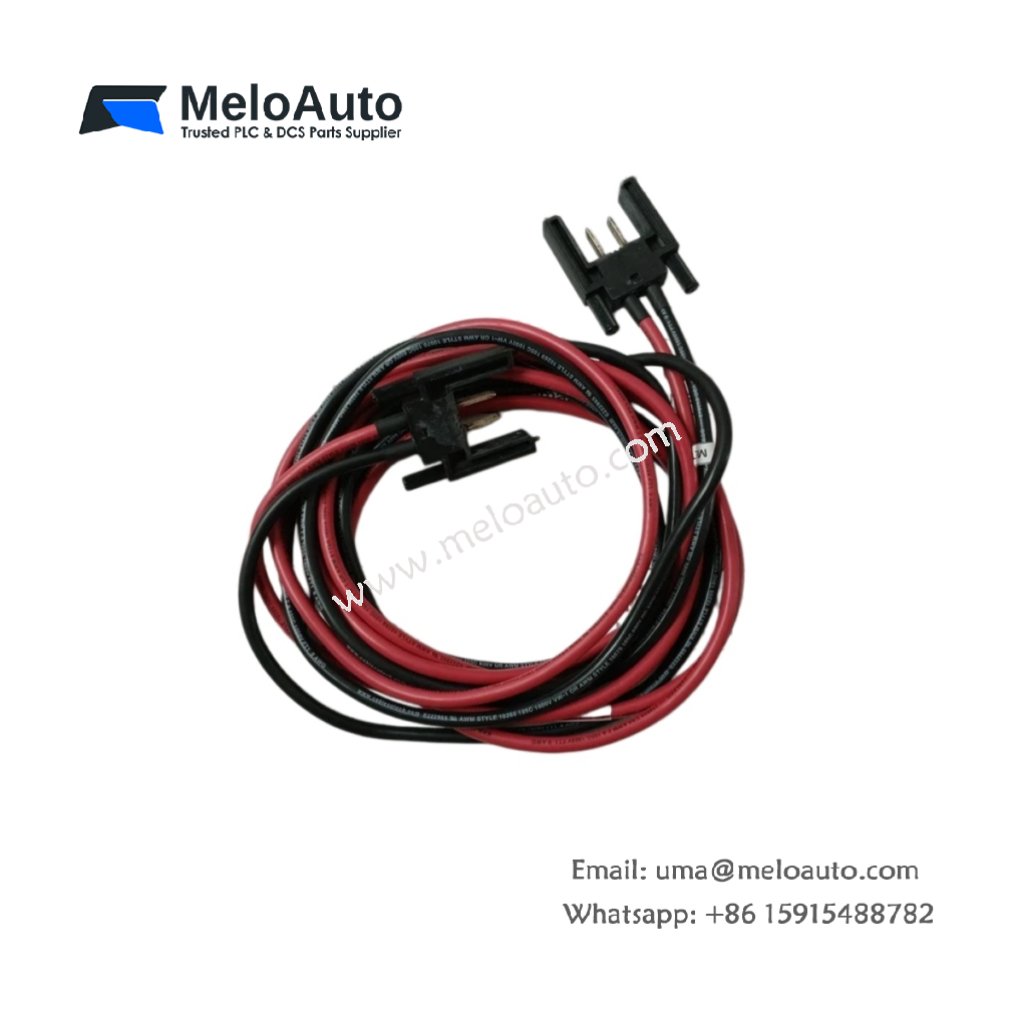

Honeywell FS-PDC-MBMB-1 Power Cable

This power distribution cable links multiple I/O modules to a single power source. It simplifies wiring within Honeywell Experion control cabinets. You will use this cable for daisy-chaining field devices.

Key Technical Specifications

The FS-PDC-MBMB-1 features a standard length of 1 meter between connectors. Its 18 AWG copper conductors handle up to 10A of continuous current. The cable also includes a shielded jacket for electromagnetic interference rejection.

Parameter	Technical Data
Product Type	Power Distribution Cable Assembly
Cable Length	1.0 meter (39.37 inches)
Connector Type 1	6-pin male mini-DIN
Connector Type 2	6-pin male mini-DIN
Conductor Gauge	18 AWG stranded copper
Number of Conductors	6 individual wires
Current Rating	10A maximum continuous
Voltage Rating	300V AC/DC
Shielding Type	Aluminum foil with drain wire
Outer Diameter	6.5 mm (0.26 inches)
Total Weight	0.12 kg (0.26 lbs)
Jacket Material	PVC, black color
Temperature Range	-20°C to 80°C
Connector Housing	Molded strain relief

Hardware Architecture and Construction

The FS-PDC-MBMB-1 uses six 18 AWG stranded copper wires inside its jacket. Stranded construction provides flexibility for tight cabinet routing. An aluminum foil shield wraps around all six conductors for noise protection. A PVC outer jacket resists oil, moisture, and mild chemicals.

Interface and Connectivity

Both ends terminate in 6-pin male mini-DIN connectors for plug-and-play installation. Each connector features a molded strain relief to prevent wire breakage. The keyed connector body prevents reverse insertion into the module port. Simply connect one end to the power supply module’s output.

Practical Installation Notes

Route this cable away from high-voltage AC lines for best noise immunity. The FS-PDC-MBMB-1 supports daisy-chaining up to four modules maximum. Do not exceed the 10A current rating across the entire chain. Secure the cable using nylon zip ties at 30 cm intervals.
