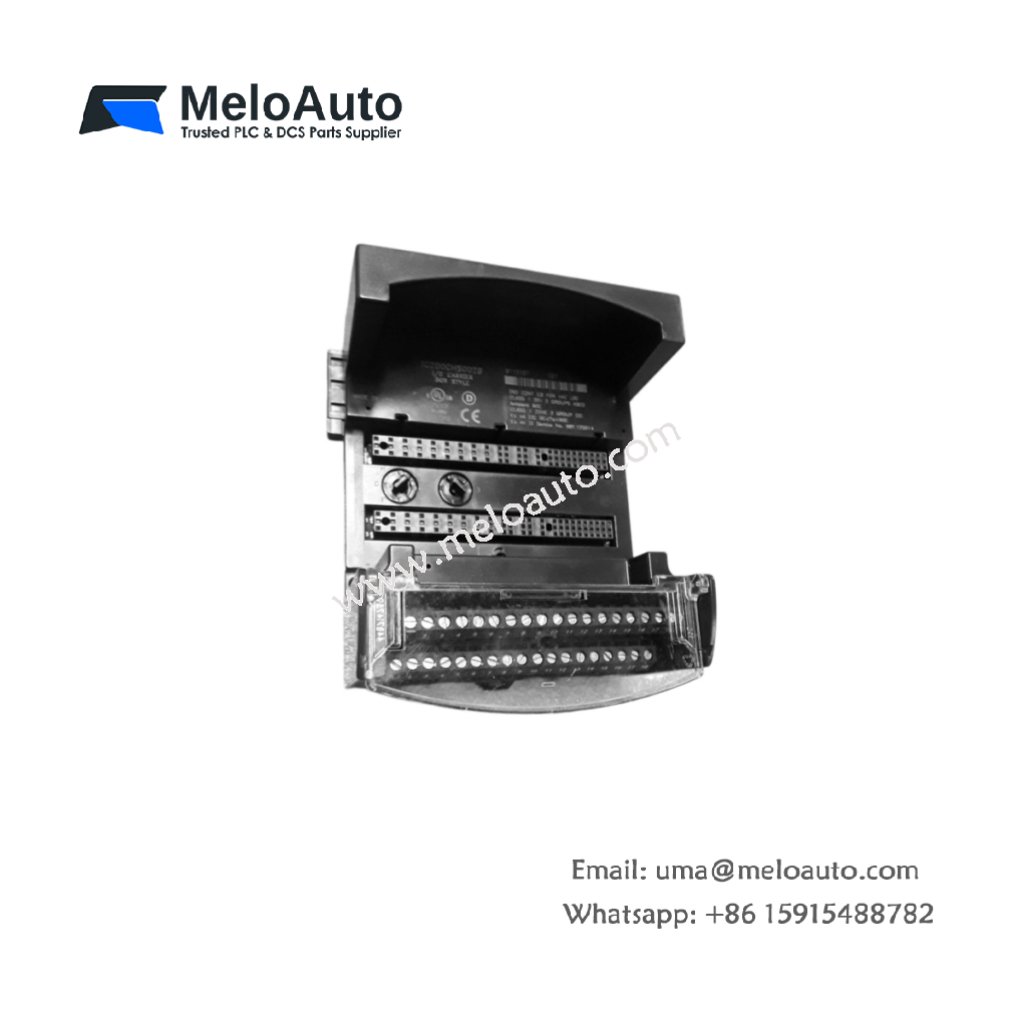

GE IC200CHS002B: Compact Box-Style I/O Carrier for VersaMax

This I/O carrier provides mechanical support and electrical connections for VersaMax modules. It houses up to ten I/O modules in a compact box-style enclosure. You can mount this carrier directly on a DIN rail or panel. The unit simplifies wiring by pre-linking module backplane signals.

Technical Specifications & Key Parameters

Detailed Feature Overview

GE IC200CHS002B accepts up to ten VersaMax I/O modules in a single enclosure. This high-density design saves valuable cabinet space for large systems. You can mix discrete, analog, and communication modules freely across all slots. The carrier distributes 5V DC and 24V DC power to each module via internal bus bars.

The unit includes a removable 52-pin connector for all field wiring. This feature allows you to pre-wire the connector before installing the carrier. Consequently, you can replace the entire carrier without disconnecting individual wires. Three integrated wiring channels organize field cables neatly. They prevent tangled wires and simplify troubleshooting.

Installation and Mounting Options

Mount the carrier on standard 35 mm DIN rail for quick installation. Alternatively, use four M5 screws for panel mounting in high-vibration environments. The carrier weighs 1.6 kg, providing stable support for fully loaded modules. An M4 grounding stud connects to the cabinet earth bus bar. This connection ensures proper noise immunity for sensitive analog signals.

Power Distribution and Environmental Limits

The carrier backplane supplies up to 2.0 A at 5V DC for logic circuits. It also provides 0.5 A at 24V DC for field devices. Each module draws its power through the internal bus bars. The IP20 enclosure protects against fingers but not water ingress. Operating temperature ranges from 0°C to 60°C reliably. Keep humidity below 95% without condensation for long life. The carrier contains no active electronic components or energy storage devices.
