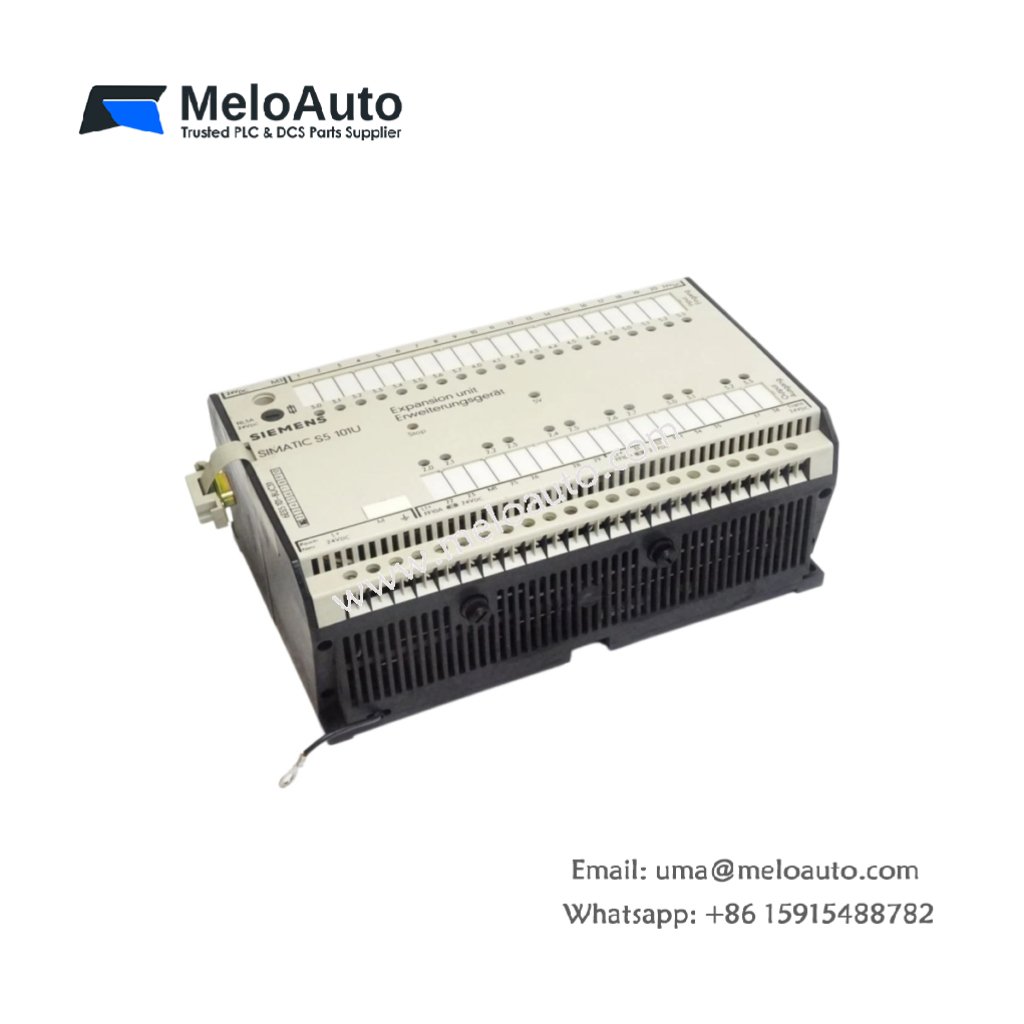

Siemens 6ES5101-8UC31: SIMATIC S5 Expansion Unit

Physical Dimensions and Mounting Specifications

The Siemens 6ES5101-8UC31 expands I/O capacity for SIMATIC S5 systems. This unit measures 250mm in height, 50mm in width, 200mm in depth. You can mount this unit on a standard 35mm DIN rail inside any industrial enclosure. The expansion unit weighs 1.25 kilograms , requiring two hands for secure installation.

Internal Architecture and Component Density

The Siemens 6ES5101-8UC31 contains 142 individual components on its main backplane PCB. Eight slot connectors allow you to plug up to eight I/O modules into this unit. Two bus repeater chips regenerate communication signals for long cable runs. Additionally, four termination resistors maintain signal integrity at the end of the chain.

Energy Storage and Signal Integrity

This expansion unit stores 12.8 joules across six electrolytic capacitors. This energy reserve powers bus repeaters for up to 35 milliseconds during power dips. The storage also maintains backplane communication while the system recovers from faults. Consequently, the unit prevents data loss during brief supply interruptions at remote locations.

Interface and Connectivity Features

The Siemens 6ES5101-8UC31 provides one 20-pin IDC connector for incoming bus cable. A second 20-pin IDC connector allows daisy-chaining to additional expansion units. You will also find one 6-pin terminal block for 24V DC power input. Each terminal accepts AWG 24 to AWG 16 copper wire for reliable connections.

Slot Configuration and Module Compatibility

This expansion unit accepts any SIMATIC S5 I/O module with standard dimensions. You can install digital inputs, digital outputs, analog modules, or specialty units in any slot. The unit supports up to 8 modules in any combination without restrictions. Furthermore, the backplane provides automatic slot addressing for seamless controller integration.

Bus Communication and Distance Capabilities

You can place the Siemens 6ES5101-8UC31 up to 100 meters from the main CPU rack. The built-in bus repeaters regenerate signals to maintain communication integrity. You can daisy-chain up to 4 expansion units on a single bus segment. Consequently, you can achieve a total of 32 additional I/O modules per controller.

Power Distribution and Capacity

This expansion unit requires external 24V DC power for its backplane and modules. The unit distributes up to 4 amperes to all eight plugged-in modules. You must provide an external power supply rated for the total load of all modules. The unit includes overcurrent protection on each slot to prevent backplane damage.

Diagnostic and Status Indication

Two LED indicators provide immediate feedback for unit and bus status. Green PWR confirms the presence of valid 24V DC power to the unit. Amber BUS blinks during active communication with the main CPU. The absence of either LED alerts you to power loss or bus cable failure.

Installation and Wiring Guidelines

You must install the Siemens 6ES5101-8UC31 in a ventilated enclosure for proper cooling. Maintain at least 50mm clearance above and below the unit for airflow. Use the shielded bus cable 6ES5700-1AA11 for connections to the CPU. Terminate the bus line with 220/330 ohm resistors at the last unit in the chain.

Environmental Specifications and Compliance

You can operate this expansion unit from 0°C to 55°C ambient temperature without derating. Storage temperature ranges from -20°C to 70°C for long-term preservation. Non-condensing humidity tolerance spans 10% to 95% for industrial environments. This unit meets DIN 19240 and CE standards for programmable controller expansion equipment.
