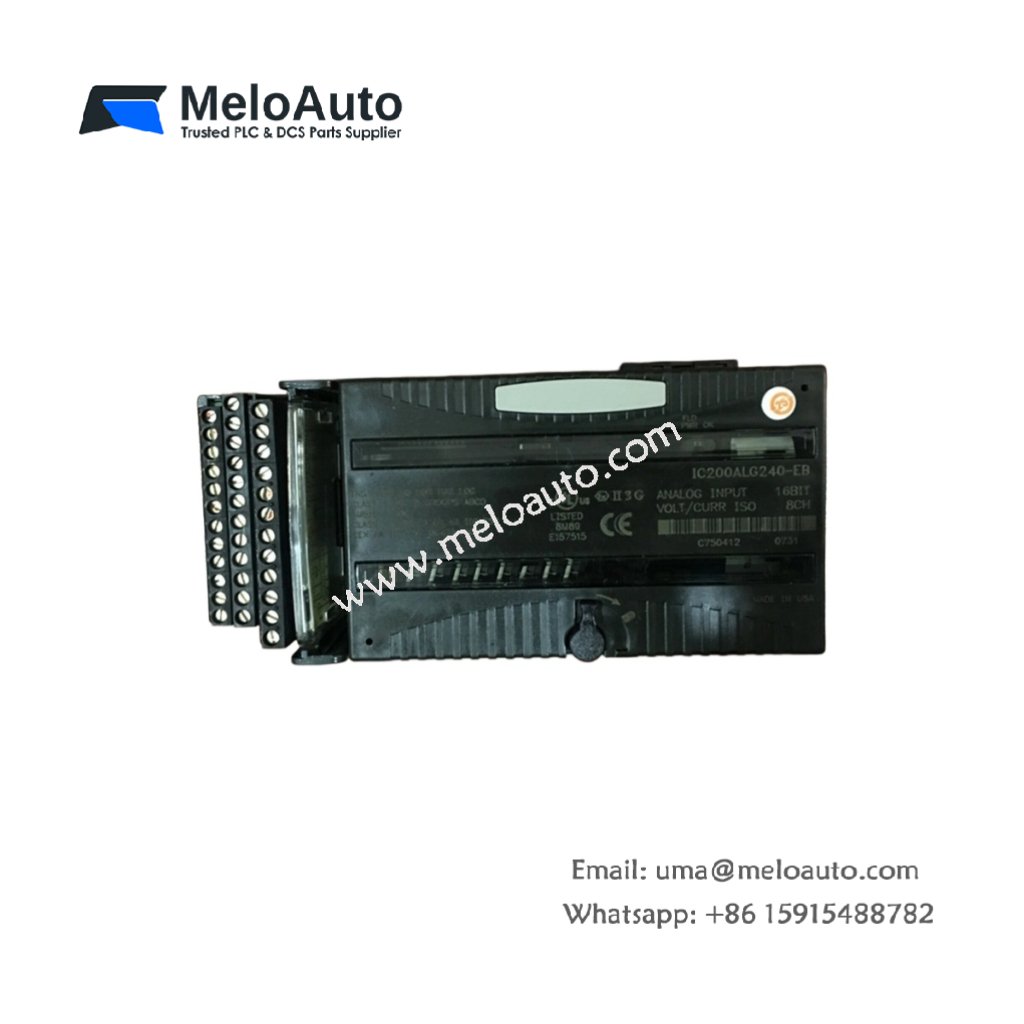

GE IC200ALG240-EB Analog Input Module

This analog input module converts field signals into digital data for the PLC. It accepts current or voltage inputs from sensors or transmitters. You can configure each channel independently for maximum flexibility. The module fits directly into any VersaMax I/O station without extra wiring.

Technical Specifications & Key Parameters

Parameter	Detail
Product Model	IC200ALG240-EB
Category	Analog Input Module
Dimensions (H x W x D)	140 mm x 35 mm x 110 mm
Weight	0.22 kg (0.49 lbs)
Number of Channels	8 differential analog inputs
Input Current Range	0–20 mA or 4–20 mA (software selectable)
Input Voltage Range	0–10 V DC or ±10 V DC (software selectable)
Resolution	12 bits / 11 bits plus sign
Energy Storage	1000 µF capacitor (holds last value for 15 ms)
Backplane Current Draw	150 mA at 5V DC
Conversion Speed	2 ms per channel (16 ms for all 8 channels)
Terminal Interface	Removable screw terminal block (18 AWG max)

Detailed Feature Overview

IC200ALG240-EB provides eight differential inputs for noise immunity. This design rejects common-mode interference from long cable runs. You can mix current and voltage signals across different channels. For example, use 4–20 mA for pressure transmitters and 0–10 V for potentiometers.

The module performs analog-to-digital conversion with 12-bit resolution. Each channel updates its value every 2 milliseconds. Consequently, the module suits fast process control applications. A 1000 µF capacitor stores enough energy for brief power interruptions. It holds the last valid input value for 15 milliseconds.

Installation and Configuration

This unit draws only 150 mA from the backplane. Its lightweight design at 0.22 kg simplifies mounting. The removable terminal block allows quick wiring changes without removing the module. Use 18 AWG stranded wire for reliable connections. Moreover, the module supports hot insertion into a running VersaMax rack.

Environmental Compliance

The module operates reliably from 0°C to 60°C ambient temperature. It withstands 5% to 95% non-condensing humidity levels. Additionally, the unit meets CE and UL industrial control standards.
