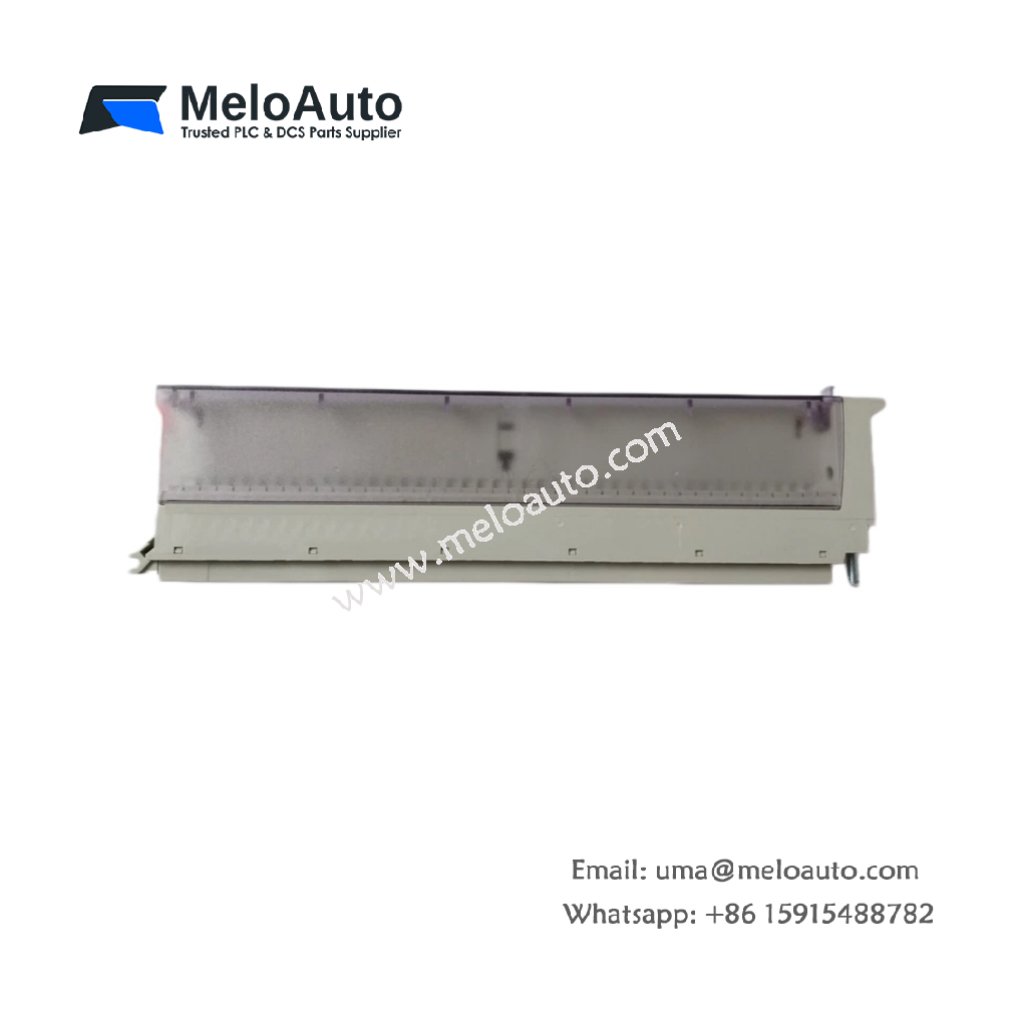

This front connector links field devices to SIMATIC S5 I/O modules. It provides 48 screw terminals for analog or digital signal wiring. You can snap it onto the module front face without special tools.
Technical Specifications
| Parameter | Details |
|---|---|
| Brand | Siemens |
| Model | Siemens 6ES5497-4UB31 |
| Category | Front Connector (SIMATIC S5 Series) |
| Dimensions (H x W x D) | 140 mm x 35 mm x 65 mm |
| Weight | 0.22 kg |
| Number of Terminals | 48 screw-type connections |
| Terminal Pitch | 5.08 mm |
| Wire Gauge Range | 0.5 mm² to 2.5 mm² (AWG 20 to 14) |
| Stripping Length | 7 mm ± 0.5 mm |
| Termination Type | Screw terminals (slot-head) |
| Internal Components | 48 metal clamps + 1 plastic housing + 1 strain relief |
| Interface Type | 48-pin male connector to module |
| Rated Voltage | 250 V AC |
| Rated Current | 2 A per pin |
| Contact Material | Tin-plated copper alloy |
| Coding Element | Removable coding key (prevents mismatching) |
| Cable Entry | Bottom or top (user-selectable) |
| Strain Relief | Integrated clamp for cable bundle |
| Operating Temperature | -25°C to 70°C |
Detailed Feature Overview
This connector includes 48 screw terminals for field wiring. Each terminal accepts wires from 0.5 to 2.5 mm² easily. The 5.08 mm pitch provides adequate spacing for reliable insulation.
A removable coding key prevents inserting the wrong connector. You can set this key to match a specific I/O module slot. Consequently, you avoid costly wiring errors during maintenance.
The integrated strain relief secures your incoming cable bundle. This feature reduces stress on individual screw terminals significantly. You can route cables from either the bottom or top side.
Installation and Compatibility
Siemens 6ES5497-4UB31 fits all S5 I/O modules with 48-pin interfaces. Push the connector straight onto the module until it locks. Use a 3.5 mm screwdriver for terminal tightening.
